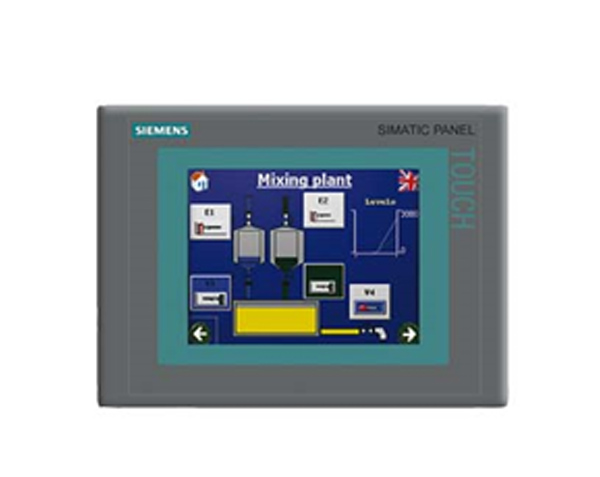

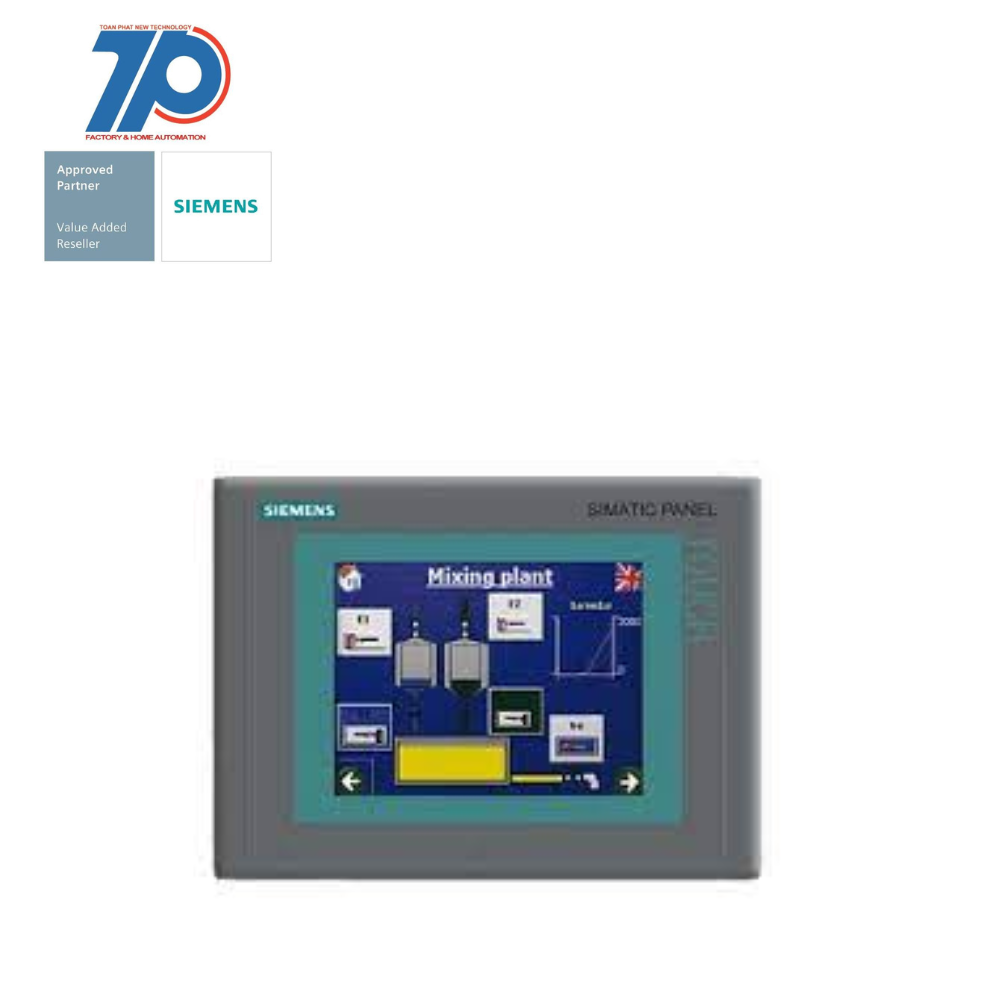

6AV6643-0AA01-1AX0 – SIMATIC TP 277 6″

10,000 5,000

Giá: Liên Hệ

Sản phẩm hiện đang có sẵn tại TPNEWTECH.
Gọi ngay cho chúng tôi để nhận báo giá và ưu đãi tốt nhất.

Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 3 - 7 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

 Hàng chính hãng SIEMENS

Freeship nội thành HCM

Gọi Báo Giá Nhanh Hỗ trợ kỹ thuật

Chi Tiết Sản Phẩm

SIMATIC TP 277 6″ Touch panel 5.7″ TFT display 4 MB configuration memory, configurable with WinCC flexible 2005 Standard

The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as required, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available to you. SIMATIC TP 277 6″ Touch panel 5.7″ TFT display 4 MB configuration memory, configurable with WinCC flexible 2005 Standard
General information
Product type designationTP277
Customer-specific configurationYes
Display
Design of displayTFT
Screen diagonal5.7 in
Color displayYes
Number of colors256
Resolution (pixels)
● Horizontal image resolution320 Pixel
● Vertical image resolution240 Pixel
Backlighting
● MTBF backlighting (at 25 °C)60 000 h
Control elements
Control elementsTouch screen
Keyboard fonts
● System keysNo
● Numeric keyboardYes
● alphanumeric keyboardYes
● hexadecimal keyboardYes
Touch operation
● Design as touch screenYes; analog, resistive
Connection type
● Type of connection for mouse/keyboard/barcode readerUSB / USB / USB
Installation type/mounting
Mounting positionvertical
Supply voltage
Type of supply voltageDC
Processor
Processor typeRISC 32 bit
Memory
Type of memoryFlash / RAM
Memory available for user data4 Mbyte
Capacity of main memory, max.64 Mbyte
Time of day
Clock
● TypeSoftware clock, synchronizable, no battery backup
● retentiveNo
● synchronizableYes
Interfaces
Interfaces/bus type1x RS 422, 1x RS 485, 1x Ethernet (RJ45)
Number of industrial Ethernet interfaces1
Number of RS 485 interfaces1
Number of RS 422 interfaces1
Number of USB interfaces1; Up to 1 GB
Multimedia card/SD card slot1x Multimedia Card slot, up to 128 MB
With software interfacesNo
Protocols
Supports protocol for PROFINET IOYes
PROFIsafeNo
PROFIBUSYes
Protocols (Ethernet)
● TCP/IPYes
Further protocols
● EtherNet/IPNo
● MODBUSYes
● other bus systemsYes
Degree and class of protection
IP (at the front)IP65
IP (rear)IP20
NEMA (front)NEMA 4x (when installed)
Standards, approvals, certificates
Suitable for safety functionsNo
Ambient conditions
Ambient temperature during operation
● min.0 °C
● max.50 °C
Ambient temperature during storage/transportation
● min.-20 °C
● max.60 °C
Relative humidity
● Operation, max.80 %
Operating systems
pre-installed operating systemWindows CE
Configuration
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes
Configuration software
● Configuration toolWinCC flexible Standard Version 2005 SP1 or higher (to be ordered separately)
● STEP 7 Basic (TIA Portal)No
● STEP 7 Professional (TIA Portal)No
● WinCC flexible CompactNo
● WinCC flexible StandardYes
● WinCC flexible AdvancedYes
● WinCC Basic (TIA Portal)No
● WinCC Comfort (TIA Portal)Yes
● WinCC Advanced (TIA Portal)Yes
● WinCC Professional (TIA Portal)Yes
Languages
Online languages
● Number of online/runtime languages16
Project languages
● Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesYes
Task plannerYes
Help systemYes
● Number of characters per info text80
Message system
● Number of alarm classes32
● Number of messages4 000
● Bit messagesYes
— Number of bit messages4 000
● Analog messagesYes
— Number of analog messages4 000
● System messages HMIYes
● System messages PLCYes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)Yes
● Lines1
● Number of characters per message80
● Number of process values per message8
● Acknowledgment groups
— Number of acknowledgement groupsYes
● Message indicatorYes
● First/last valueYes
Recipe management
● Number of recipes300
● Data records per recipe500
● Entries per data record1 000
● Recipe memory64 KB integrated Flash, expandable (using optional memory card)
Variables
● Number of variables per device2 048
● Number of variables per screen200
● Number of variables1 000
● Type Date & Time2 048
● Limit valuesYes
● MultiplexingYes
● StructuresYes
Images
● Number of configurable images500
● Permanent window/defaultYes
● Start screen configurableYes
● Image selection by PLCYes
● Image number in the PLCYes
Image objects
● Text objects10 000 text elements
● Number of I/O fields per image200
● Number of date/time fields200
● ReturnYes
● Graphics objectBit maps, icons, vector graphics
— Icons1 000
Complex image objects
● Status/controlWith SIMATIC S7
● dynamic objectsDiagrams, bar graphs, sliders, analog display, invisible buttons
— Number of objects per project1 000
— Number of curve diagrams per image10
● MethodsTrend / profile
● Bar graphs
— Number of bars per chart10
● Sliders
— Number of slides per image10
● Pointer instruments
— Number of analog indicators per image10
● Limit value linesYes
● Number of alphanumerical fields300
— alphanumeric fields per image200
● Number of numerical fields2 048
— numerical fields per image200
● Number of password fields2 048
● Number of visible switches per project200
— visible switches per image200
— hidden switches per image200
● Number of status switches per project200
— Number of status switches per image200
● Number of selector switches per project200
— Selector switches per image200
● Number of decade switches per project200
— Decade switches per image200
● Number of signal lamps per project200
— Signal lamps per image200
Attributes for dynamic objects
● Color changeYes
● X/Y movementYes
● HideYes
Lists
● Number of text lists per project500
● Number of text lists per image200
● Number of entries per text list256
● Number of graphics lists per project400
● Number of graphic lists per image200
● Number of entries per graphics list256
Archiving
● Number of archives per device20
● Number of measuring points per project20
● Number of entries per archive10 000
● Message archiveYes
● Process value archiveYes
● Archiving methods
— Sequential archiveYes
— Short-term archiveYes
● Memory locationMultiMediaCard
— EthernetYes
● Data storage format
— CSVYes
● Online evaluation
— using trend curvesYes
Filters
● cyclicYes
● ToleranceYes
● ChangeYes
Security
● Number of user groups50
● Number of user rights32
● Password export/importYes
Logging through printer
● Recording/PrintingAlarms, report (shift report), color print, hardcopy
Transfer (upload/download)
● Transfer of configurationMPI/PROFIBUS DP, USB, Ethernet, automatic transfer recognition
Process coupling
● Connection to controllerS5, S7-200, S7- 300/400, TI 505, SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), Telemecanique (ADJUST), OMRON (LINK/Multilink), Modicon (Modbus), see section on “System interfaces”
● S7-1200Yes
● S7-200Yes
— PPI (point-to-point)Yes
— PPI networkYes
— MPIYes
— PROFIBUS DPYes
— EthernetYes
● S7-300/400Yes
— MPIYes
— PROFIBUS DPYes
— PROFINETYes
● S5Yes
— serialYes
— PROFIBUS DPYes
● TI 505Yes
● Allen Bradley (DF1)Yes
● Allen Bradley (DF485)Yes
● Mitsubishi (FX)Yes
● Mitsubishi (MP4)Yes
● Telemecanique (ADJUST)Yes
● Telemecanique (Uni-Telway)Yes
● OMRON (LINK/Multilink)Yes
● Modicon (Modbus)Yes
● GE-Fanuc (SNP)Yes
Functions
● TAB sequenceYes
● Calculating functionsYes
● AnimateYes
Service tools/configuration aids
● Clean screenYes
● Touch calibrationYes
● Backup/Restore manuallyYes
● SimulationYes
● Device switchoverYes
● Delta transferYes
Expandability/openness
● Open Platform ProgramYes
Peripherals/Options
PeripheralsPrinter, barcode reader
SIMATIC HMI MM memory card: Multi Media CardYes
Additional software components loadableYes
Dimensions
Width of the housing front212 mm
Height of housing front156 mm
Mounting cutout, width197 mm
Mounting cutout, height141 mm
Overall depth45 mm
Weights
Weight (without packaging)0.78 kg
Other
free hotlineYes
last modified:05/09/2020
