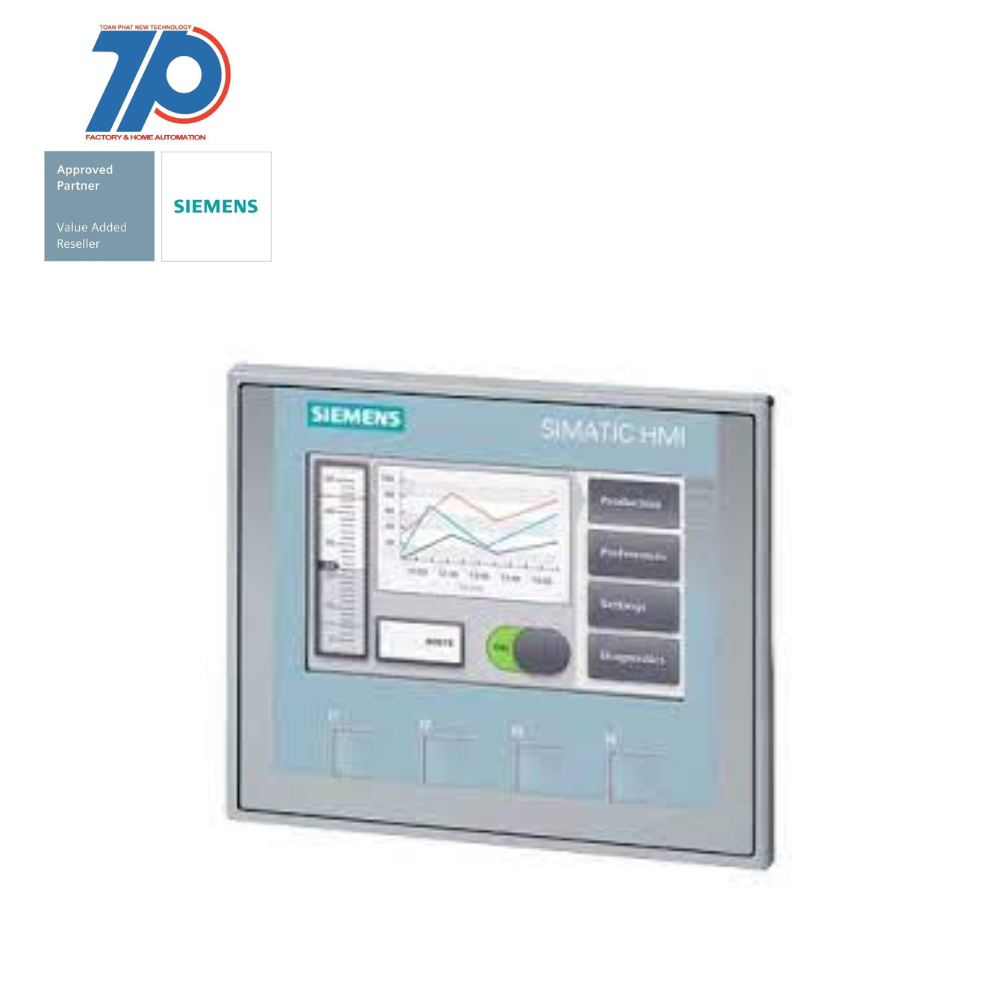

6AG1123-2DB03-2AX0 SIPLUS HMI KTP400 Màu cơ bản PN -20 … +60 °C với lớp phủ bảo vệ dựa trên 6AV2123-2DB03-0AX0 Siemens

--- Giá chưa bao gồm VAT ----

Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng  (Luôn có giá tốt khi mua số lượng nhiều)

Bảo hành 12 tháng khi mua tại TPNewtech.

Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình

-> Hãy Liên hệ ngay cho chúng tôi



Chi Tiết Sản Phẩm

SIPLUS HMI KTP400 Basic Color PN cho cấu hình cá nhân hóa.

Thông tin kỹ thuật:

  • Màn hình TFT 4″ với 65536 màu.

  • Đạt nhiệt độ hoạt động từ -20…+60 °C.

  • Hỗ trợ giao diện PROFINET.

  • Có các tùy chọn màn hình 4″, 7″, 9″ hoặc 12″ (đường chéo).

  • Tính năng điều khiển bằng cử chỉ và thao tác kết hợp nút nhấn/màn hình cảm ứng.

  • Độ phân giải cao với khả năng điều chỉnh độ sáng lên đến 100%.

  • Giao diện USB cho kết nối bàn phím, chuột hoặc máy quét mã vạch.

  • Hỗ trợ lưu trữ, sao lưu và khôi phục dữ liệu từ ổ đĩa flash USB.

  • Lớp phủ bảo vệ cho phép sử dụng trong điều kiện độ ẩm 100%, ngưng tụ và chất ăn mòn.

Lợi ích cho khách hàng:

  • Mức giá đặc biệt hấp dẫn cho người mới bắt đầu.

  • Thiết bị hoàn hảo cho nhà máy nhỏ và ứng dụng đơn giản.

  • Khả năng lắp đặt linh hoạt và dễ dàng điều chỉnh độ sáng.

  • Giao diện người dùng tiên tiến với nhiều tùy chọn đa dạng.

  • Được thiết kế đặc biệt cho các nhiệm vụ trong môi trường khắc nghiệt.

Additional Information

Support

Technical Data

Manuals / Links

####

FEATUREVALUE

Number of HW-interfaces RS-4850
Rail mounting possiblefalse
Number of system buttons0
Wall mounting/direct mountingfalse
Supporting protocol for INTERBUSfalse
With recipestrue
Width of the front141 mm
Supporting protocol for DeviceNet Safetyfalse
Operating temperature-20 °C
Supporting protocol for PROFIBUSfalse
Supporting protocol for PROFIsafefalse
Operating temperature60 °C
Supporting protocol for LONfalse
Number of online languages10
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Degree of protection (IP), front sideIP65
Radio standard GPRSfalse
Radio standard Bluetoothfalse
Height of the front116 mm
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Number of pixels, vertical272
Additional software components, loadablefalse
Radio standard WLAN 802.11false
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Number of function buttons, programmable4
Supporting protocol for EtherNet/IPtrue
With numeric keyboardtrue
Supporting protocol for SERCOSfalse
Radio standard UMTSfalse
Supply voltage DC19.2 V
Number of HW-interfaces USB1
Supporting protocol for KNXfalse
Supporting protocol for PROFINET IOfalse
Number of HW-interfaces wireless0
Supporting protocol for other bus systemstrue
IO link masterfalse
Number of HW-interfaces industrial Ethernet1
Number of grey-scales/blue-scales of display0
Built-in depth33 mm
With alpha numeric keyboardtrue
Number of buttons with LED0
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4220
Supporting protocol for CANfalse
Supporting protocol for TCP/IPtrue
Number of pixels, horizontal480
Number of HW-interfaces other0
Useful project memory/user memory10000 kByte
Number of HW-interfaces parallel0
Process default value (input) possibletrue
Supporting protocol for SUCONETfalse
Colour displaytrue
Supply voltage DC28.8 V
Number of password levels50
Supporting protocol for PROFINET CBAfalse
Process value representation (output) possibletrue
Supporting protocol for Data-Highwayfalse
With message indicationtrue
With SW interfacesfalse
With printer outputfalse
Radio standard GSMfalse
Number of colours of the display65536
Number of interfaces PROFINET1
Screen diagonal4.3 inch
Supporting protocol for DeviceNetfalse
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-2320

    SIPLUS HMI KTP400 Basic Color PN

    SIPLUS HMI KTP400 Basic Color PN is a robust and reliable human-machine interface panel designed for industrial applications. It is based on the 6AV2123-2DB03-0AX0 model and features a conformal coating, making it suitable for use in harsh environments with temperatures ranging from -20°C to +60°C.

    Technical Features:

    • 4″ TFT display
    • 65536 colors
    • PROFINET interface

    Commercial Benefits:

    The SIPLUS HMI KTP400 Basic Color PN is part of the SIMATIC HMI Basic Panels of the 2nd Generation. These panels are designed to provide a cost-effective solution for simple visualization tasks at the machine level. They are perfectly compatible with the SIMATIC S7-1200 Basic Controllers, making them an ideal choice for small machines and plants.

    The Basic Panels come in different sizes, including 4″, 7″, 9″, and 12″ (diagonal) widescreen displays. They offer combined pushbutton/touch-screen operation and support gesture control. The high-resolution displays with 64,000 colors can be dimmed up to 100%, providing flexibility in various lighting conditions.

    The operator interface of the SIPLUS HMI KTP400 Basic Color PN has been improved for enhanced usability. It offers new controls and graphics, allowing for a diverse range of options. The panel also features a USB interface for easy connection of peripherals such as a keyboard, mouse, or barcode scanner. It supports simple archiving, backup, and restoration of data directly from a USB flash drive.

    For demanding applications in harsh ambient conditions, SIPLUS extreme devices are recommended. The conformal coating of the SIPLUS HMI KTP400 Basic Color PN protects the internal components from 100% relative humidity, condensation, corrosive substances, and gases.

Trọng lượng0.46 kg
