Simatic DP cho cấu hình cá nhân hóa.
Thông tin kỹ thuật:

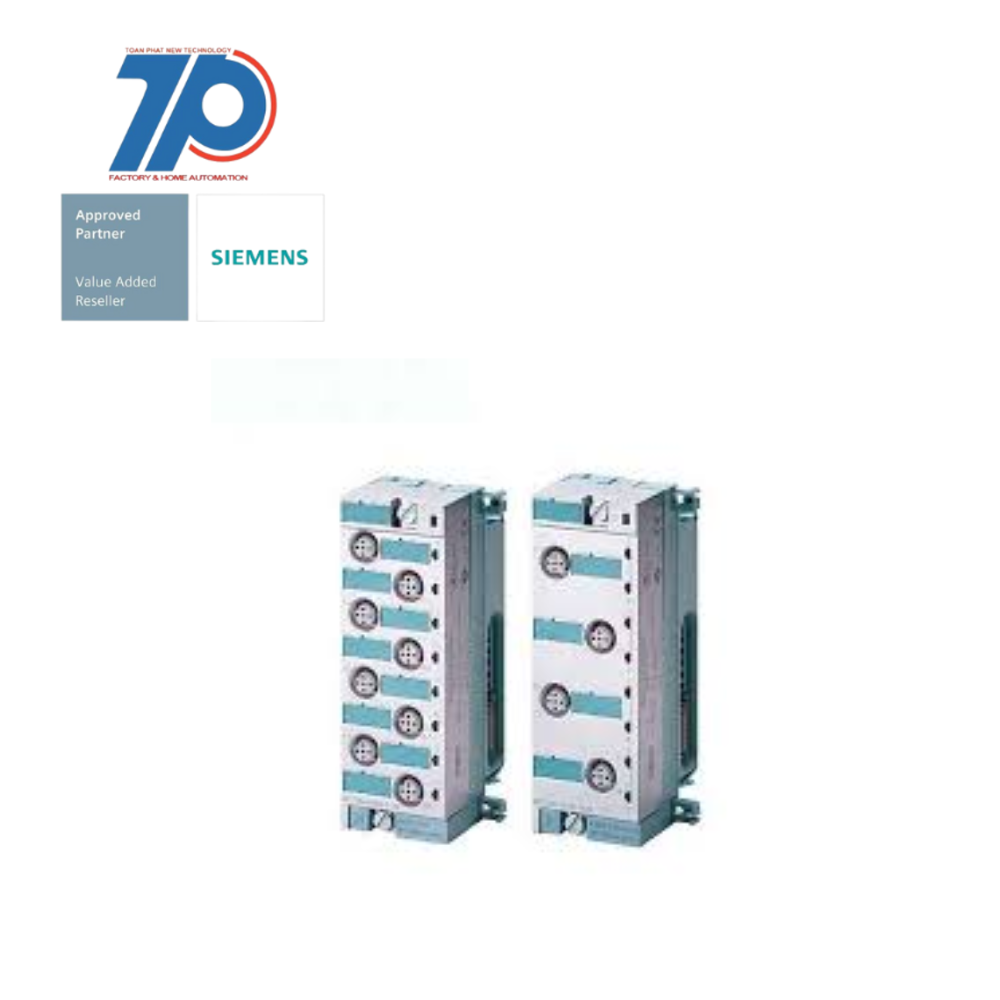

Mô-đun điện tử cho ET 200 PRO 8 DO 24 V DC, 0,5 A
Cấp độ bảo vệ IP65/67
Chức năng chẩn đoán mở rộng
Hoán đổi nóng cho phép thay thế mà không cần tắt máy
Hệ thống dây điện được giữ nguyên trong quá trình thay đổi mô-đun
Các mô-đun an toàn cho ứng dụng lên đến SIL 3 / PLe
Các giải pháp được tối ưu hóa cho điều khiển động cơ
Lợi ích cho khách hàng:
Tiết kiệm không gian và dễ cài đặt nhờ thiết kế mô-đun
Giảm thiểu thời gian ngừng hoạt động của nhà máy
Giải pháp hoàn chỉnh linh hoạt và chất lượng cao cho các ứng dụng tải trọng cơ học cao
Quản lý chất lượng liên tục, thiết lập tiêu chuẩn thị trường mới
Cung cấp nhiều loại mô-đun để đáp ứng các yêu cầu tự động hóa đa dạng
Additional Information
Support
| Technical Data
| Manuals / Links
|
####
| FEATURE | VALUE |
| Fieldbus connection over separate bus coupler possible | true |
| Number of HW-interfaces RS-232 | 0 |
| Short-circuit protection, outputs available | true |
| Wall mounting/direct mounting | true |
| Number of digital outputs | 8 |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for other bus systems | false |
| Radio standard UMTS | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Suitable for safety functions | false |
| Radio standard GSM | false |
| Supporting protocol for Data-Highway | false |
| SIL according to IEC 61508 | 2 |
| Depth | 35 mm |
| Supporting protocol for SERCOS | false |
| Digital outputs configurable | true |
| Appendant operation agent (Ex ib) | false |
| Supply voltage DC | 20.4 V |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for LON | false |
| Number of interfaces PROFINET | 0 |
| IO link master | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Type of output voltage | DC |
| Number of HW-interfaces serial TTY | 0 |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for SafetyBUS p | false |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces other | 0 |
| Output current | 0.5 A |
| Supporting protocol for PROFIBUS | false |
| Radio standard Bluetooth | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFINET IO | false |
| Radio standard GPRS | false |
| Number of HW-interfaces RS-422 | 0 |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for ASI | false |
| Permitted voltage at output | 0 V |
| Supporting protocol for CAN | false |
| System accessory | true |
| With optical interface | false |
| Rack-assembly possible | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ia) | false |
| Width | 45 mm |
| Rail mounting possible | true |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for KNX | false |
| Front built-in possible | true |
| Height | 130 mm |
| Number of HW-interfaces USB | 0 |
| Supply voltage DC | 28.8 V |
| Permitted voltage at output | 28.8 V |
| Number of HW-interfaces RS-485 | 0 |
| Supporting protocol for Modbus | false |
| Number of HW-interfaces parallel | 0 |
| Number of digital inputs | 0 |
| Supporting protocol for Foundation Fieldbus | false |
