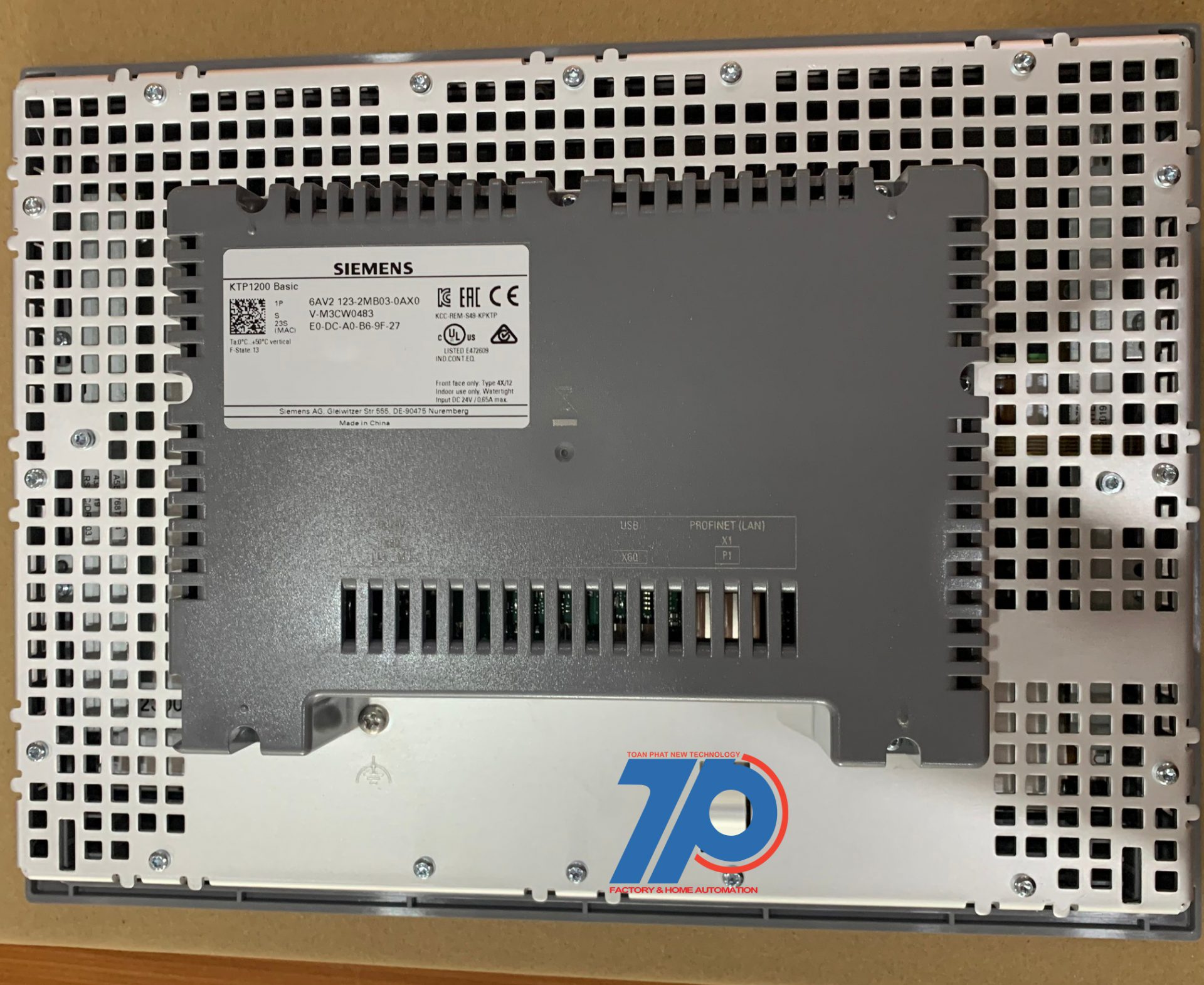

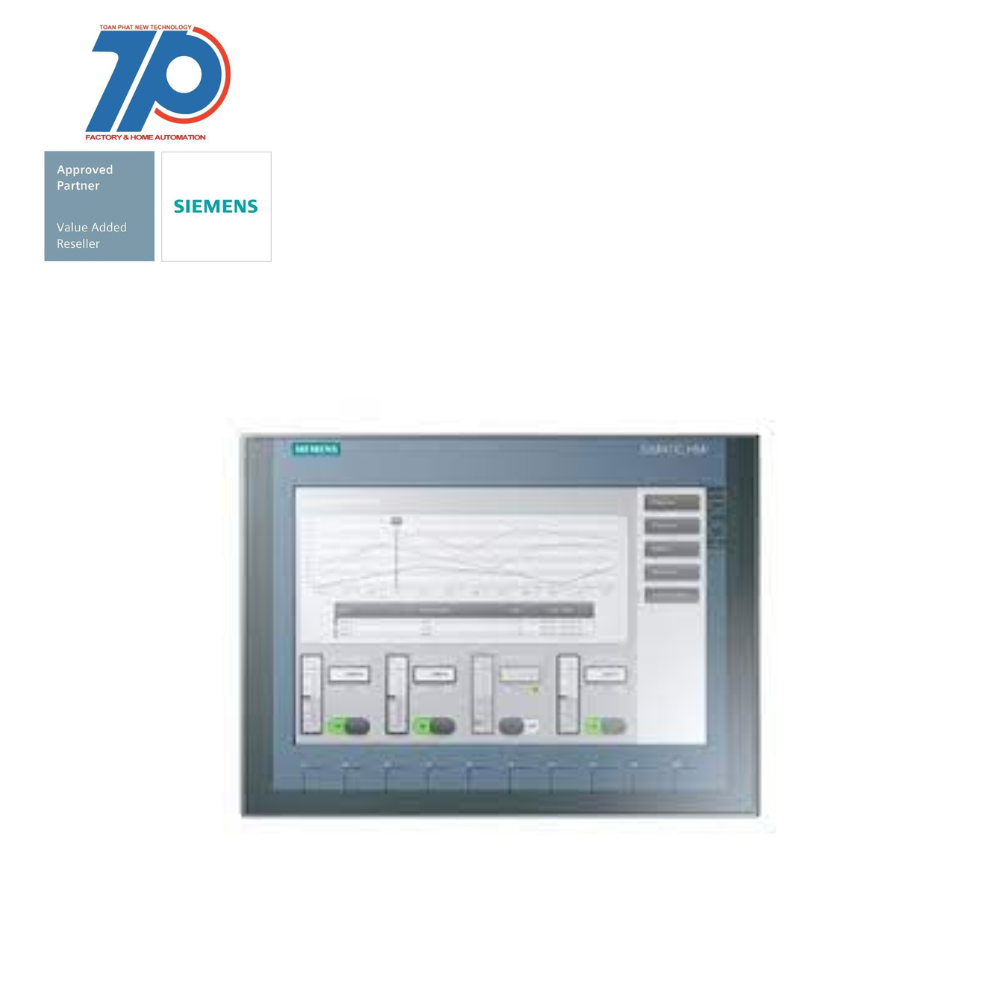

Simatic HMI, KTP1200 Basic cho cấu hình cá nhân hóa.
Thông số kỹ thuật:
Hoạt động bằng phím/cảm ứng
Màn hình TFT 12″
65536 màu

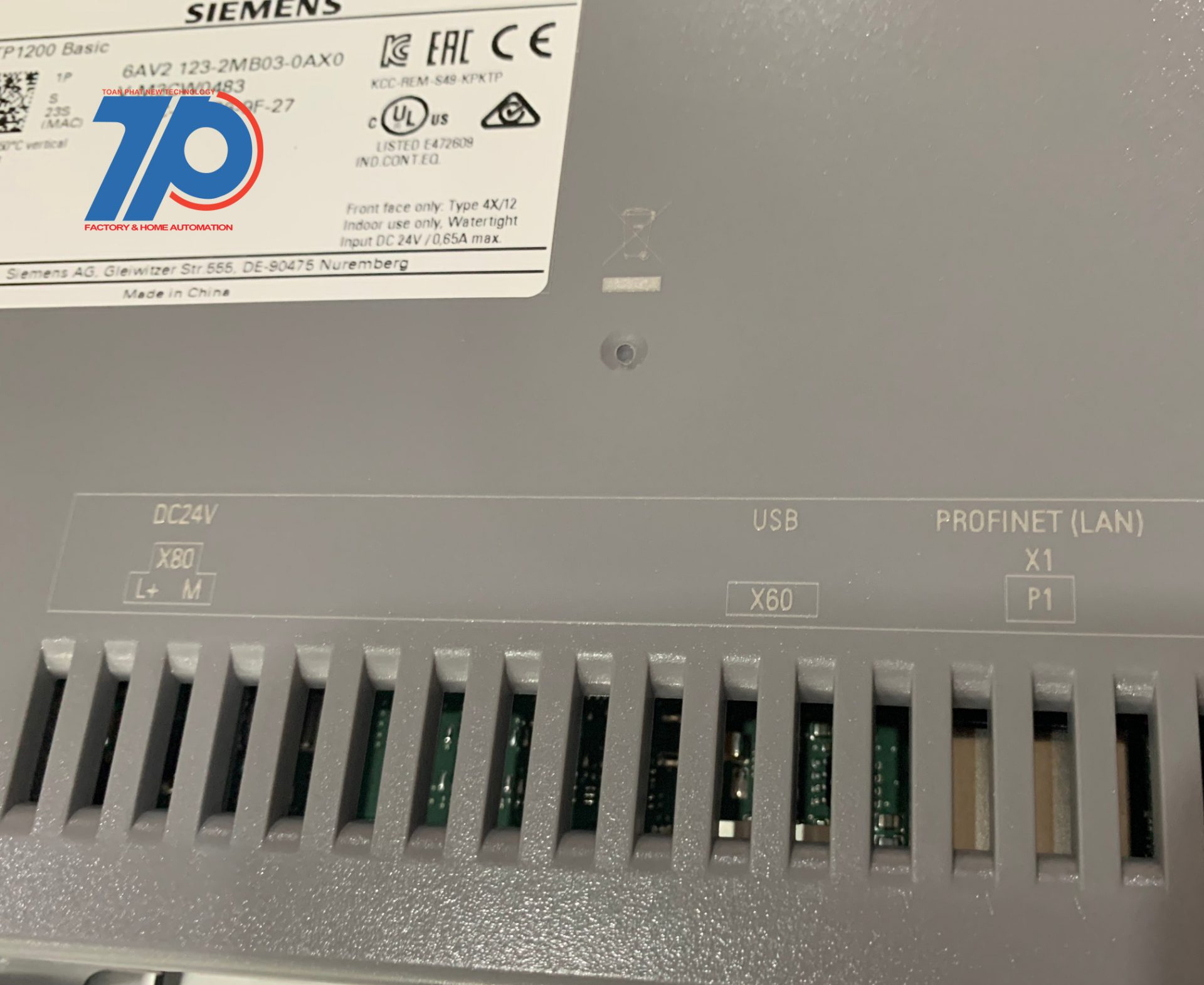

Giao diện PROFINET
Có thể cấu hình từ WinCC Basic V13/ STEP 7 Basic V13

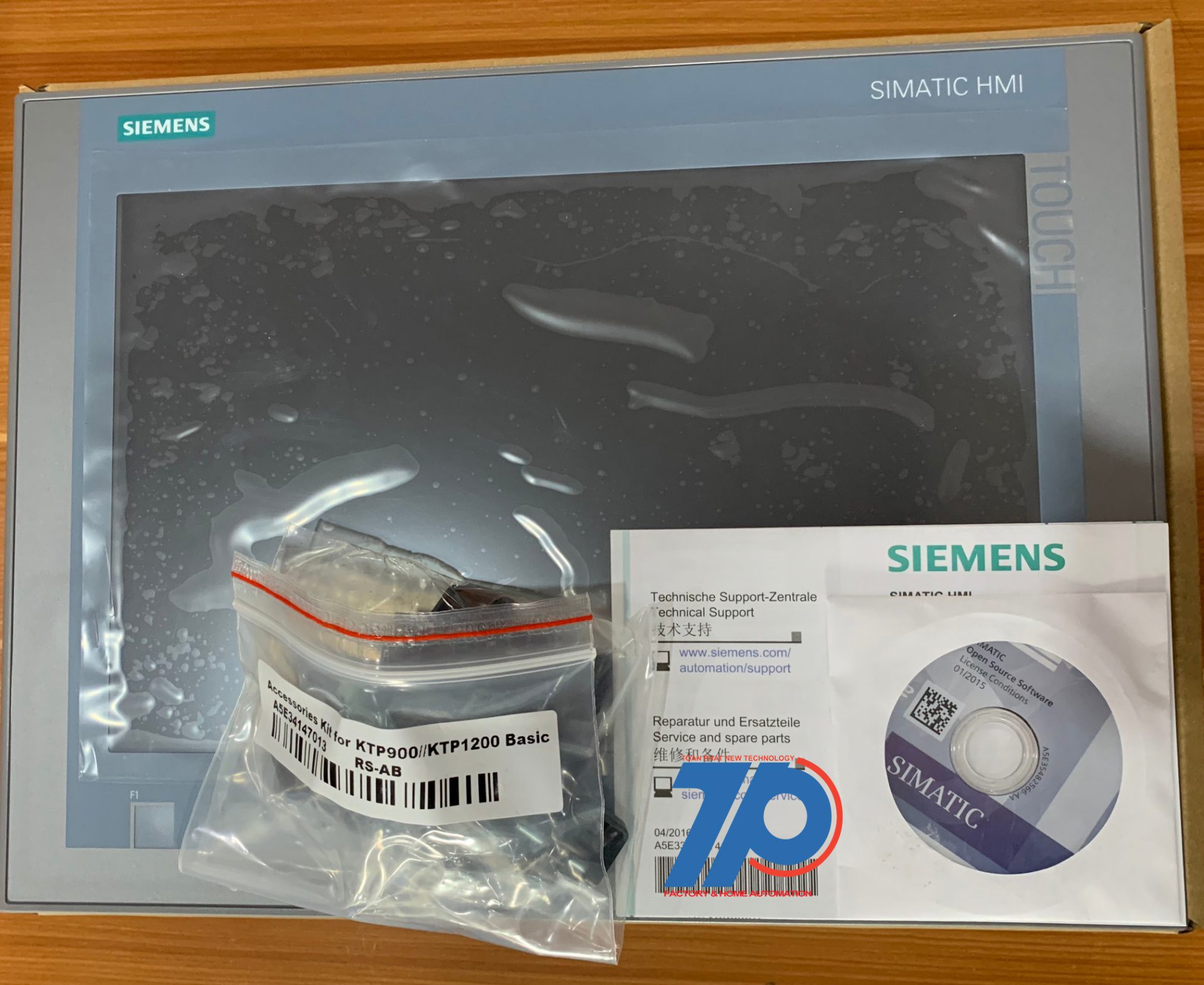

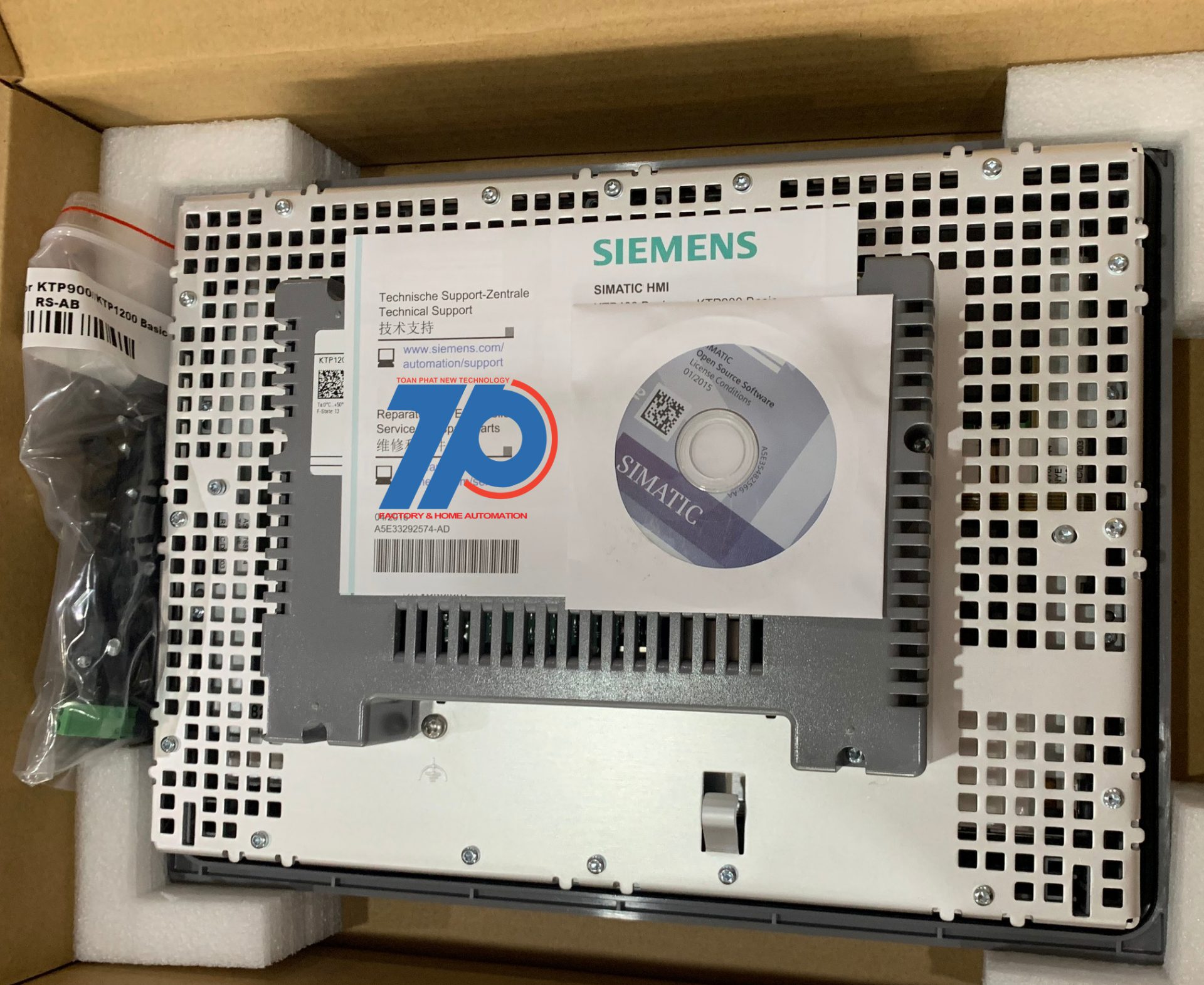

Chứa phần mềm nguồn mở, được cung cấp miễn phí xem CD kèm theo
Lợi ích cho khách hàng:
Các tính năng và chức năng cơ bản nhất định phù hợp cho người mới bắt đầu
Mức giá đặc biệt hấp dẫn
Triển khai dễ dàng các tác vụ trực quan hóa
Additional Information
Support
| Technical Data
| Manuals / Links
|
####
| FEATURE | VALUE |
| With message indication | true |
| Supporting protocol for PROFIsafe | false |
| Useful project memory/user memory | 10000 kByte |
| Process value representation (output) possible | true |
| With printer output | false |
| Radio standard GPRS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for ASI | false |
| Supply voltage DC | 28.8 V |
| With alpha numeric keyboard | true |
| Screen diagonal | 12 inch |
| Supporting protocol for other bus systems | true |
| Number of pixels, vertical | 800 |
| Supply voltage DC | 19.2 V |
| Radio standard UMTS | false |
| Number of pixels, horizontal | 1280 |
| Colour display | true |
| Voltage type (supply voltage) | DC |
| Number of HW-interfaces industrial Ethernet | 1 |
| Supporting protocol for Modbus | true |
| Supporting protocol for INTERBUS-Safety | false |
| Width of the front | 330 mm |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for PROFINET CBA | false |
| Operating temperature | 50 °C |
| Supporting protocol for AS-Interface Safety at Work | false |
| With message system (incl. buffer and confirmation) | true |
| With numeric keyboard | true |
| Radio standard GSM | false |
| Touch technology | Resistive touch |
| Supporting protocol for LON | false |
| Suitable for safety functions | false |
| Number of password levels | 50 |
| Operating temperature | 0 °C |
| Number of online languages | 10 |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for INTERBUS | false |
| Number of function buttons, programmable | 10 |
| Supporting protocol for KNX | false |
| Supporting protocol for SUCONET | false |
| With SW interfaces | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for TCP/IP | true |
| Built-in depth | 54.9 mm |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for SERCOS | false |
| With recipes | true |
| Number of HW-interfaces USB | 1 |
| Rail mounting possible | false |
| Radio standard Bluetooth | false |
| Supporting protocol for CAN | false |
| Process default value (input) possible | true |
| Number of colours of the display | 65536 |
| Height of the front | 245 mm |
| Wall mounting/direct mounting | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for DeviceNet Safety | false |
| Additional software components, loadable | false |
| IO link master | false |
