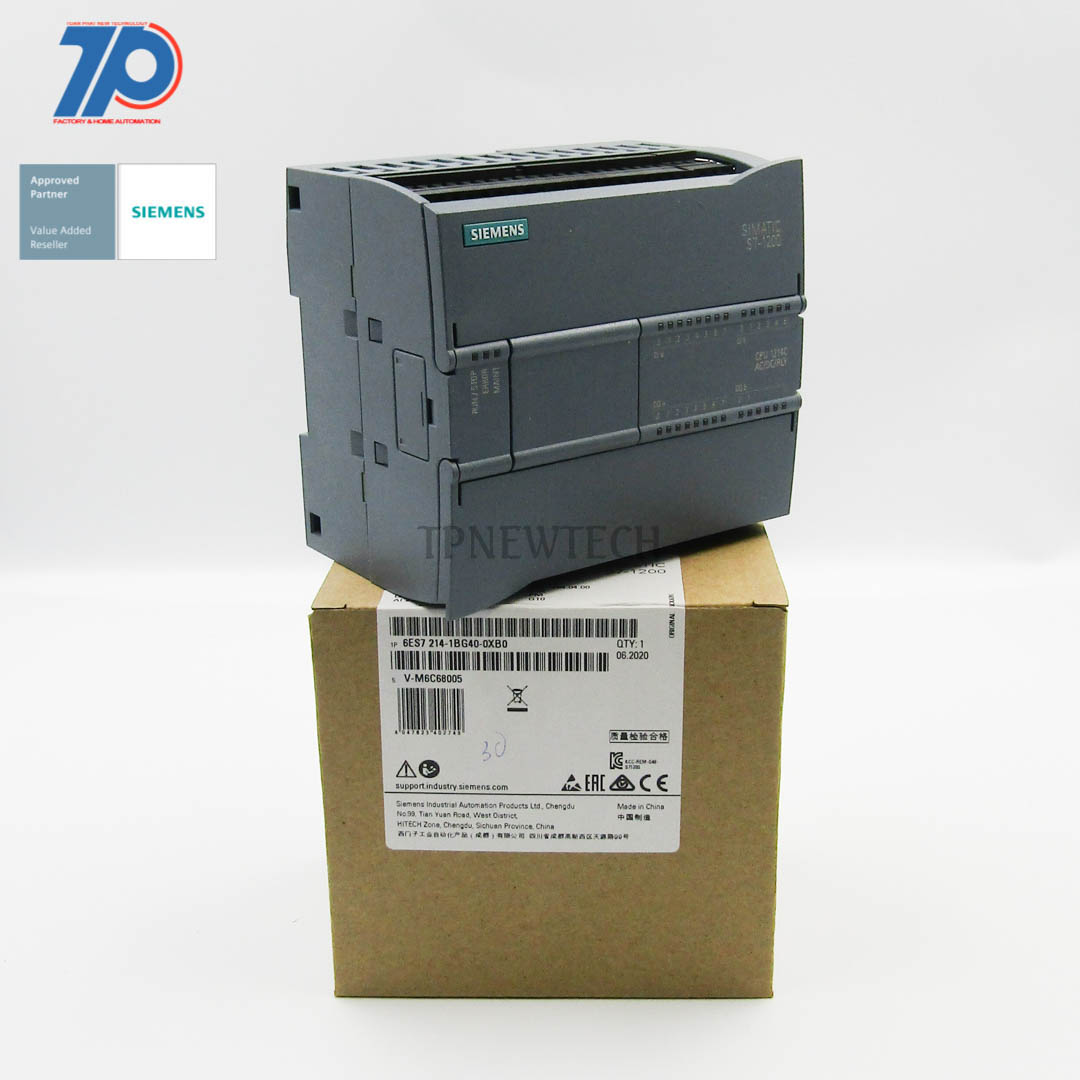

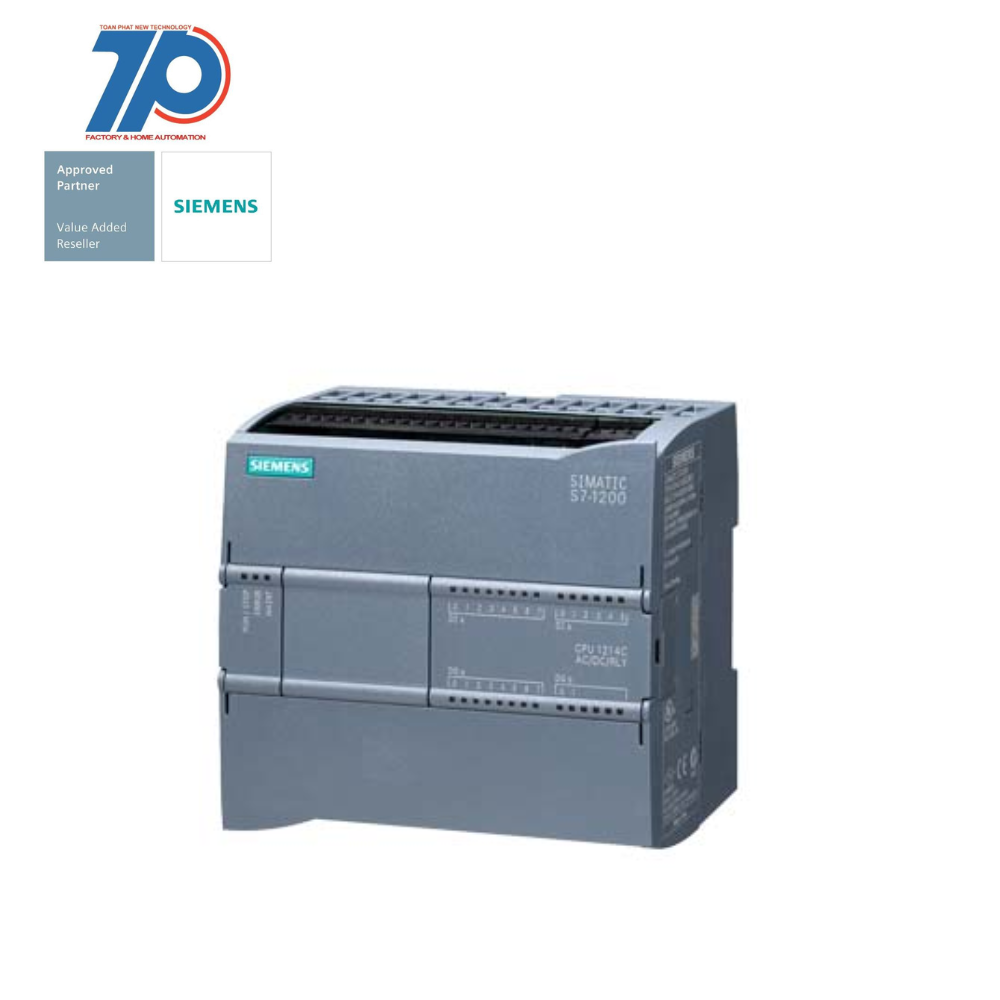

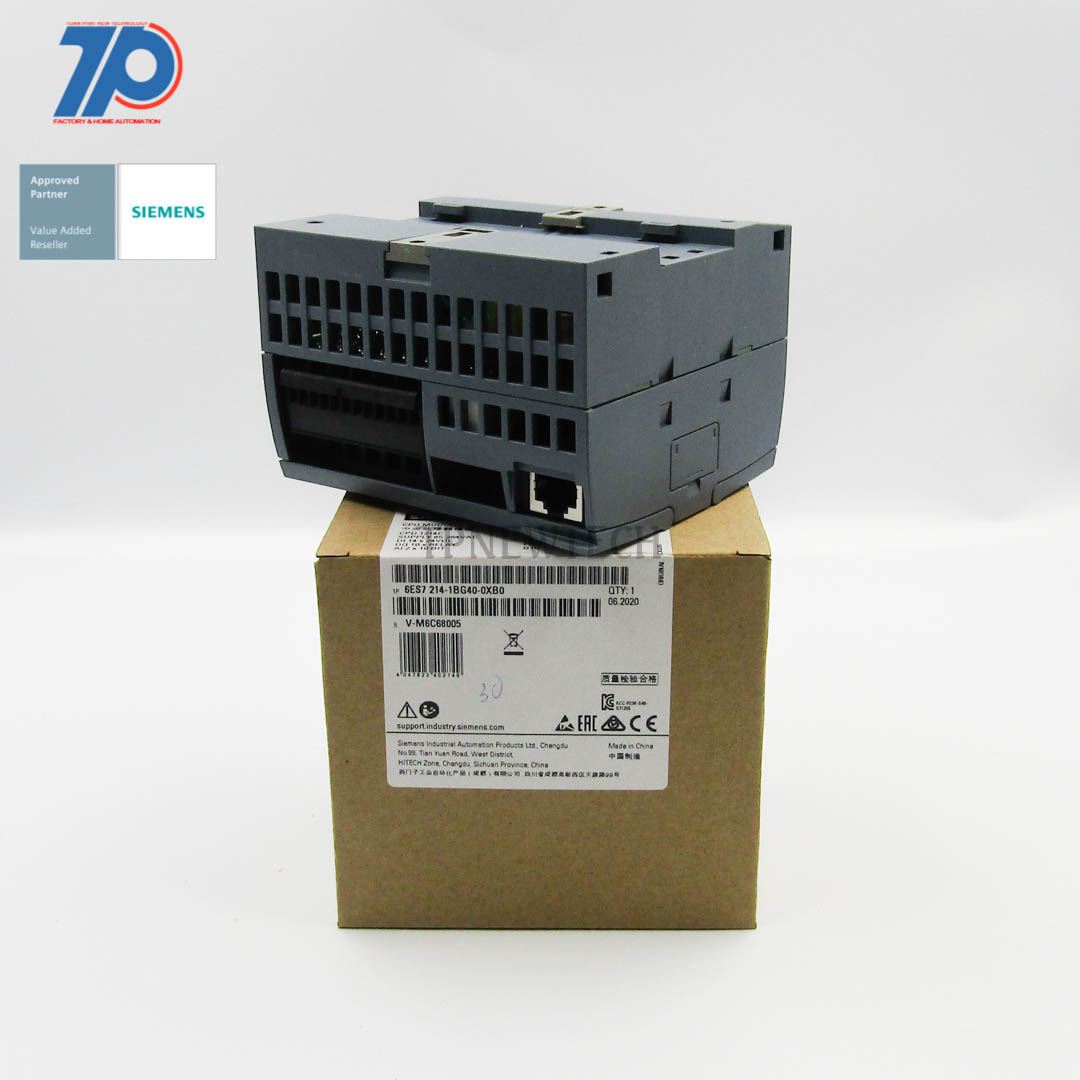

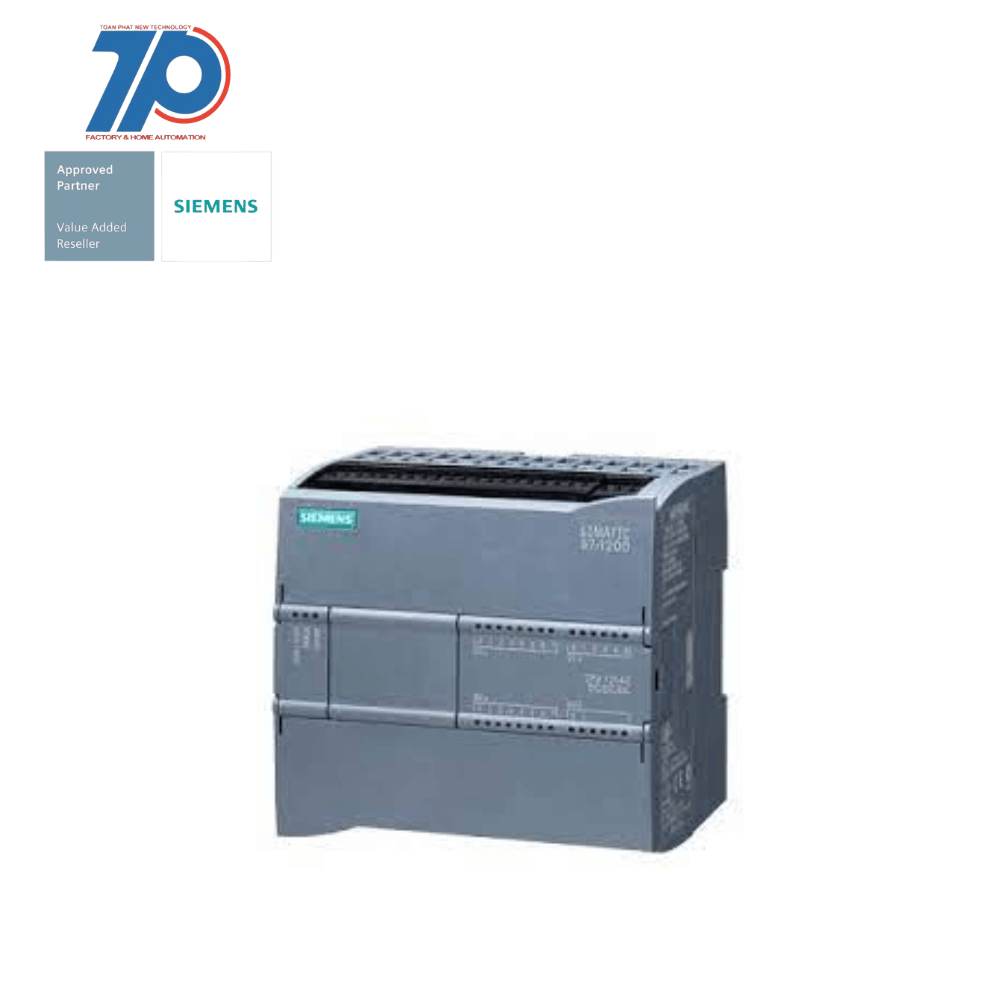

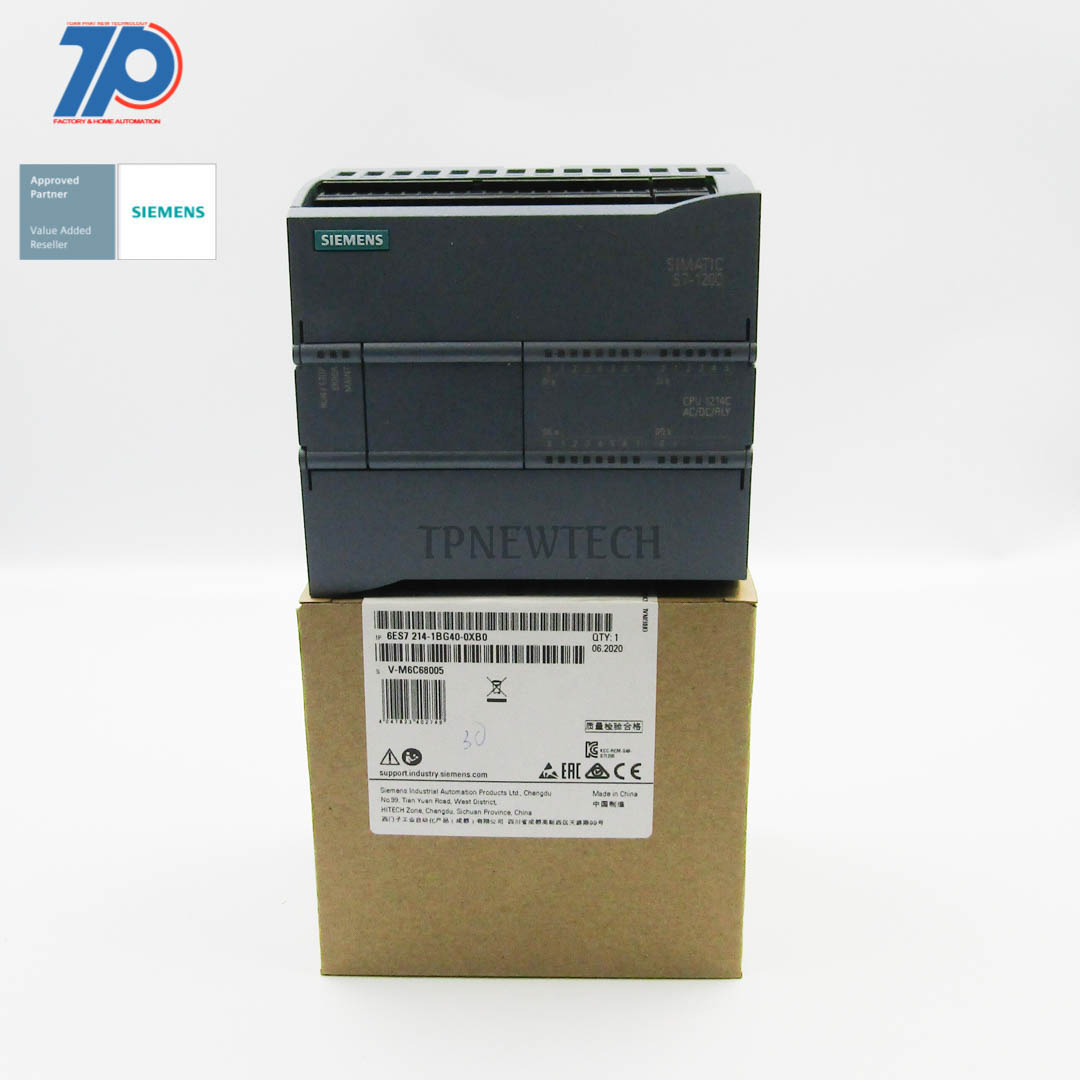

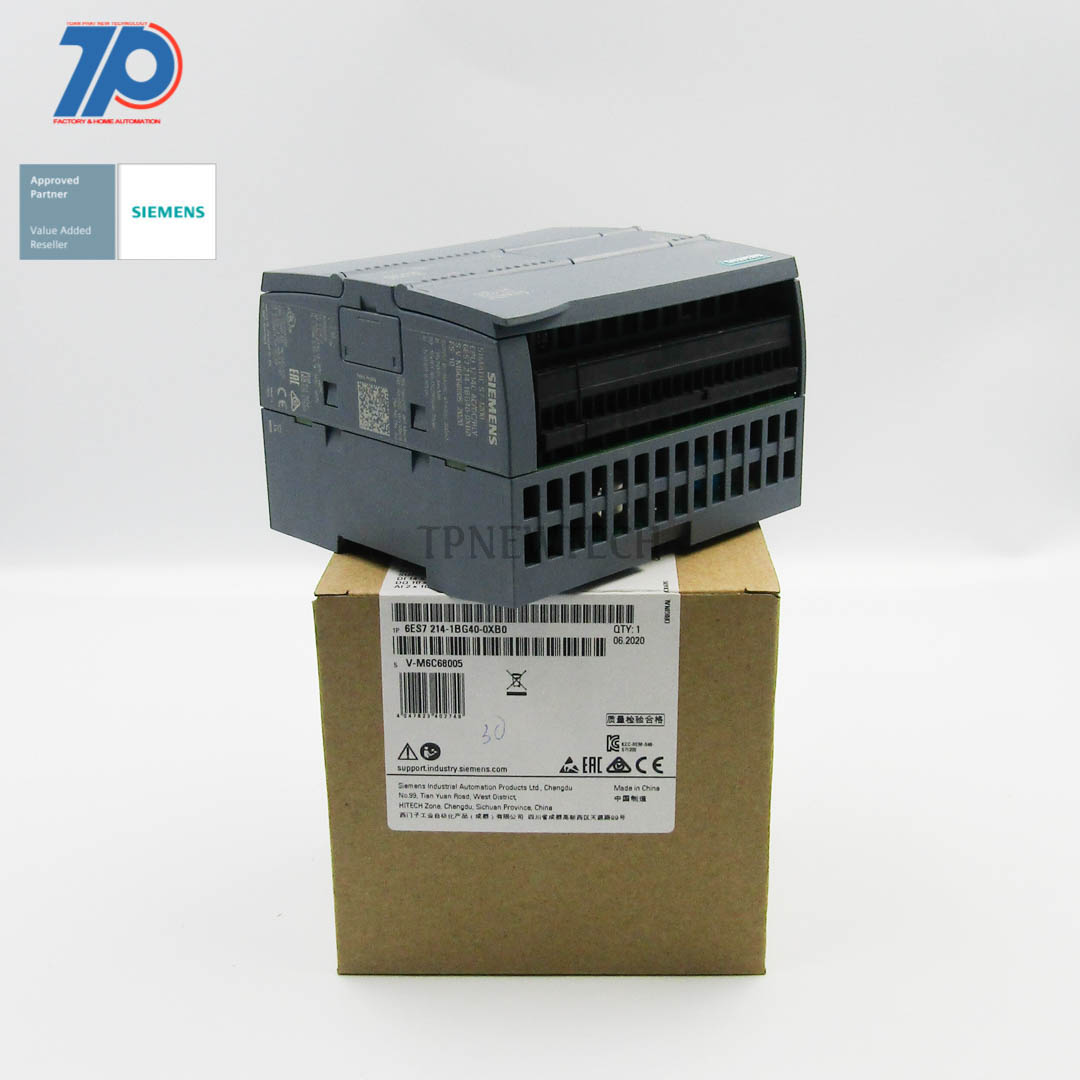

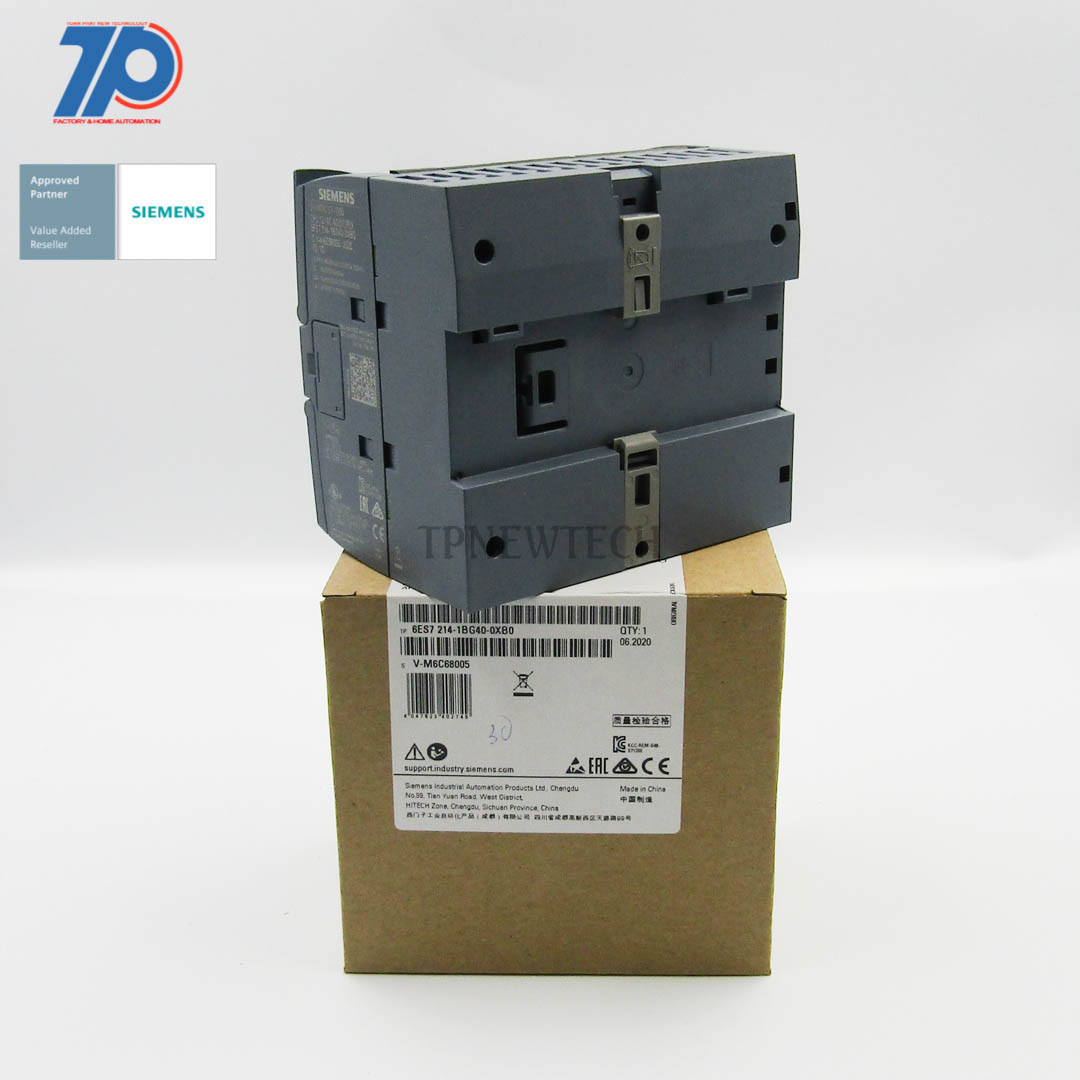

SIMATIC S7-1200, CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 – 10V DC, POWER SUPPLY: AC 85 – 264 V AC AT 47 – 63 HZ, PROGRAM/DATA MEMORY: 100 KB
Hàng chính hãng SIEMENS
Freeship nội thành HCM
6ES7214-1BG40-0XB0 – 1214C AC/DC/RLY PLC S7-1200
7,407,150₫ 5,500,000₫
Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng (Luôn có giá tốt khi mua số lượng nhiều)
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS, Đức.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 3 - 7 ngày trên toàn quốc.
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi
Chi Tiết Sản Phẩm
SIMATIC S7-1200, CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 – 10V DC, POWER SUPPLY: AC 85 – 264 V AC AT 47 – 63 HZ, PROGRAM/DATA MEMORY: 100 KB
Thông tin kỹ thuật 6ES7214-1AG40-0XB0
| SIMATIC S7-1200, CPU 1214C, compact CPU, DC/DC/DC, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 2 AI 0-10 V DC, Power supply: DC 20.4-28.8V DC, Program/data memory 100 KB | |
General information | ||
Product type designation | CPU 1214C DC/DC/DC | |
Firmware version | V4.2 | |
Engineering with | ||
● Programming package | STEP 7 V14 or higher | |
Supply voltage | ||
Rated value (DC) | ||
● 24 V DC | Yes | |
permissible range, lower limit (DC) | 20.4 V | |
permissible range, upper limit (DC) | 28.8 V | |
Reverse polarity protection | Yes | |
Load voltage L+ | ||
● Rated value (DC) | 24 V | |
● permissible range, lower limit (DC) | 20.4 V | |
● permissible range, upper limit (DC) | 28.8 V | |
Input current | ||
Current consumption (rated value) | 500 mA; CPU only | |
Current consumption, max. | 1 500 mA; CPU with all expansion modules | |
Inrush current, max. | 12 A; at 28.8 V | |
I²t | 0.5 A²·s | |
Output current | ||
for backplane bus (5 V DC), max. | 1 600 mA; Max. 5 V DC for SM and CM | |
Encoder supply | ||
24 V encoder supply | ||
● 24 V | L+ minus 4 V DC min. | |
Power loss | ||
Power loss, typ. | 12 W | |
Memory | ||
Work memory | ||
● integrated | 100 kbyte | |
● expandable | No | |
Load memory | ||
● integrated | 4 Mbyte | |
● Plug-in (SIMATIC Memory Card), max. | with SIMATIC memory card | |
Backup | ||
● present | Yes | |
● maintenance-free | Yes | |
● without battery | Yes | |
CPU processing times | ||
for bit operations, typ. | 0.08 µs; / instruction | |
for word operations, typ. | 1.7 µs; / instruction | |
for floating point arithmetic, typ. | 2.3 µs; / instruction | |
CPU-blocks | ||
Number of blocks (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used | |
OB | ||
● Number, max. | Limited only by RAM for code | |
Data areas and their retentivity | ||
Retentive data area (incl. timers, counters, flags), max. | 10 kbyte | |
Flag | ||
● Number, max. | 8 kbyte; Size of bit memory address area | |
Local data | ||
● per priority class, max. | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB | |
Address area | ||
Process image | ||
● Inputs, adjustable | 1 kbyte | |
● Outputs, adjustable | 1 kbyte | |
Hardware configuration | ||
Number of modules per system, max. | 3 comm. modules, 1 signal board, 8 signal modules | |
Time of day | ||
Clock | ||
● Hardware clock (real-time) | Yes | |
● Backup time | 480 h; Typical | |
● Deviation per day, max. | ±60 s/month at 25 °C | |
Digital inputs | ||
Number of digital inputs | 14; Integrated | |
● of which inputs usable for technological functions | 6; HSC (High Speed Counting) | |
Source/sink input | Yes | |
Number of simultaneously controllable inputs | ||
all mounting positions | ||
— up to 40 °C, max. | 14 | |
Input voltage | ||
● Rated value (DC) | 24 V | |
● for signal “0” | 5 V DC at 1 mA | |
● for signal “1” | 15 V DC at 2.5 mA | |
Input delay (for rated value of input voltage) | ||
for standard inputs | ||
— parameterizable | 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four | |
— at “0” to “1”, min. | 0.2 ms | |
— at “0” to “1”, max. | 12.8 ms | |
for interrupt inputs | ||
— parameterizable | Yes | |
for technological functions | ||
— parameterizable | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz | |
Cable length | ||
● shielded, max. | 500 m; 50 m for technological functions | |
● unshielded, max. | 300 m; for technological functions: No |
Sản phẩm liên quan: 6ES7214-1AG40-0XB0 , 6ES7214-1HG40-0XB0 , 6ES7214-1AG31-0XB0 , 6ES7214-1BG31-0XB0 , 6ES7214-1HG31-0XB0
Trọng lượng | 0.45 kg |
---|---|
Country of Origin | CN |
