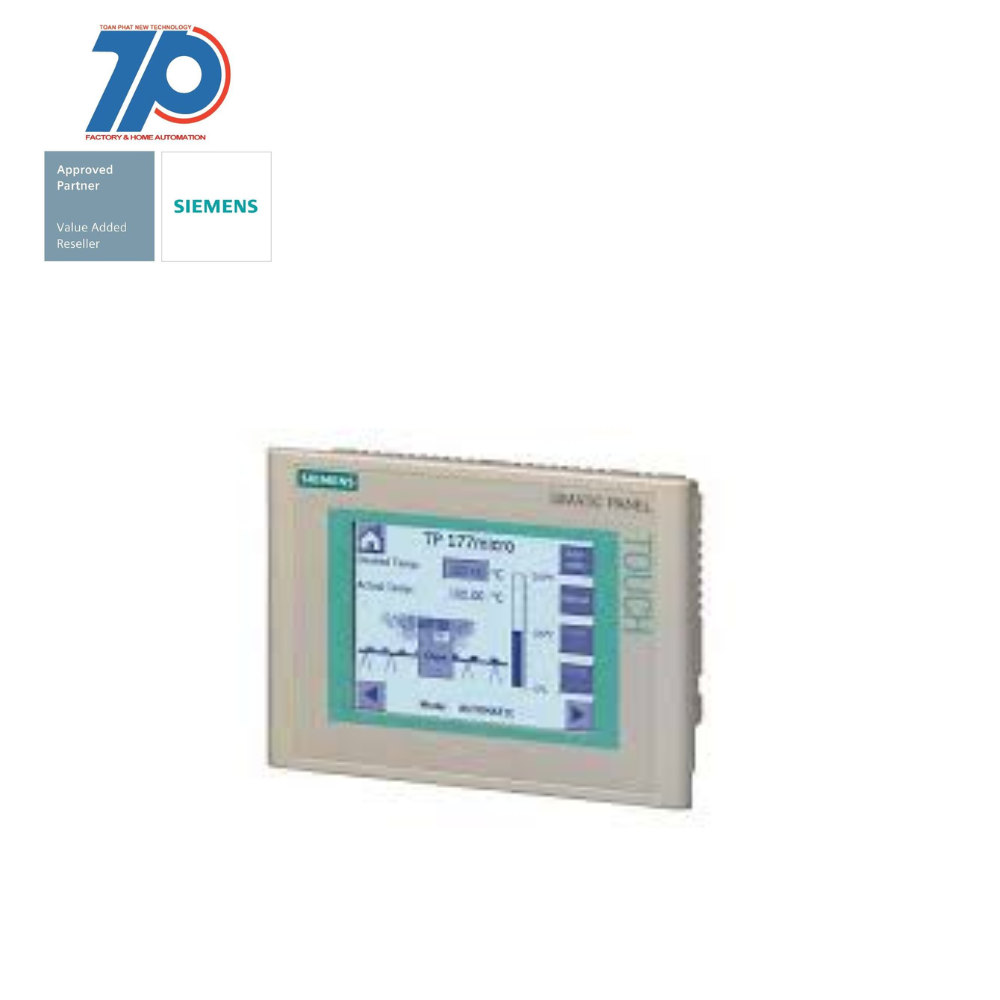

6AV6640-0CA11-0AX1

Giá: Liên Hệ

Sản phẩm hiện đang có sẵn tại TPNEWTECH.
Gọi ngay cho chúng tôi để nhận báo giá và ưu đãi tốt nhất.

Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 3 - 7 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

 Hàng chính hãng SIEMENS

Freeship nội thành HCM

Gọi Báo Giá Nhanh Hỗ trợ kỹ thuật

Chi Tiết Sản Phẩm

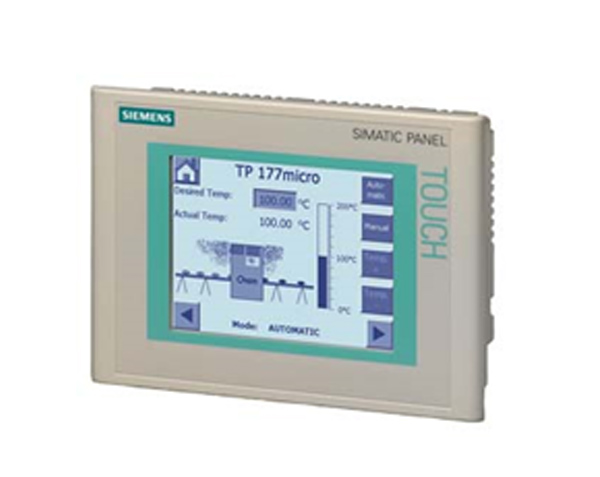

SIMATIC Touch Panel TP 177micro for SIMATIC S7-200 5.7″ blue mode STN display configurable from WinCC flexible 2004 Micro HSP Contains open source software which is provided free of charge. See enclosed CD

*** Spare part *** SIMATIC Touch Panel TP 177micro for SIMATIC S7-200 5.7″ blue mode STN display configurable from WinCC flexible 2004 Micro HSP Contains open source software which is provided free of charge. See enclosed CD
General information
Product type designationTP 177micro
Display
Design of displaySTN
Screen diagonal5.7 in
Color displayNo
Number of colors4; Blue levels
Resolution (pixels)
● Horizontal image resolution320 Pixel
● Vertical image resolution240 Pixel
Backlighting
● MTBF backlighting (at 25 °C)50 000 h
Control elements
Control elementsTouch screen
Keyboard fonts
● Membrane keyboard
— user-definable label membrane keysNo
● Function keysNo
● System keysNo
— Number of system keys0
● Numeric keyboardYes
● alphanumeric keyboardYes
● hexadecimal keyboardYes
● Multi-key operationNo
Touch operation
● Design as touch screenYes; analog, resistive
Installation type/mounting
Mounting positionvertical
maximum permissible angle of inclination without external ventilation35°
Supply voltage
Type of supply voltageDC
Input current
Current consumption (rated value)0.24 A
Starting current inrush I²t0.5 A²·s
Power
Active power input, typ.6 W
Processor
Processor typeARM
Memory
Type of memoryFlash
Memory available for user data256 kbyte
Time of day
Clock
● TypeSoftware clock, no battery backup
● retentiveNo
● synchronizableNo
Interfaces
Interfaces/bus type1x RS 485 (max. 187.5 kbit/s)
Number of industrial Ethernet interfaces0
Number of RS 485 interfaces1
Number of RS 422 interfaces0
Number of USB interfaces0
Protocols
Supports protocol for PROFINET IONo
PROFIsafeNo
PROFIBUSYes
Protocols (Ethernet)
● TCP/IPNo
Further protocols
● EtherNet/IPNo
● MODBUSNo
● other bus systemsYes
Degree and class of protection
IP (at the front)IP65
IP (rear)IP20
NEMA (front)NEMA 4x (when installed)
Standards, approvals, certificates
cULusYes
EAC (formerly Gost-R)No
Suitable for safety functionsNo
Use in hazardous areas
● ATEX Zone 2Yes
● ATEX Zone 22Yes
● FM Class I Division 2Yes
Marine approval
● Germanischer Lloyd (GL)Yes
● American Bureau of Shipping (ABS)Yes
● Bureau Veritas (BV)Yes
● Det Norske Veritas (DNV)Yes
● Lloyds Register of Shipping (LRS)Yes
● Nippon Kaiji Kyokai (Class NK)Yes
● Polski Rejestr Statkow (PRS)No
Ambient conditions
Ambient temperature during operation
● min.0 °C
● max.50 °C
Ambient temperature during storage/transportation
● min.-20 °C
● max.60 °C
Relative humidity
● Operation, max.90 %
Operating systems
pre-installed operating systemLINUX
Configuration
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementNo
Configuration software
● Configuration toolWinCC flexible Micro Version 2004 SP1, HSP or higher (to be ordered separately)
● STEP 7 Basic (TIA Portal)No
● STEP 7 Professional (TIA Portal)No
● WinCC flexible CompactYes
● WinCC flexible StandardYes
● WinCC flexible AdvancedYes
● WinCC Basic (TIA Portal)No
● WinCC Comfort (TIA Portal)No
● WinCC Advanced (TIA Portal)No
● WinCC Professional (TIA Portal)No
Languages
Online languages
● Number of online/runtime languages5
Project languages
● Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesYes
Task plannerYes
Help systemYes
● Number of characters per info text320
● Number of tooltips0
Message system
● Number of alarm classes32
● Number of messages500
● Bit messagesYes
— Number of bit messages500
● Analog messagesYes
— Number of analog messages20
● Telegram message procedure Alarm SNo
● System messages HMIYes
● System messages PLCYes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)No
● Lines1
● Number of characters per message80
● Number of process values per message8
● Acknowledgment groupsYes
● Message indicatorYes
● acoustic feedbackNo
● First/last valueYes
Variables
● Number of variables per device250
● Number of variables per screen20
● Limit valuesYes
● MultiplexingYes
● StructuresNo
Images
● Number of configurable images250
● Permanent window/defaultYes
● Start screen configurableYes
● Image selection by PLCNo
● Image number in the PLCNo
Image objects
● Text objects500 text elements
● Number of I/O fields per image20
● Number of date/time fields0
● Index of screen contextNo
● ReturnNo
● Graphics objectBit maps, icons, icon (full-screen), vector graphics
— Icons1
— Icon (full screen)1
Complex image objects
● Status/controlNot possible
● dynamic objectsDiagrams, bar graphs
— Number of curves per diagram1
● Bar graphs
— Number of bars per chart5
● Sliders
— Number of slides per image0
● Pointer instruments
— Number of analog indicators per image0
● Limit value linesYes
● Number of alphanumerical fields0
— alphanumeric fields per image0
● Number of numerical fields0
— numerical fields per image0
● Number of password fields0
● Number of visible switches per project0
— visible switches per image0
— hidden switches per image0
● Number of status switches per project0
— Number of status switches per image0
● Number of selector switches per project0
— Selector switches per image0
● Number of decade switches per project0
— Decade switches per image0
● Number of signal lamps per project0
— Signal lamps per image0
Attributes for dynamic objects
● Color changeNo
● X/Y movementNo
● HideYes
● Angle of rotationNo
Lists
● Number of text lists per project150
● Number of graphics lists per project100
Security
● Number of user groups1
● Number of users1
● Password export/importYes
Transfer (upload/download)
● Transfer of configurationserial
Process coupling
● Connection to controllerfor S7-200, see section on “System interfaces”
● S7-200Yes
— PPI (point-to-point)Yes
— PPI networkYes
— MPIYes
— PROFIBUS DPNo
● S7-300/400No
— MPINo
— PROFIBUS DPNo
— PROFINETNo
● S5No
— serialNo
— PROFIBUS DPNo
● TI 505No
● Allen Bradley (DF1)No
● Allen Bradley (DF485)No
● Mitsubishi (FX)No
● Mitsubishi (MP4)No
● Telemecanique (ADJUST)No
● Telemecanique (Uni-Telway)No
● OMRON (LINK/Multilink)No
● Modicon (Modbus)No
● GE-Fanuc (SNP)No
Functions
● Key repeatNo
● TAB sequenceYes
● Calculating functionsYes
● AnimateNo
● Menu tree editorNo
● Unit switchoverNo
Service tools/configuration aids
● Clean screenYes
● Touch calibrationYes
● Backup/Restore manuallyYes
● SimulationNo
● Device switchoverYes
● Delta transferNo
● Monitoring function for battery and memoryNo
● Trace (operation archive)No
Expandability/openness
● Open Platform ProgramNo
Peripherals/Options
SIMATIC HMI MM memory card: Multi Media CardNo
Additional software components loadableYes
Dimensions
Width of the housing front212 mm
Height of housing front156 mm
Mounting cutout, width198 mm
Mounting cutout, height142 mm
Overall depth45 mm
Weights
Weight (without packaging)0.75 kg
Other
free hotlineYes
last modified:05/09/2020
