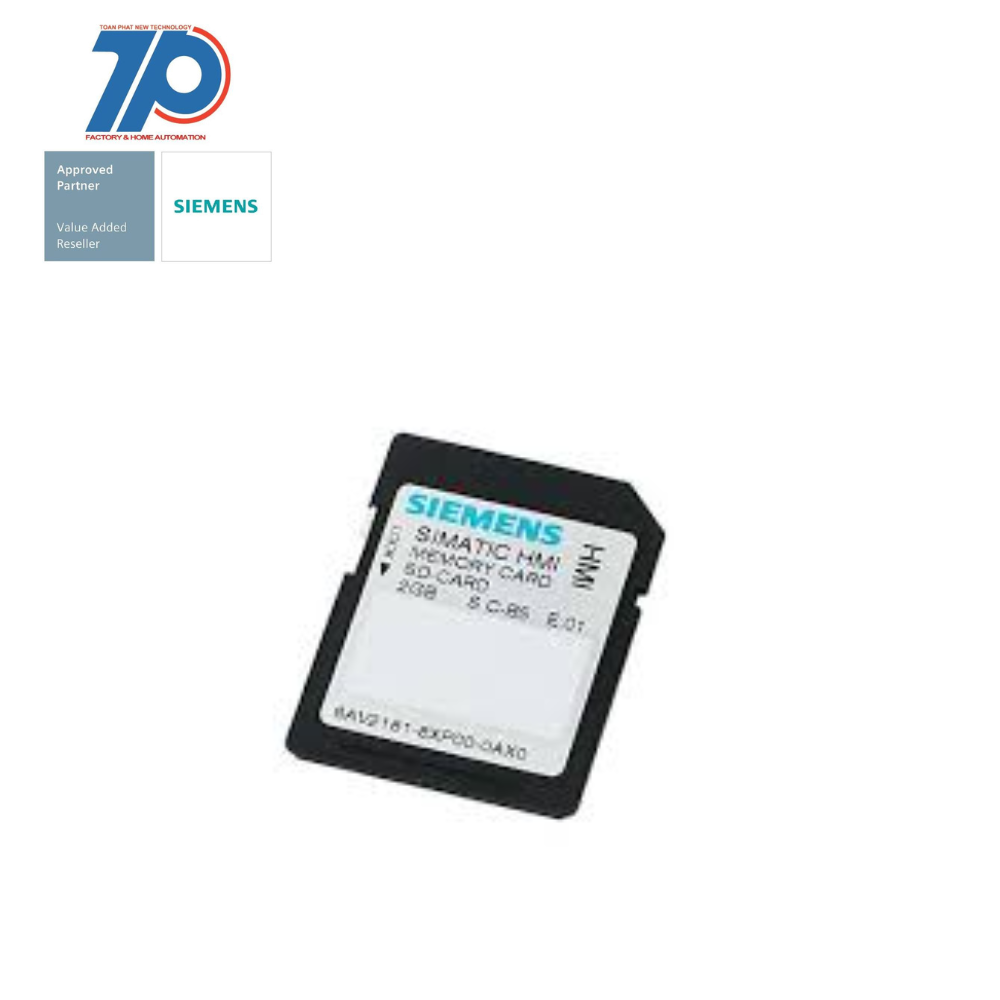

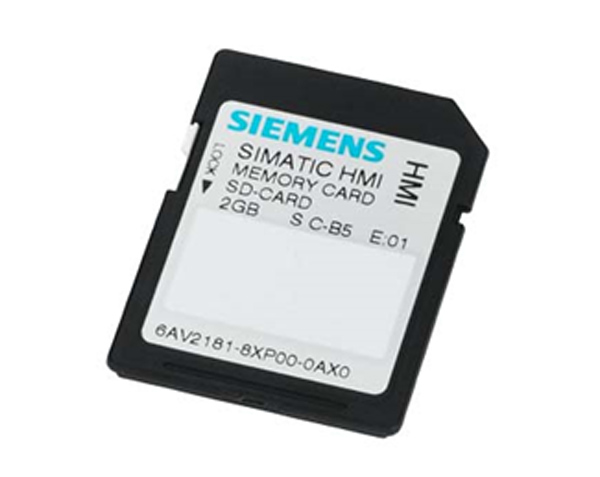

6AV2181-8XP00-0AX0 – SIMATIC SD memory card 2 GB

Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng (Luôn có giá tốt khi mua số lượng nhiều)

Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS, Đức.
Bảo hành 12 tháng khi mua tại TPNewtech.

Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 3 - 7 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi



Chi Tiết Sản Phẩm

SIMATIC SD memory card 2 GB Secure Digital Card for For devices with corresponding Slot Further information, Quantity and content: see technical data

6AV2181-8XP00-0AX0 - SIMATIC SD memory card 2 GB 2SIMATIC SD memory card 2 GB Secure Digital Card for For devices with corresponding Slot Further information, Quantity and content: see technical data
General information
Product type designationSD memory card
Control elements
Frame size/design
● StandardYes; Typically 10 000 insertion cycles
● FlatYes
Installation type/mounting
Mounting positionAny, dependent on target device
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
Supply voltage
Type of supply voltageDC
Rated value (DC)3.3 V; Max 3.6 V
Input current
Current consumption (rated value)100 mA; Typical, maximum value
Memory
Type of memorySecure Digital memory card
Memory size2 048 Mbyte; Larger internal memory
Transmission rate for reading, max.1.6 Mbit/s; Minimum, typical for newly formatted memory
Transmission rate for writing, max.1.6 Mbit/s; Minimum, typical for newly formatted memory
Wear leveling (distributed writing)Yes; > 100 000 write/read cycles per cell and > 3 000 000 write/read cycles per card
Write protection switchYes; Effectiveness depends on the device
Interfaces
Device-side interface
● Number of pins device-side9
Standards, approvals, certificates
CE markYes
UL approvalYes
cULusYes
KC approvalYes
EAC (formerly Gost-R)Yes
RoHS conformityYes
China RoHS complianceYes
Marine approvalYes; Passive component, therefore dependent on target device
Use in hazardous areas
● ATEX Zone 2Yes; Always comply with the operating instructions of the target device.
● ATEX Zone 22Yes; Always comply with the operating instructions of the target device.
● IECEx Zone 2Yes; Always comply with the operating instructions of the target device.
● IECEx Zone 22Yes; Always comply with the operating instructions of the target device.
● cULus Class I Zone 2, Division 2Yes; Always comply with the operating instructions of the target device.
● FM Class I Division 2Yes; Always comply with the operating instructions of the target device.
Marine approval
● Germanischer Lloyd (GL)Yes; Always comply with the operating instructions of the target device.
● American Bureau of Shipping (ABS)Yes; Always comply with the operating instructions of the target device.
● Bureau Veritas (BV)Yes; Always comply with the operating instructions of the target device.
● Det Norske Veritas (DNV)Yes; Always comply with the operating instructions of the target device.
● Lloyds Register of Shipping (LRS)Yes; Always comply with the operating instructions of the target device.
● Nippon Kaiji Kyokai (Class NK)Yes; Always comply with the operating instructions of the target device.
● Polski Rejestr Statkow (PRS)Yes; Always comply with the operating instructions of the target device.
● Chinese Classification Society (CCS)Yes; Always comply with the operating instructions of the target device.
● Compass working clearance5 m
Ambient conditions
Suited for indoor useYes
Suited for outdoor useYes; possible under certain conditions
Ambient temperature during operation
● min.-30 °C
● max.60 °C
Ambient temperature during storage/transportation
● min.-40 °C
● max.80 °C
Relative humidity
● Operation, max.95 %
● Condensation permissibleNo; Condensation not permissible
Operating systems
pre-installed operating system
● Windows CENo; Preinstalled system files
Runs under operating system
● Windows CEYes
● Windows VistaYes
● Windows XPYes
● Windows 7Yes
● Windows 8Yes
● Windows 10Yes
● LinuxNo
● otherYes; Card must not be formatted!
Mechanics/material
Enclosure material (front)
● PlasticYes; Gold contacts
Enclosure color (front)RAL 6034 (color deviation possible)
Service life
● Number of operating cycles, keys10; Min. data storage without loss (in years)
Dimensions
Width24 mm
Height32 mm
Thickness2.1 mm
Weights
Weight without packaging3 g
Weight incl. packaging6 g
Scope of supply
Delivery quantity in pieces1
Other
MerchandiseNo
Manufacturer nameSIEMENS AG
Manufacturer’s addressGleiwitzerstraße 555, 90475 Nuremberg, Germany
Target devicesEspecially for KTP Mobile Panels 2nd Generation, MP377 and Comfort Panels, but also for all other panels (other than Classic Panels) and PCs with suitable slot
Note:Not suitable for MP177, MP277, Mobile Panel 277, OP77, TP/OP177, TP/OP277 and Mobile Panel 177
Usable in the following products
● Product 26AV2124-1*
● Product 36AV2124-2DC01-0AX0
● Product 46AV2125-2G*
● Product 56AV2125-2J*
● Product 66AV6644*
last modified:05/13/2020
