Hàng chính hãng SIEMENS

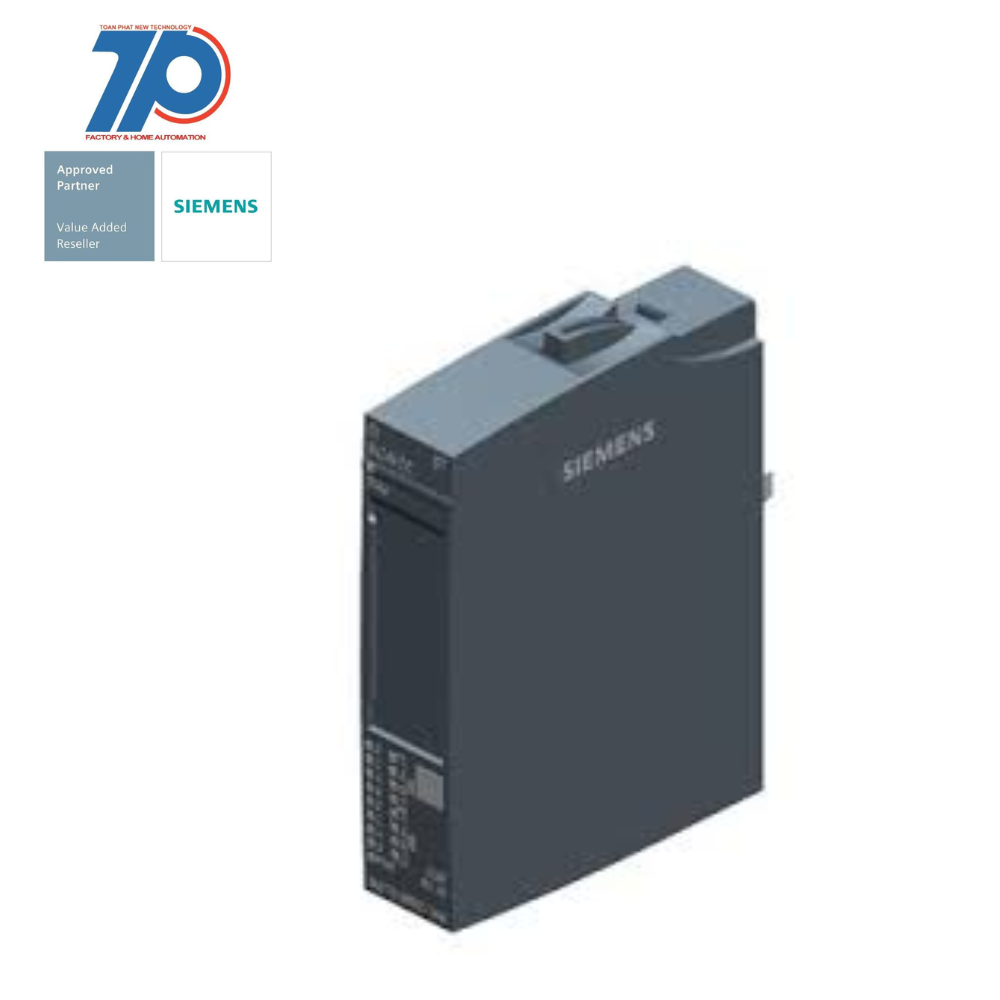

Freeship nội thành HCM6AG1131-6BF61-7AA0 SIPLUS ET 200SP DI 8×24 VDC SRC BA -40 … +70 °C với lớp phủ bảo vệ dựa trên 6ES7131-6BF61-0AA0 Siemens
4,809,000₫
--- Giá chưa bao gồm VAT ----
Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng (Luôn có giá tốt khi mua số lượng nhiều)
Bảo hành 12 tháng khi mua tại TPNewtech.
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.
Luôn có chương trình hỗ trợ dự án công trình
-> Hãy Liên hệ ngay cho chúng tôi
Chi Tiết Sản Phẩm
SIPLUS ET 200SP DI 8×24 V DC SRC BA cho cấu hình cá nhân hóa.
Thông số kỹ thuật:
Reference: 6ES7131-6BF61-0AA0
Operating temperature: -40…+70 °C
Input type: NPN, 1 type (IEC 61131)
Input delay: 0,05..20 ms
Diagnostic module for supply voltage
Protection level: IP20
Hot-swappable modules
MultiFieldbus interface IM155-6MF with support for multiple Ethernet protocols
Standard identification system using device labels and color-coded connector markings
100% protective coating against biological, chemical, and physical agents
Lợi ích cho khách hàng:
Maximized flexibility for quick and easy module replacement.
Simplified installation and maintenance processes.
Ensured data availability for optimal performance of ET 200 products.
Reliable recording of digital signals under various environmental conditions.
Sustainable investment for the future with advanced automation technologies.
Additional Information
Support
| Technical Data
| Manuals / Links |
####
| FEATURE | VALUE |
| Supporting protocol for Modbus | false |
| Supporting protocol for LON | false |
| Supporting protocol for CAN | false |
| Supporting protocol for INTERBUS | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Rack-assembly possible | false |
| Supporting protocol for ASI | false |
| Supporting protocol for other bus systems | false |
| Input current at signal 1 | 6 mA |
| Supply voltage DC | 28.8 V |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for KNX | false |
| Front built-in possible | false |
| Type of digital output | None |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for DeviceNet | false |
| Digital inputs configurable | true |
| Width | 15 mm |
| Appendant operation agent (Ex ia) | false |
| Rail mounting possible | true |
| Time delay at signal change | 20 ms |
| Permitted voltage at input | 30 V |
| Supporting protocol for SERCOS | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFIsafe | false |
| Type of voltage (input voltage) | DC |
| IO link master | false |
| With optical interface | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet Safety | false |
| Depth | 58 mm |
| Supporting protocol for PROFINET CBA | false |
| Radio standard GSM | false |
| Number of digital inputs | 8 |
| Time delay at signal change | 0.05 ms |
| System accessory | true |
| Fieldbus connection over separate bus coupler possible | true |
| Permitted voltage at input | -30 V |
| Supporting protocol for Foundation Fieldbus | false |
| Wall mounting/direct mounting | false |
| Appendant operation agent (Ex ib) | false |
| Height | 73 mm |
| Radio standard Bluetooth | false |
| Supporting protocol for SafetyBUS p | false |
| Suitable for safety functions | false |
| Radio standard UMTS | false |
| Radio standard GPRS | false |
- SIPLUS ET 200SP DI 8×24 V DC SRC BA based on 6ES7131-6BF61-0AA0 with conformal coating, -40…+70 °C, digital input module, suitable for BU type A0, color code CC02, source input, (NPN, sourcing input) input type 1 (IEC 61131), input delay 0.05..20 ms module diagnostics for: supply voltage
- With SIMATIC ET 200SP, Siemens offers a multifunctional and distributed I/O system, which can be commissioned very simply due to its space-saving design.
- It is approved for degree of protection IP20 and for installation in a compact control box.
- The system ensures maximum flexibility because you can quickly and simply replace modules at any time due to the multi hot swapping feature.
- SIMATIC ET 200SP also offers a wide range of different and fast communication methods.
- With the integrated MultiFieldbus interface module IM155-6MF, you can use the optimum protocol for your application flexibly at any time because this function supports multiple Ethernet protocols.
- Installation and service are simplified by a standardized identification system based on equipment labeling plates and color-coded connector assignments.
- Siemens guarantees a future-proof investment due to integration of innovative and long-life automation products.
- Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance of ET 200 products.
- Just like the CPU, the digital input modules are also protected against extreme ambient conditions.
- Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases.
- Regardless of the conditions, your digital signals are reliably recorded.
| Trọng lượng | 0.04 kg |
|---|---|
| Country of Origin | DE |
