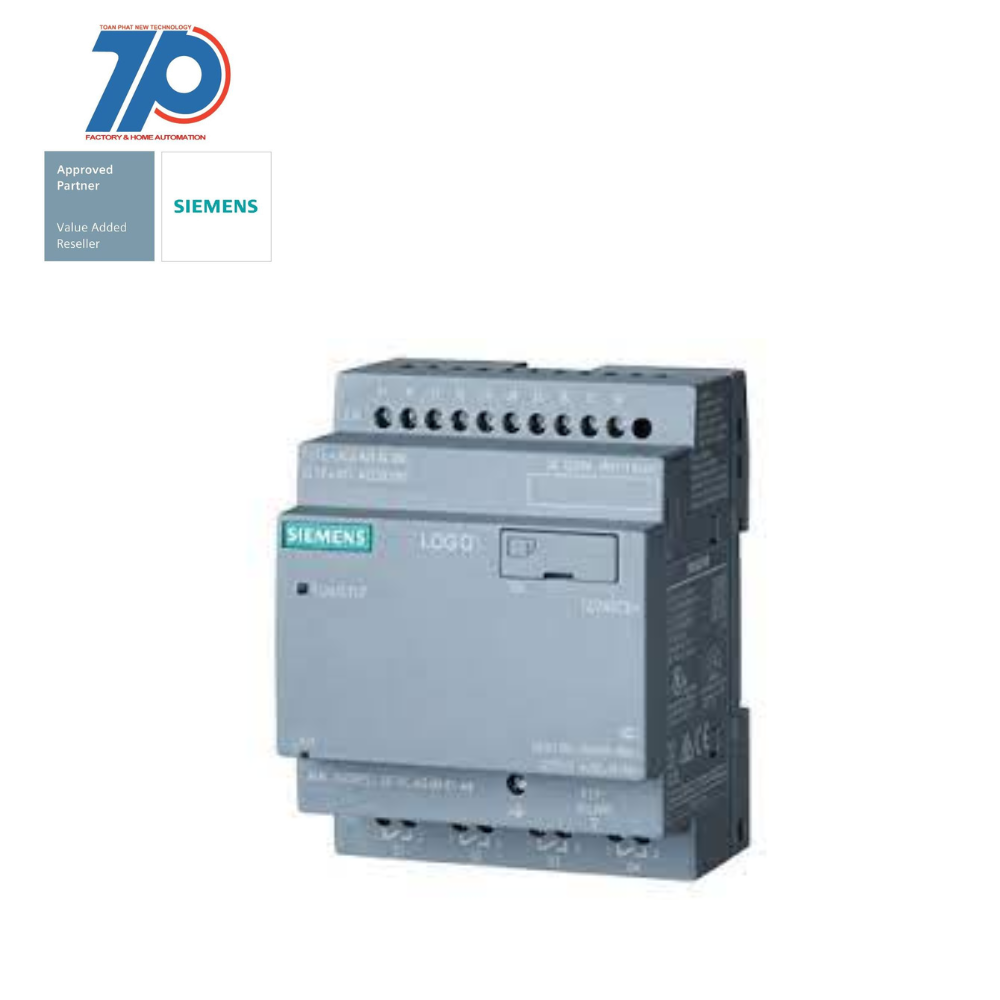

SIPLUS LOGO! 230RCEO cho cấu hình cá nhân hóa.
Thông số kỹ thuật:
Based on 6ED1052-2FB08-0BA1 with protective coating
Operating temperature range: -40…+70 °C
Startup temperature: -25 °C
Logic module with power supply / I/O: 115V/230V relay
8 Digital Inputs (DI) and 4 Digital Outputs (DQ)
No display screen
Memory: 400 blocks
Expandable by modules
Integrated Ethernet and web server
Data logging capabilities
User-defined web page
Standard microSD card support for LOGO! Soft Comfort V8.3 and above
Older projects can execute cloud connectivity in all LOGO! 8.3 basic units
Lợi ích cho khách hàng:
Enhanced protection for extreme environments.
Flexibility in applications due to expandable modules.
Integrated web server for easy remote access and monitoring.
Data logging features allow for comprehensive analysis.
Support for cloud connectivity increases accessibility.
Additional Information
Support
| Technical Data
| Manuals / Links
|
####
| FEATURE | VALUE |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for CAN | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for INTERBUS | false |
| Radio standard GSM | false |
| With relay output | true |
| IO link master | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Rack-assembly possible | false |
| Suitable for safety functions | false |
| Radio standard Bluetooth | false |
| Basic device | true |
| Wall mounting/direct mounting | true |
| Switching current | 10 A |
| Supporting protocol for ASI | false |
| Supporting protocol for other bus systems | false |
| Redundancy | false |
| Height | 90 mm |
| Supporting protocol for KNX | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for Modbus | false |
| With time switch clock | true |
| Rail mounting possible | true |
| Supporting protocol for PROFINET CBA | false |
| Explosion safety category for gas | None |
| Width | 71.5 mm |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for INTERBUS-Safety | false |
| With display | false |
| Supply voltage DC | 100 V |
| Supporting protocol for SERCOS | false |
| With optical interface | false |
| Supporting protocol for EtherCAT | false |
| Number of digital outputs | 4 |
| Supporting protocol for PROFIsafe | false |
| Supply voltage DC | 253 V |
| Radio standard WLAN 802.11 | false |
| Depth | 60 mm |
| Appendant operation agent (Ex ib) | false |
| Voltage type (supply voltage) | AC/DC |
| Supporting protocol for TCP/IP | true |
| Expandable | true |
| Front built-in possible | true |
| Supporting protocol for PROFINET IO | false |
| Radio standard GPRS | false |
| Number of digital inputs | 8 |
| Expansion device | false |
| Explosion safety category for dust | None |
| Radio standard UMTS | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for LON | true |
| Supporting protocol for Data-Highway | false |
