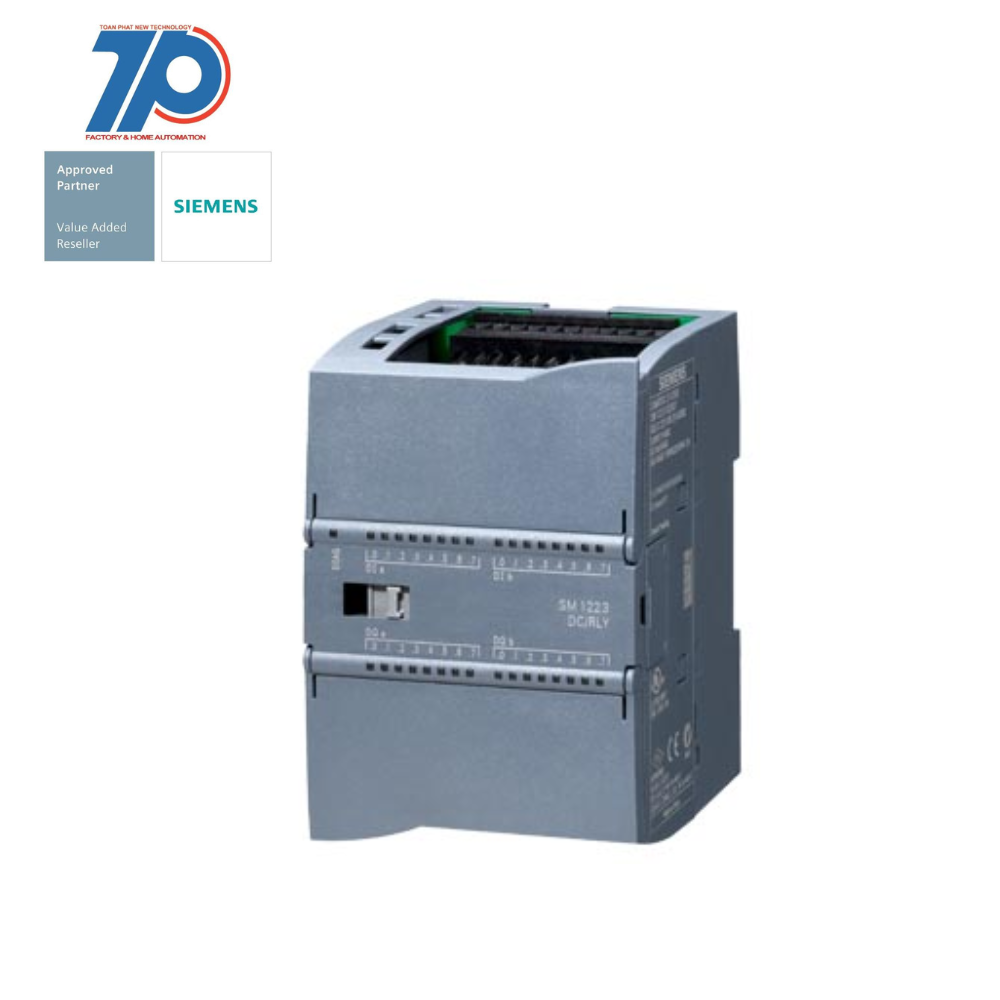

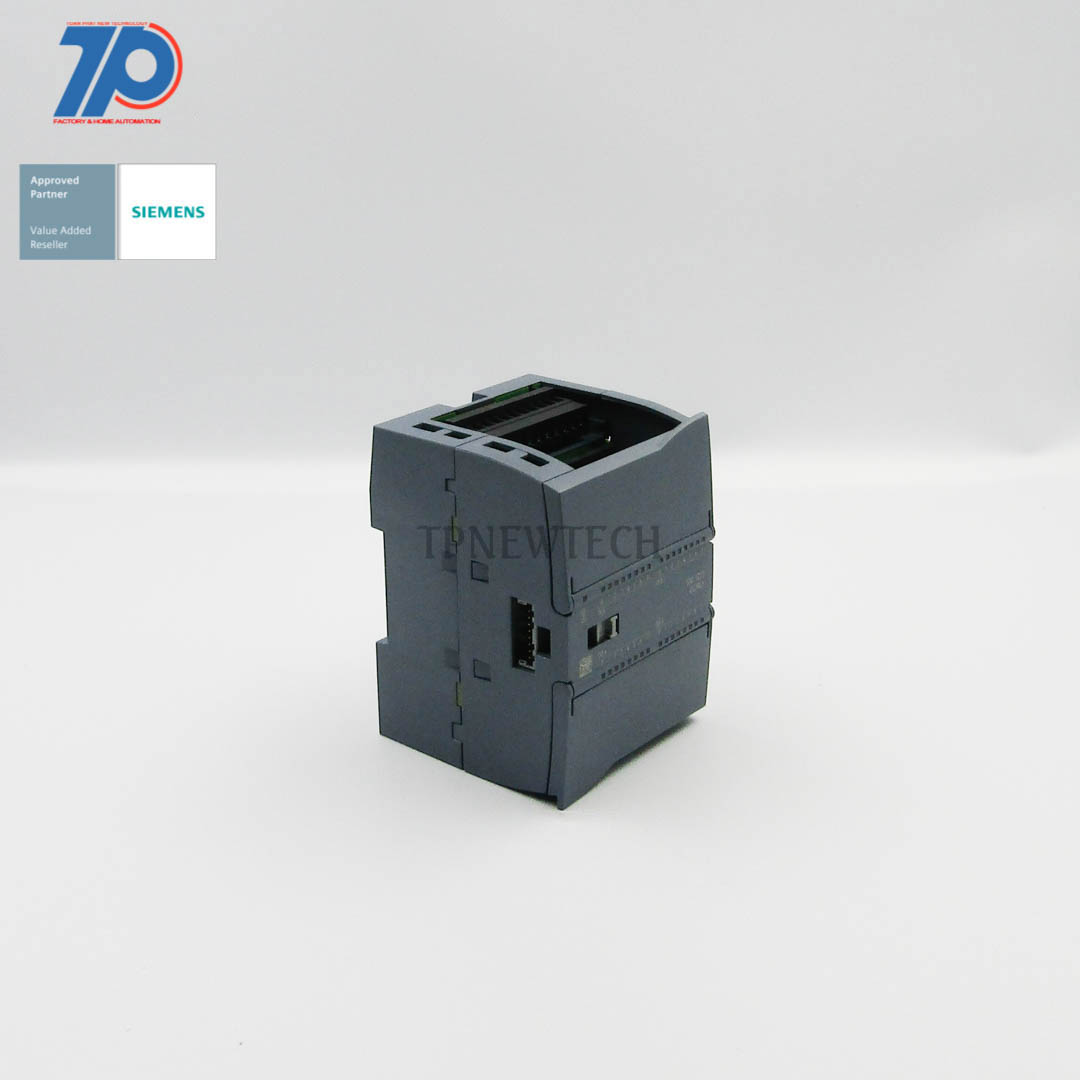

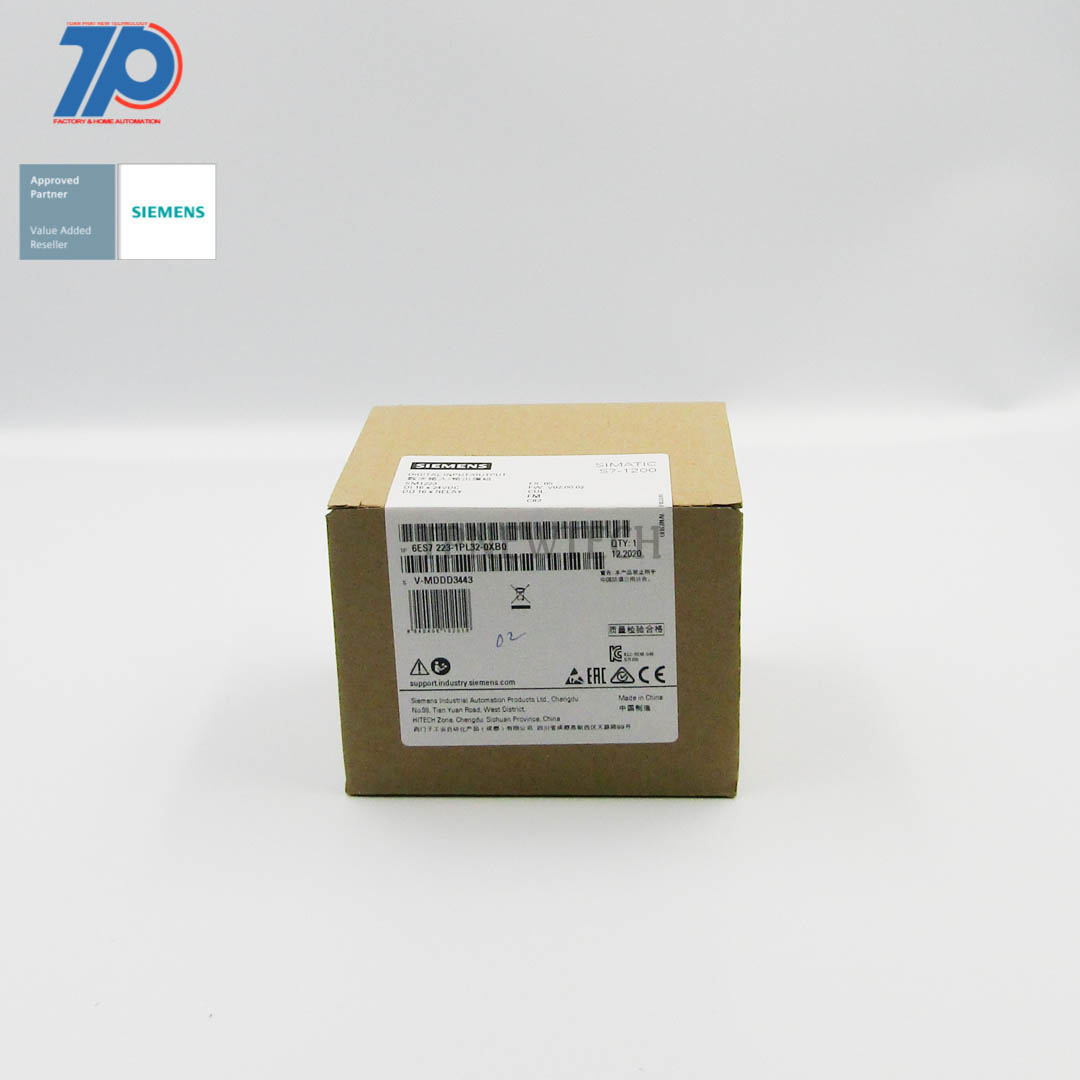

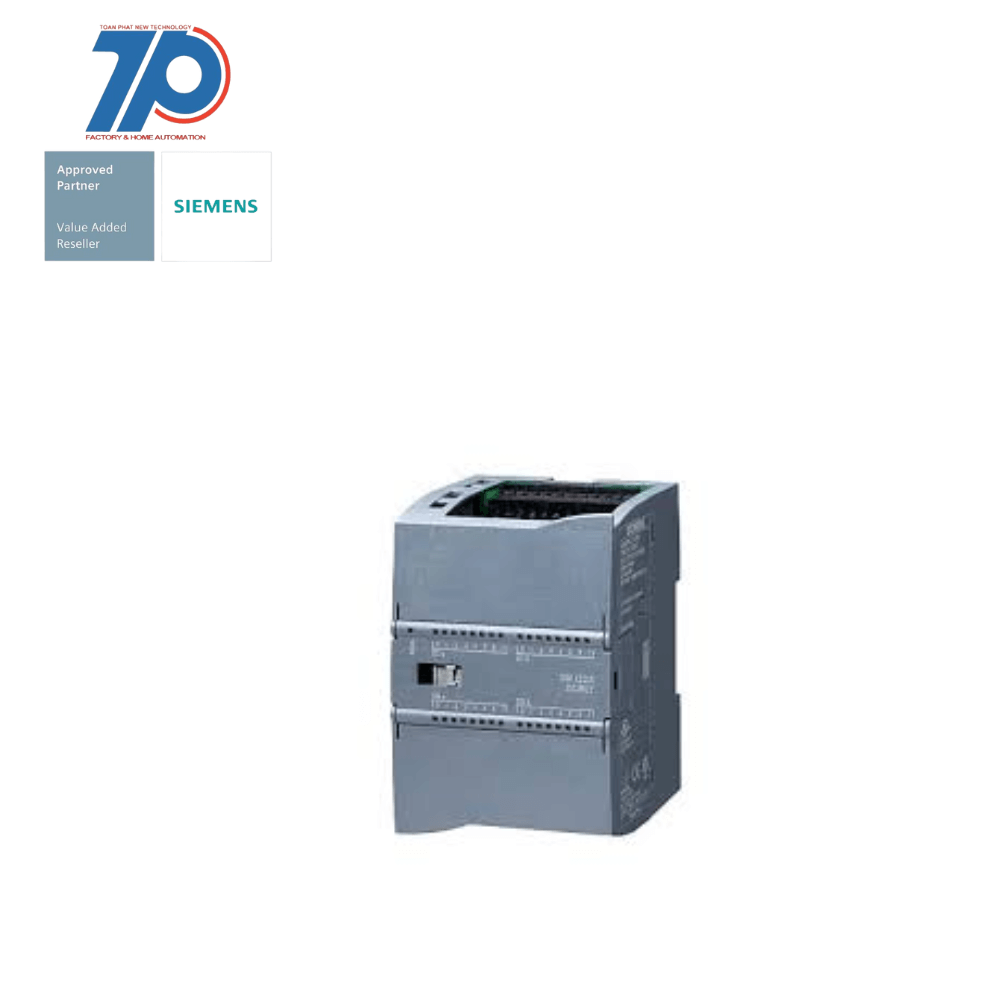

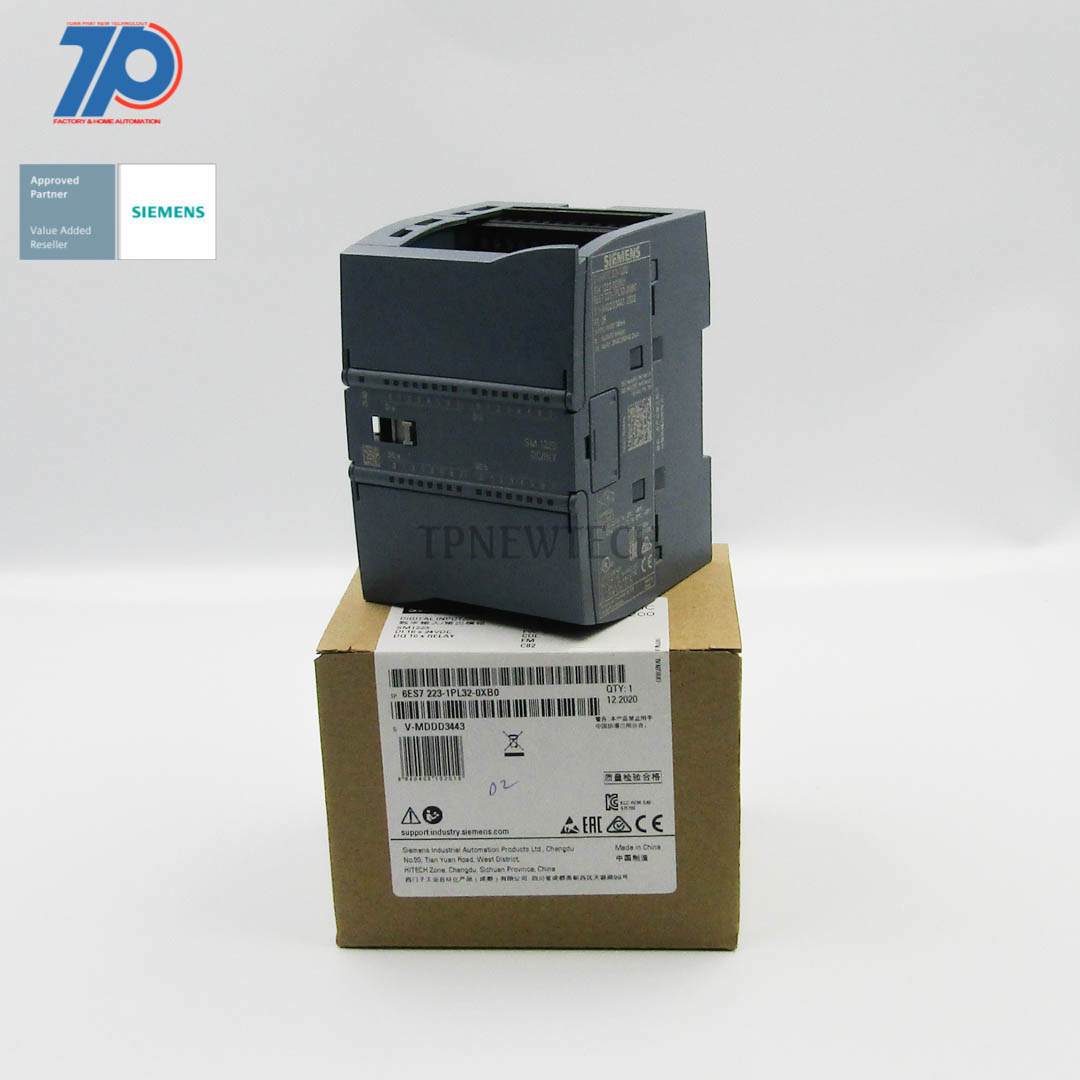

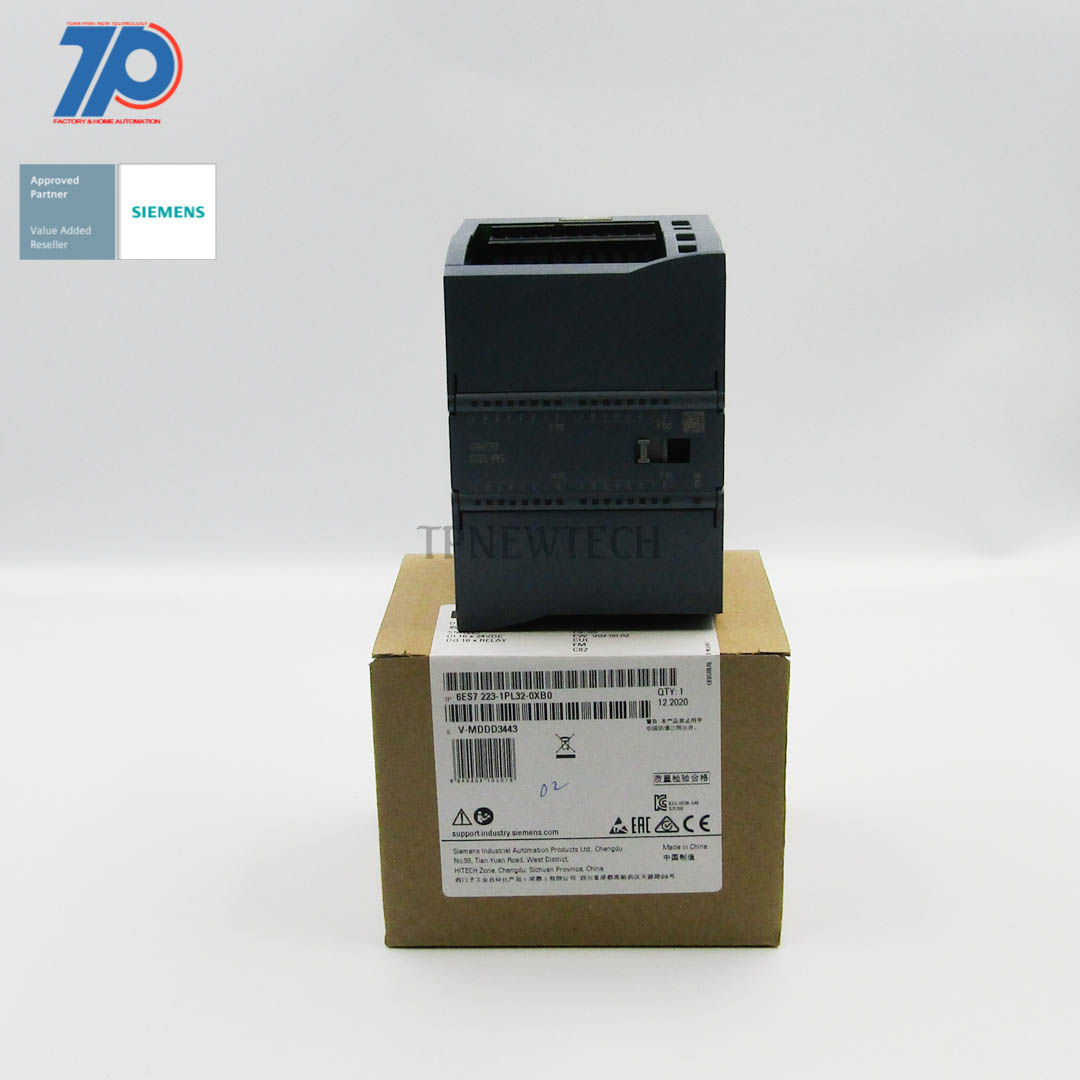

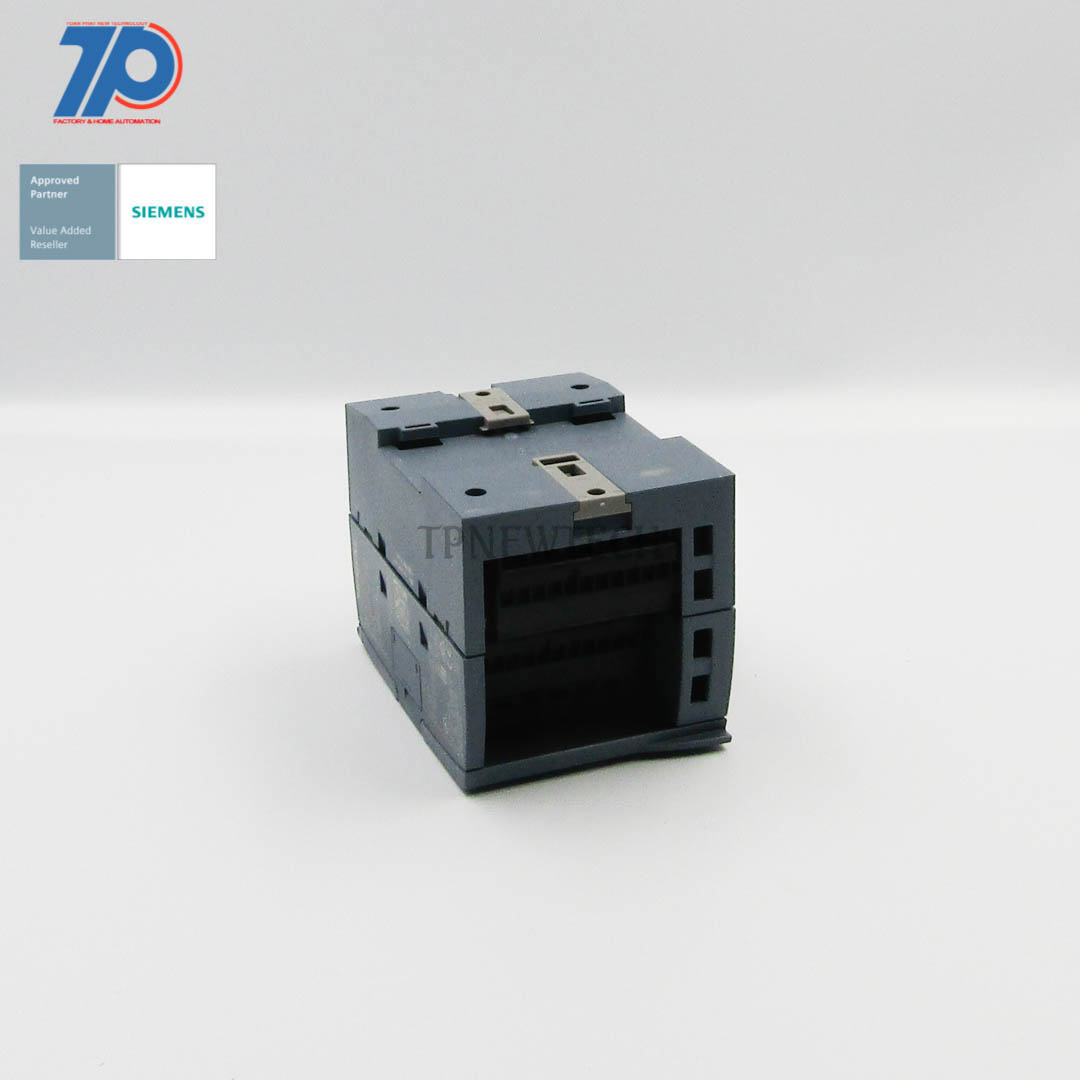

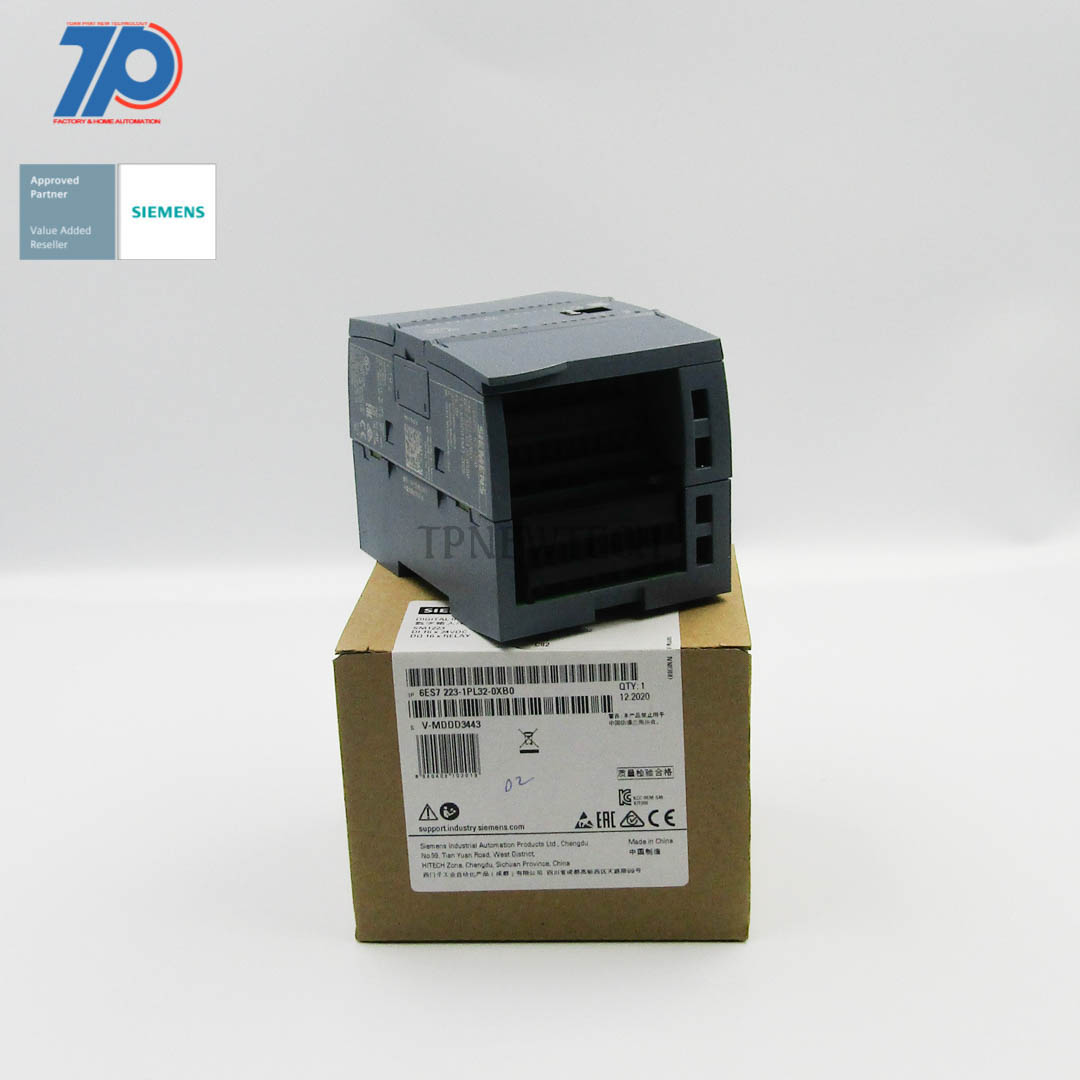

Module mở rộng 6ES7223-1PL32-0XB0

5,659,000 4,035,000

--- Giá chưa bao gồm VAT ----

Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng  (Luôn có giá tốt khi mua số lượng nhiều)

Bảo hành 12 tháng khi mua tại TPNewtech.

Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình

-> Hãy Liên hệ ngay cho chúng tôi



Chi Tiết Sản Phẩm

Material ID: 6ES7223-1PL32-0XB0

SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, relay 2 A SIMATIC S7-1200 Basic Controller – Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure.

Additional Information

Support

Technical Data

Manuals / Links

(Giá chưa bao gồm VAT)

Module mở rộng 6ES7223-1PL32-0XB0 18

SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, relay 2 A
General information
Product type designation SM 1223, DI 16×24 V DC, DQ 16x relay
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Input current
from backplane bus 5 V DC, max. 180 mA
Digital inputs
● from load voltage L+ (without load), max. 4 mA/input 11 mA/relay
Output voltage
Power supply to the transmitters
● present Yes
Power loss
Power loss, typ. 10 W
Digital inputs
Number of digital inputs 16
● in groups of 2
Input characteristic curve in accordance with IEC 61131, type 1 Yes
Number of simultaneously controllable inputs
all mounting positions
— up to 40 °C, max. 16
horizontal installation
— up to 40 °C, max. 16
— up to 50 °C, max. 16
vertical installation
— up to 40 °C, max. 16
Input voltage
● Type of input voltage DC
● Rated value (DC) 24 V
● for signal “0” 5 V DC at 1 mA
● for signal “1” 15 V DC at 2.5 mA
Input current
● for signal “0”, max. (permissible quiescent current) 1 mA
● for signal “1”, min. 2.5 mA
● for signal “1”, typ. 4 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
for interrupt inputs
— parameterizable Yes
Cable length
● shielded, max. 500 m
● unshielded, max. 300 m
Digital outputs
Number of digital outputs 16
● in groups of 4
Short-circuit protection No; to be provided externally
Switching capacity of the outputs
● with resistive load, max. 2 A
● on lamp load, max. 30 W with DC, 200 W with AC
Output voltage
● Rated value (DC) 5 V DC to 30 V DC
● Rated value (AC) 5 V AC to 250 V AC
Output current
● for signal “1” permissible range, max. 2 A
Output delay with resistive load
● “0” to “1”, max. 10 ms
● “1” to “0”, max. 10 ms
Total current of the outputs (per group)
horizontal installation
— up to 50 °C, max. 8 A; Current per mass
Relay outputs
● Number of relay outputs 16
● Rated supply voltage of relay coil L+ (DC) 24 V
● Number of operating cycles, max. mechanically 10 million, at rated load voltage 100 000
Switching capacity of contacts
— with inductive load, max. 2 A
— on lamp load, max. 30 W with DC, 200 W with AC
— with resistive load, max. 2 A
Cable length
● shielded, max. 500 m
● unshielded, max. 150 m
Interrupts/diagnostics/status information
Alarms
● Diagnostic alarm Yes
Diagnostics indication LED
● for status of the inputs Yes
● for status of the outputs Yes
Potential separation
Potential separation digital inputs
● between the channels, in groups of 2
Potential separation digital outputs
● between the channels Relays
● between the channels, in groups of 4
● between the channels and backplane bus 1500 V AC for 1 minute
Permissible potential difference
between different circuits 750 V AC for 1 minute
Degree and class of protection
IP degree of protection IP20
Standards, approvals, certificates
CE mark Yes
CSA approval Yes
UL approval Yes
cULus Yes
FM approval Yes
RCM (formerly C-TICK) Yes
KC approval Yes
Marine approval Yes
Ambient conditions
Free fall
● Fall height, max. 0.3 m; five times, in product package
Ambient temperature during operation
● min. -20 °C
● max. 60 °C; Number of simultaneously activated outputs: 8 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 16 at 55 °C horizontal or 45 °C vertical
● horizontal installation, min. -20 °C
● horizontal installation, max. 60 °C
● vertical installation, min. -20 °C
● vertical installation, max. 50 °C
● permissible temperature change 5°C to 55°C, 3°C / minute
Ambient temperature during storage/transportation
● min. -40 °C
● max. 70 °C
Air pressure acc. to IEC 60068-2-13
● Storage/transport, min. 660 hPa
● Storage/transport, max. 1 080 hPa
Relative humidity
● Operation at 25 ℃ without condensation, max. 95 %
Connection method
required front connector Yes
Mechanics/material
Enclosure material (front)
● Plastic Yes
Dimensions
Width 70 mm
Height 100 mm
Depth 75 mm
Weights
Weight, approx. 350 g
last modified: 06/09/2020
Trọng lượng0.32 kg
Country of Origin

CN
