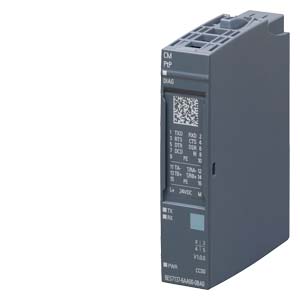

6ES7137-6AA00-0BA0 Siemens S7-1500 Module mở rộng giao tiếp

--- Giá chưa bao gồm VAT ----

Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng  (Luôn có giá tốt khi mua số lượng nhiều)

Bảo hành 12 tháng khi mua tại TPNewtech.

Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình

-> Hãy Liên hệ ngay cho chúng tôi



Chi Tiết Sản Phẩm

Additional Information

Support

  • FAQ
  • Siemens Support Portal
  • Siemens EcoTechProfil (SEP)
  • Application Example
  • Sales Brochure
  • 3D PDF

Technical Data

Manuals / Links

  • Manuals
  • Product Note
  • Download
  • REACH Information
  • Safety Data Sheet
  • Environmental Product Declaration

####

FEATUREVALUE
Wall mounting/direct mountingfalse
Supporting protocol for LONfalse
Fieldbus connection over separate bus coupler possibletrue
System accessorytrue
Supporting protocol for other bus systemstrue
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFINET IOfalse
Rail mounting possibletrue
Rack-assembly possiblefalse
Supporting protocol for INTERBUSfalse
Suitable for safety functionsfalse
Radio standard eGPRSfalse
Radio standard Bluetoothfalse
Front built-in possiblefalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for SafetyBUS pfalse
Width15 mm
Supporting protocol for KNXfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for CANfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supply voltage DC28.8 V
Height73 mm
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Supporting protocol for PROFIBUSfalse
With potential separationtrue
Radio standard GSMfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
IO link masterfalse
Degree of protection (IP)IP20
Appendant operation agent (Ex ib)false
Supporting protocol for TCP/IPfalse
Radio standard LTEfalse
Supporting protocol for SERCOSfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFIsafefalse
Radio standard UMTSfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for EtherNet/IPfalse
Supply voltage DC19.2 V
Appendant operation agent (Ex ia)false
Depth58 mm
  • SIMATIC ET 200SP
  • CM PTP communication module for serial connection RS422, RS485 and RS232, Freeport, 3964 (R), USS, MODBUS RTU Master, Slave, 115200 Kbit/s
  • Modular, scalable, and highly flexible distributed I/O system
  • Small footprint, well-suited for installation in small control boxes near the machine
  • Modules can be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS
  • Expandable with up to 64 I/O modules
  • Comprehensive range of modules with different characteristics
  • Modules available with standard functions (ST), extended functions and diagnostics (HF/HS), or basic functions (BA)
  • Easy application with free selection of PROFINET connection technology, tool-free wiring, improved accessibility of wiring, and channel-precise diagnostic functions
  • Capability of swapping modules and terminal boxes during operation
  • Communication modules expand communication capabilities with additional functions or interfaces
Trọng lượng0.04 kg
Country of Origin

DE



HỖ TRỢ KỸ THUẬT

Đội ngũ kỹ thuật của chúng tôi luôn sẵn sàng tư vấn và hướng dẫn quý khách sửa chữa bảo trì hay bất cứ điều gì liên quan đến sản phẩm.

Thời gian bảo hành 12 tháng
THEO TIÊU CHUẨN NHÀ SẢN XUẤT

Áp dụng cho tất cả các sản phẩm đang kinh doanh tại www.tpnewtech.com

Chính sách đổi trả:

Khách hàng có quyền ĐỔI sản phẩm khác hoặc TRẢ sản phẩm và lấy lại tiền với chi tiết như sau:

+ Đổi trả sản phẩm bị lỗi (Do nhà sản xuất ): sau 24 giờ kề từ khi ký xác nhận trong “ Biên bản giao nhận” : ĐỔI TRẢ MIỄN PHÍ HOẶC HOÀN TIỀN ( không bao gồm phí vận chuyển )

+ Sản phẩm “Không bị lỗi” hoặc “Bị lỗi” do NGƯỜI SỬ DỤNG: Không áp dụng đổi trả hoặc khách hàng chịu chi phí sửa chữa.

Điều kiện đổi trả:

– Còn hóa đơn mua hàng

– Còn đầy đủ hộp sản phẩm

– Còn đầy đủ phiếu bảo hành (nếu có) và phụ kiện đi kèm

– Quà khuyến mãi có giá trị (nếu có)

– Trường hợp thiếu các điều kiện trên: thu phí theo qui định. Ngoài ra, KHÔNG thu thêm bất kỳ phí nào khác

– Tem bảo hành còn nguyên: không bị rách hoặc mờ
