6AV2124-0QC13-0AX0

Giá: Liên Hệ

Sản phẩm hiện đang có sẵn tại TPNEWTECH.
Gọi ngay cho chúng tôi để nhận báo giá và ưu đãi tốt nhất.

Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 3 - 7 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

 Hàng chính hãng SIEMENS

Freeship nội thành HCM

Gọi Báo Giá Nhanh Hỗ trợ kỹ thuật

Chi Tiết Sản Phẩm

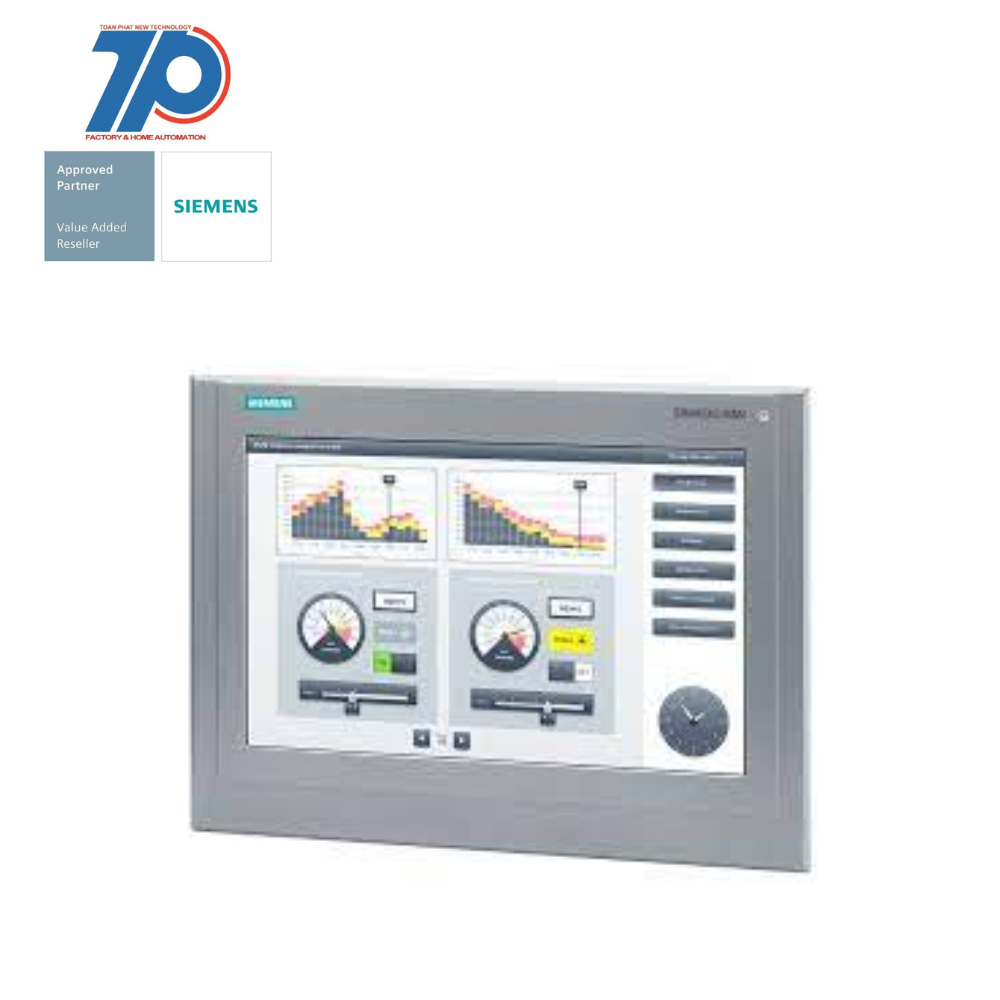

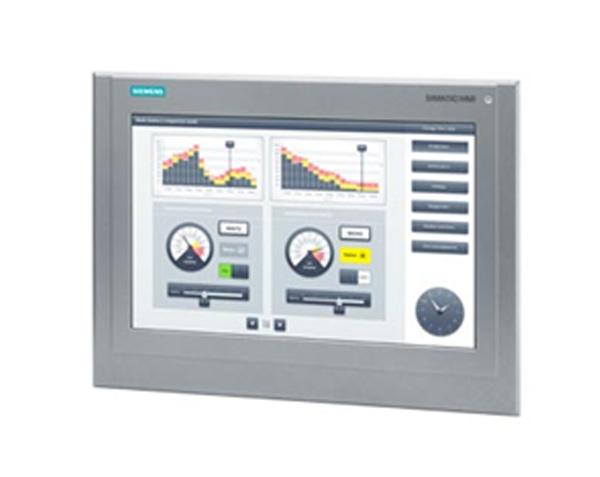

SIMATIC HMI TP1500 Comfort Outdoor, Comfort Panel, Touch operation, 15″ widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP

SIMATIC HMI TP1500 Comfort Outdoor, Comfort Panel, Touch operation, 15″ widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP
General information
Product type designationTP1500 Comfort Outdoor
Display
Design of displayTFT, bonded, daylight-readable
Screen diagonal15.4 in
Display width331.2 mm
Display height207 mm
Number of colors16 777 216
Resolution (pixels)
● Horizontal image resolution1 280 Pixel
● Vertical image resolution800 Pixel
Backlighting
● MTBF backlighting (at 25 °C)50 000 h
● Backlight dimmableYes; LED, can be dimmed manually or automatically
Control elements
Keyboard fonts
● Function keys
— Number of function keys0
— Number of function keys with LEDs0
● Keys with LEDNo
● System keysNo
● Numeric keyboardYes; Onscreen keyboard
● alphanumeric keyboardYes; Onscreen keyboard
Touch operation
● Design as touch screenYes; analog, resistive
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)
— F1…Fx0
● Direct keys (keys as S7 input I/O)
— F1…Fx0
● Direct keys (touch buttons as S7 input I/O)40
Installation type/mounting
Mounting positionvertical
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation35°
Supply voltage
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption (rated value)1.3 A
Starting current inrush I²t0.5 A²·s
Power
Active power input, typ.32 W
Processor
Processor typeX86
Memory
FlashYes
RAMYes
Memory available for user data12 Mbyte
Type of output
Info LEDNo
Power LEDNo
Error LEDNo
Acoustics
● BuzzerNo
● SpeakerYes
Time of day
Clock
● Hardware clock (real-time)Yes
● Software clockNo
● retentiveYes; Back-up duration typically 6 weeks
● synchronizableYes
Interfaces
Number of industrial Ethernet interfaces2
Number of RS 485 interfaces1; RS 422 / 485 combined
Number of RS 422 interfaces1
Number of RS 232 interfaces0
Number of USB interfaces2; USB 2.0
● USB Mini B1; 5-pole
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots2
With software interfacesNo
Industrial Ethernet
● Industrial Ethernet status LED2
● Number of ports of the integrated switch2
Protocols
PROFINETYes
Supports protocol for PROFINET IOYes
IRTYes; WinCC V13 SP1 HSP or higher
PROFIBUSYes
MPIYes
Protocols (Ethernet)
● TCP/IPYes
● DHCPYes
● SNMPYes
● DCPYes
● LLDPYes
WEB characteristics
● HTTPYes
● HTTPSNo
● HTMLYes
● XMLNo
● CSSYes
● Active XNo
● JavaScriptYes
● Java VMNo
Redundancy mode
Media redundancy
— MRPYes; WinCC V13 SP1 HSP or higher
Further protocols
● CANNo
● EtherNet/IPYes
● MODBUSYes
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areasYes
● Limit class B, for use in residential areasNo
Degree and class of protection
IP (at the front)IP66
IP (rear)IP20
NEMA (front)
● Enclosure Type 4 at the frontYes
● Enclosure Type 4x at the frontYes
Standards, approvals, certificates
CE markYes
cULusYes
RCM (formerly C-TICK)Yes
KC approvalYes
Use in hazardous areas
● ATEX Zone 2Yes; For inscription on device rating plate
● ATEX Zone 22Yes; For inscription on device rating plate
● IECEx Zone 2Yes; For inscription on device rating plate
● IECEx Zone 22Yes; For inscription on device rating plate
● cULus Class I Zone 1No
● cULus Class I Zone 2, Division 2Yes; For inscription on device rating plate
● FM Class I Division 2Yes; For inscription on device rating plate
Marine approval
● Germanischer Lloyd (GL)Yes
● American Bureau of Shipping (ABS)Yes
● Bureau Veritas (BV)Yes; Available soon
● Det Norske Veritas (DNV)Yes
● Korean Register of Shipping (KRS)No; Available soon
● Lloyds Register of Shipping (LRS)Yes
● Nippon Kaiji Kyokai (Class NK)Yes; Available soon
● Polski Rejestr Statkow (PRS)No
● Chinese Classification Society (CCS)Yes; Available soon
● Compass working clearance5 m
Ambient conditions
Suited for indoor useYes
Suited for outdoor useYes; Powder-coated, UV resistant
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min.-30 °C
— For vertical installation, max.60 °C; (55 °C, see entry ID: 64847814)
● Operation (max. tilt angle)
— At maximum tilt angle, min.-30 °C
— At maximum tilt angle, min.50 °C
● Operation (vertical installation, portrait format)
— For vertical installation, min.-30 °C
— For vertical installation, max.50 °C
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.-30 °C
— At maximum tilt angle, min.45 °C
Ambient temperature during storage/transportation
● min.-30 °C
● max.70 °C
Altitude during operation relating to sea level
● Installation altitude above sea level, max.3 000 m; Depending on the operating temperature
Relative humidity
● Operation, max.90 %; no condensation
Operating systems
proprietaryNo
pre-installed operating system
● Windows CEYes
Configuration
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes
Configuration software
● STEP 7 Basic (TIA Portal)No
● STEP 7 Professional (TIA Portal)No
● WinCC flexible CompactNo
● WinCC flexible StandardNo
● WinCC flexible AdvancedNo
● WinCC Basic (TIA Portal)No
● WinCC Comfort (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher
● WinCC Advanced (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher
● WinCC Professional (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher
Languages
Online languages
● Number of online/runtime languages32
Project languages
● Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesYes
Applications/options
● Web browserYes
● Pocket WordYes
● Pocket ExcelYes
● PDF ViewerYes
● Media PlayerYes
● SIMATIC WinCC Sm@rtServerYes
● SIMATIC WinCC AuditYes
Number of Visual Basic ScriptsYes
Task planner
● time-controlledYes
● task-controlledYes
Help system
● Number of characters per info text70
Message system
● Number of alarm classes32
● Bit messages
— Number of bit messages4 000
● Analog messages
— Number of analog messages200
● S7 alarm number procedureYes
● System messages HMIYes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)Yes
● Number of characters per message80
● Number of process values per message8
● Acknowledgment groupsYes
● Message indicatorYes
● Message buffer
— Number of entries1 024
— Circulating bufferYes
— retentiveYes
— maintenance-freeYes
Recipe management
● Number of recipes300
● Data records per recipe500
● Entries per data record1 000
● Size of internal recipe memory2 Mbyte
● Recipe memory expandableYes
Variables
● Number of variables per device2 048
● Number of variables per screen400
● Limit valuesYes
● MultiplexingYes
● StructuresYes
● ArraysYes
Images
● Number of configurable images500
● Permanent window/defaultYes
● Global imageYes
● Image selection by PLCYes
● Image number in the PLCYes
Image objects
● Number of objects per image400
● Text fieldsYes
● I/O fieldsYes
● Graphic I/O fields (graphics list)Yes
● Symbolic I/O fields (text list)Yes
● Date/time fieldsYes
● SwitchesYes
● ButtonsYes
● Graphic displayYes
● IconsYes
● Geometric objectsYes
Complex image objects
● Number of complex objects per screen20
● Alarm viewYes
● Trend viewYes
● User viewYes
● Status/controlYes
● Sm@rtClient viewYes
● Recipe viewYes
● f(x) trend viewYes
● System diagnostics viewYes
● Media PlayerYes
● IP camera displayYes; Webcam type see FAQs
● Bar graphsYes
● SlidersYes
● Pointer instrumentsYes
● Analog/digital clockYes
Lists
● Number of text lists per project500
● Number of entries per text list500
● Number of graphics lists per project500
● Number of entries per graphics list500
Archiving
● Number of archives per device50
● Number of entries per archive20 000
● Message archiveYes
● Process value archiveYes
● Archiving methods
— Sequential archiveYes
— Short-term archiveYes
● Memory location
— Memory cardYes
— USB memoryYes
— EthernetYes
● Data storage format
— CSVYes
— TXTYes
— RDBYes
Security
● Number of user groups50
● Number of user rights32
● Number of users50
● Password export/importYes
● SIMATIC LogonYes
Logging through printer
● AlarmsYes
● Report (shift log)Yes
● HardcopyYes
● Electronic print to fileYes; PDF, HTML
Character sets
● Keyboard fonts
— US EnglishYes
Transfer (upload/download)
● MPI/PROFIBUS DPYes
● USBYes
● EthernetYes
● using external storage mediumYes; Backup/restore
Process coupling
● S7-1200Yes
● S7-1500Yes
● S7-200Yes
● S7-300/400Yes
● LOGO!Yes
● WinACYes
● SINUMERIKYes; with SINUMERIK option package
● SIMOTIONYes
● Allen Bradley (EtherNet/IP)Yes
● Allen Bradley (DF1)Yes
● Mitsubishi (MC TCP/IP)Yes
● Mitsubishi (FX)Yes
● OMRON (FINS TCP)No
● OMRON (LINK/Multilink)Yes
● Modicon (Modbus TCP/IP)Yes
● Modicon (Modbus)Yes
● OPC UA ClientYes
● OPC UA ServerYes
Service tools/configuration aids
● Backup/Restore manuallyYes
● Backup/Restore automaticallyYes
● SimulationYes
● Device switchoverYes
Peripherals/Options
PrinterYes
SIMATIC HMI MM memory card: Multi Media CardYes
SIMATIC HMI SD memory card: Secure Digital memory cardYes
SIMATIC HMI CF memory card Compact Flash CardNo
USB memoryYes; e.g. USB RFID reader, see FAQ entry ID: 99808171
SIMATIC IPC USB Flashdrive (USB stick)Yes
SIMATIC HMI USB stickYes
Network cameraYes; See FAQ Entry ID: 62383298 and entry ID: 65647473
Accessories
Expansion moduleOptional e.g. USB RFID reader, see FAQ entry ID: 99808171
Further accessories are availableYes; Mounting clips and 2-pin power supply connector
Mechanics/material
Enclosure material (front)
● PlasticNo
● AluminumYes; Powder-coated, UV resistant
● Stainless steelNo
Dimensions
Width of the housing front415 mm
Height of housing front310 mm
Mounting cutout, width396 mm
Mounting cutout, height291 mm
Overall depth77 mm
Weights
Weight without packaging4 kg
Weight incl. packaging6.2 kg
Other
Note:Power, quantity structure and performance correspond to a standard 12″ Comfort Panel
last modified:05/13/2020
0/5 (0 Reviews)

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “6AV2124-0QC13-0AX0”



HỖ TRỢ KỸ THUẬT

Đội ngũ kỹ thuật của chúng tôi luôn sẵn sàng tư vấn và hướng dẫn quý khách sửa chữa bảo trì hay bất cứ điều gì liên quan đến sản phẩm.

Thời gian bảo hành 12 tháng
1 đổi 1 nếu có bất  kỳ lỗi từ nhà sản xuất

Áp dụng cho tất cả các sản phẩm đang kinh doanh tại www.tpnewtech.com

Chính sách đổi trả:

Khách hàng có quyền ĐỔI sản phẩm khác hoặc TRẢ sản phẩm và lấy lại tiền với chi tiết như sau:

+ Đổi trả sản phẩm bị lỗi (Do nhà sản xuất ): sau 24 giờ kề từ khi ký xác nhận trong “ Biên bản giao nhận” : ĐỔI TRẢ MIỄN PHÍ HOẶC HOÀN TIỀN ( không bao gồm phí vận chuyển )

+ Sản phẩm “Không bị lỗi” hoặc “Bị lỗi” do NGƯỜI SỬ DỤNG: Không áp dụng đổi trả hoặc khách hàng chịu chi phí sửa chữa.

Điều kiện đổi trả:

– Còn hóa đơn mua hàng

– Còn đầy đủ hộp sản phẩm

– Còn đầy đủ phiếu bảo hành (nếu có) và phụ kiện đi kèm

– Quà khuyến mãi có giá trị (nếu có)

– Trường hợp thiếu các điều kiện trên: thu phí theo qui định. Ngoài ra, KHÔNG thu thêm bất kỳ phí nào khác

– Tem bảo hành còn nguyên: không bị rách hoặc mờ

Chi Tiết Sản Phẩm

SIMATIC HMI TP1500 Comfort Outdoor, Comfort Panel, Touch operation, 15″ widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP

SIMATIC HMI TP1500 Comfort Outdoor, Comfort Panel, Touch operation, 15″ widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP
General information
Product type designationTP1500 Comfort Outdoor
Display
Design of displayTFT, bonded, daylight-readable
Screen diagonal15.4 in
Display width331.2 mm
Display height207 mm
Number of colors16 777 216
Resolution (pixels)
● Horizontal image resolution1 280 Pixel
● Vertical image resolution800 Pixel
Backlighting
● MTBF backlighting (at 25 °C)50 000 h
● Backlight dimmableYes; LED, can be dimmed manually or automatically
Control elements
Keyboard fonts
● Function keys
— Number of function keys0
— Number of function keys with LEDs0
● Keys with LEDNo
● System keysNo
● Numeric keyboardYes; Onscreen keyboard
● alphanumeric keyboardYes; Onscreen keyboard
Touch operation
● Design as touch screenYes; analog, resistive
Expansions for operator control of the process
● DP direct LEDs (LEDs as S7 output I/O)
— F1…Fx0
● Direct keys (keys as S7 input I/O)
— F1…Fx0
● Direct keys (touch buttons as S7 input I/O)40
Installation type/mounting
Mounting positionvertical
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation35°
Supply voltage
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption (rated value)1.3 A
Starting current inrush I²t0.5 A²·s
Power
Active power input, typ.32 W
Processor
Processor typeX86
Memory
FlashYes
RAMYes
Memory available for user data12 Mbyte
Type of output
Info LEDNo
Power LEDNo
Error LEDNo
Acoustics
● BuzzerNo
● SpeakerYes
Time of day
Clock
● Hardware clock (real-time)Yes
● Software clockNo
● retentiveYes; Back-up duration typically 6 weeks
● synchronizableYes
Interfaces
Number of industrial Ethernet interfaces2
Number of RS 485 interfaces1; RS 422 / 485 combined
Number of RS 422 interfaces1
Number of RS 232 interfaces0
Number of USB interfaces2; USB 2.0
● USB Mini B1; 5-pole
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots2
With software interfacesNo
Industrial Ethernet
● Industrial Ethernet status LED2
● Number of ports of the integrated switch2
Protocols
PROFINETYes
Supports protocol for PROFINET IOYes
IRTYes; WinCC V13 SP1 HSP or higher
PROFIBUSYes
MPIYes
Protocols (Ethernet)
● TCP/IPYes
● DHCPYes
● SNMPYes
● DCPYes
● LLDPYes
WEB characteristics
● HTTPYes
● HTTPSNo
● HTMLYes
● XMLNo
● CSSYes
● Active XNo
● JavaScriptYes
● Java VMNo
Redundancy mode
Media redundancy
— MRPYes; WinCC V13 SP1 HSP or higher
Further protocols
● CANNo
● EtherNet/IPYes
● MODBUSYes
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areasYes
● Limit class B, for use in residential areasNo
Degree and class of protection
IP (at the front)IP66
IP (rear)IP20
NEMA (front)
● Enclosure Type 4 at the frontYes
● Enclosure Type 4x at the frontYes
Standards, approvals, certificates
CE markYes
cULusYes
RCM (formerly C-TICK)Yes
KC approvalYes
Use in hazardous areas
● ATEX Zone 2Yes; For inscription on device rating plate
● ATEX Zone 22Yes; For inscription on device rating plate
● IECEx Zone 2Yes; For inscription on device rating plate
● IECEx Zone 22Yes; For inscription on device rating plate
● cULus Class I Zone 1No
● cULus Class I Zone 2, Division 2Yes; For inscription on device rating plate
● FM Class I Division 2Yes; For inscription on device rating plate
Marine approval
● Germanischer Lloyd (GL)Yes
● American Bureau of Shipping (ABS)Yes
● Bureau Veritas (BV)Yes; Available soon
● Det Norske Veritas (DNV)Yes
● Korean Register of Shipping (KRS)No; Available soon
● Lloyds Register of Shipping (LRS)Yes
● Nippon Kaiji Kyokai (Class NK)Yes; Available soon
● Polski Rejestr Statkow (PRS)No
● Chinese Classification Society (CCS)Yes; Available soon
● Compass working clearance5 m
Ambient conditions
Suited for indoor useYes
Suited for outdoor useYes; Powder-coated, UV resistant
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min.-30 °C
— For vertical installation, max.60 °C; (55 °C, see entry ID: 64847814)
● Operation (max. tilt angle)
— At maximum tilt angle, min.-30 °C
— At maximum tilt angle, min.50 °C
● Operation (vertical installation, portrait format)
— For vertical installation, min.-30 °C
— For vertical installation, max.50 °C
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.-30 °C
— At maximum tilt angle, min.45 °C
Ambient temperature during storage/transportation
● min.-30 °C
● max.70 °C
Altitude during operation relating to sea level
● Installation altitude above sea level, max.3 000 m; Depending on the operating temperature
Relative humidity
● Operation, max.90 %; no condensation
Operating systems
proprietaryNo
pre-installed operating system
● Windows CEYes
Configuration
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes
Configuration software
● STEP 7 Basic (TIA Portal)No
● STEP 7 Professional (TIA Portal)No
● WinCC flexible CompactNo
● WinCC flexible StandardNo
● WinCC flexible AdvancedNo
● WinCC Basic (TIA Portal)No
● WinCC Comfort (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher
● WinCC Advanced (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher
● WinCC Professional (TIA Portal)Yes; WinCC V13 SP1 Update 7 + HSP or higher
Languages
Online languages
● Number of online/runtime languages32
Project languages
● Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesYes
Applications/options
● Web browserYes
● Pocket WordYes
● Pocket ExcelYes
● PDF ViewerYes
● Media PlayerYes
● SIMATIC WinCC Sm@rtServerYes
● SIMATIC WinCC AuditYes
Number of Visual Basic ScriptsYes
Task planner
● time-controlledYes
● task-controlledYes
Help system
● Number of characters per info text70
Message system
● Number of alarm classes32
● Bit messages
— Number of bit messages4 000
● Analog messages
— Number of analog messages200
● S7 alarm number procedureYes
● System messages HMIYes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)Yes
● Number of characters per message80
● Number of process values per message8
● Acknowledgment groupsYes
● Message indicatorYes
● Message buffer
— Number of entries1 024
— Circulating bufferYes
— retentiveYes
— maintenance-freeYes
Recipe management
● Number of recipes300
● Data records per recipe500
● Entries per data record1 000
● Size of internal recipe memory2 Mbyte
● Recipe memory expandableYes
Variables
● Number of variables per device2 048
● Number of variables per screen400
● Limit valuesYes
● MultiplexingYes
● StructuresYes
● ArraysYes
Images
● Number of configurable images500
● Permanent window/defaultYes
● Global imageYes
● Image selection by PLCYes
● Image number in the PLCYes
Image objects
● Number of objects per image400
● Text fieldsYes
● I/O fieldsYes
● Graphic I/O fields (graphics list)Yes
● Symbolic I/O fields (text list)Yes
● Date/time fieldsYes
● SwitchesYes
● ButtonsYes
● Graphic displayYes
● IconsYes
● Geometric objectsYes
Complex image objects
● Number of complex objects per screen20
● Alarm viewYes
● Trend viewYes
● User viewYes
● Status/controlYes
● Sm@rtClient viewYes
● Recipe viewYes
● f(x) trend viewYes
● System diagnostics viewYes
● Media PlayerYes
● IP camera displayYes; Webcam type see FAQs
● Bar graphsYes
● SlidersYes
● Pointer instrumentsYes
● Analog/digital clockYes
Lists
● Number of text lists per project500
● Number of entries per text list500
● Number of graphics lists per project500
● Number of entries per graphics list500
Archiving
● Number of archives per device50
● Number of entries per archive20 000
● Message archiveYes
● Process value archiveYes
● Archiving methods
— Sequential archiveYes
— Short-term archiveYes
● Memory location
— Memory cardYes
— USB memoryYes
— EthernetYes
● Data storage format
— CSVYes
— TXTYes
— RDBYes
Security
● Number of user groups50
● Number of user rights32
● Number of users50
● Password export/importYes
● SIMATIC LogonYes
Logging through printer
● AlarmsYes
● Report (shift log)Yes
● HardcopyYes
● Electronic print to fileYes; PDF, HTML
Character sets
● Keyboard fonts
— US EnglishYes
Transfer (upload/download)
● MPI/PROFIBUS DPYes
● USBYes
● EthernetYes
● using external storage mediumYes; Backup/restore
Process coupling
● S7-1200Yes
● S7-1500Yes
● S7-200Yes
● S7-300/400Yes
● LOGO!Yes
● WinACYes
● SINUMERIKYes; with SINUMERIK option package
● SIMOTIONYes
● Allen Bradley (EtherNet/IP)Yes
● Allen Bradley (DF1)Yes
● Mitsubishi (MC TCP/IP)Yes
● Mitsubishi (FX)Yes
● OMRON (FINS TCP)No
● OMRON (LINK/Multilink)Yes
● Modicon (Modbus TCP/IP)Yes
● Modicon (Modbus)Yes
● OPC UA ClientYes
● OPC UA ServerYes
Service tools/configuration aids
● Backup/Restore manuallyYes
● Backup/Restore automaticallyYes
● SimulationYes
● Device switchoverYes
Peripherals/Options
PrinterYes
SIMATIC HMI MM memory card: Multi Media CardYes
SIMATIC HMI SD memory card: Secure Digital memory cardYes
SIMATIC HMI CF memory card Compact Flash CardNo
USB memoryYes; e.g. USB RFID reader, see FAQ entry ID: 99808171
SIMATIC IPC USB Flashdrive (USB stick)Yes
SIMATIC HMI USB stickYes
Network cameraYes; See FAQ Entry ID: 62383298 and entry ID: 65647473
Accessories
Expansion moduleOptional e.g. USB RFID reader, see FAQ entry ID: 99808171
Further accessories are availableYes; Mounting clips and 2-pin power supply connector
Mechanics/material
Enclosure material (front)
● PlasticNo
● AluminumYes; Powder-coated, UV resistant
● Stainless steelNo
Dimensions
Width of the housing front415 mm
Height of housing front310 mm
Mounting cutout, width396 mm
Mounting cutout, height291 mm
Overall depth77 mm
Weights
Weight without packaging4 kg
Weight incl. packaging6.2 kg
Other
Note:Power, quantity structure and performance correspond to a standard 12″ Comfort Panel
last modified:05/13/2020
0/5 (0 Reviews)

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “6AV2124-0QC13-0AX0”

Khuyến Mãi – Siêu Ưu Đãi 2020

Chương Trình Khuyến Mãi

Chương trình hỗ trợ giá các dòng thiết bị tự động SIEMENS được bắt dầu từ tháng 6/2020. Toàn Phát xin được góp một phần nhỏ công sức của mình vào công cuộc phục hồi nền kinh tế nước nhà.
*Chương trình chỉ áp dụng cho các doanh nghiệp sản xuất và các công ty thi công dự án công trình.

Sản Phẩm Tương Tự

Sản Phẩm Tương Tự
