Hàng chính hãng SIEMENS

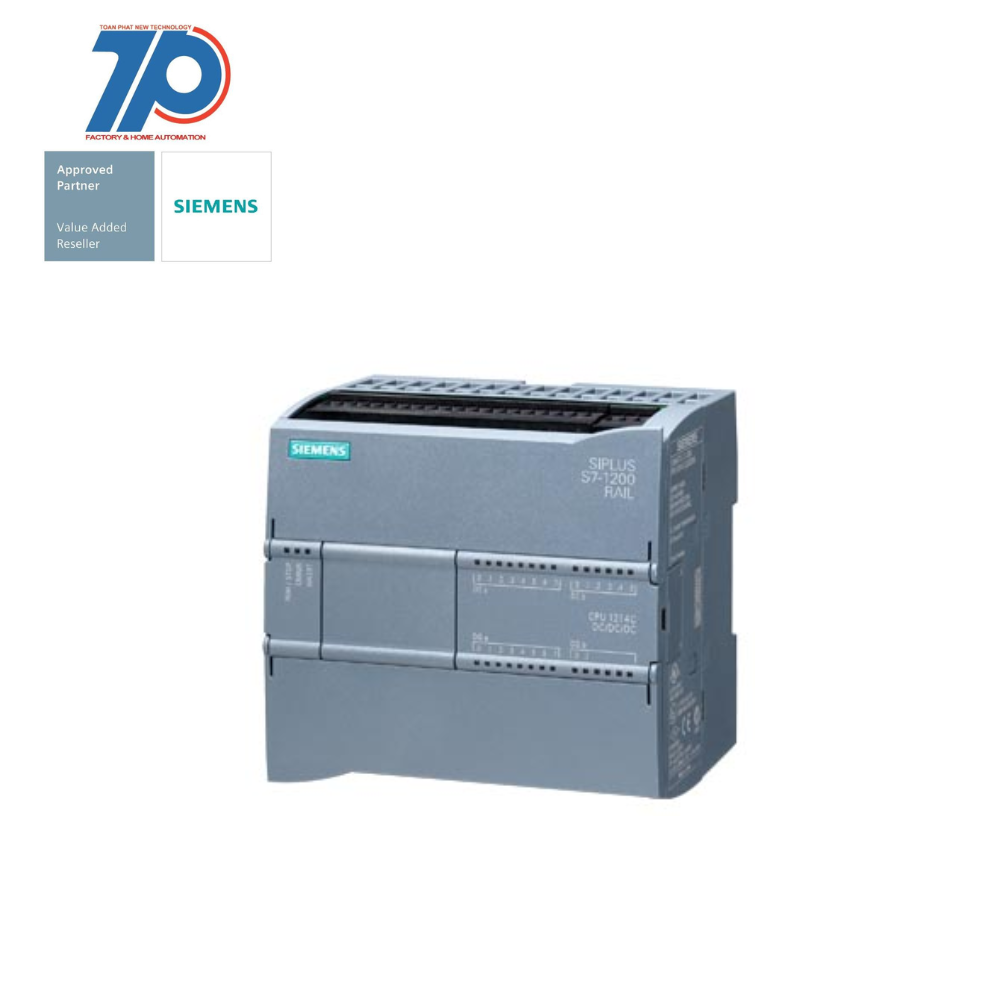

Freeship nội thành HCM6AG1214-1BG40-2XB0 SIPLUS S7-1200 CPU 1214C AC/DC/rơ le -40 … +70°C với lớp phủ bảo vệ dựa trên 6ES7214-1BG40-0XB0 Siemens
24,835,000₫
--- Giá chưa bao gồm VAT ----
Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng (Luôn có giá tốt khi mua số lượng nhiều)
Bảo hành 12 tháng khi mua tại TPNewtech.
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.
Luôn có chương trình hỗ trợ dự án công trình
-> Hãy Liên hệ ngay cho chúng tôi
Chi Tiết Sản Phẩm
SIPLUS S7-1200 CPU 1214C AC/DC/rơle cho cấu hình cá nhân hóa.
Thông số kỹ thuật:
Reference: 6ES7214-1BG40-0XB0
Operating temperature: -40…+70 °C, startup at -25 °C
Compact design with integrated I/O: 14 DI 24 V DC, 10 DQ relay 2 A, 2 AI 0-10 V DC
Power supply: AC 85-264 V AC @ 47-63 Hz
Program/data memory: 100 KB
Software configuration: STEP 7 Basic in TIA Portal
Expandable memory via memory card
Various communication options (PROFINET, Modbus, etc.)
Safety versions available
Lợi ích cho khách hàng:
Flexible deployment for a wide range of applications, from simple packaging machines to larger control systems.
Modular structure and integrated I/O save space in control cabinets.
Quick configuration and commissioning due to integrated software and shared data storage.
Maximized networking flexibility through various communication standards and modular options.
SIPLUS Extreme version protects against harsh environmental conditions, enhancing reliability.
Additional Information
Support | Technical Data | Manuals / Links
|
####
| FEATURE | VALUE |
| Height | 100 mm |
| Radio standard Bluetooth | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for EtherNet/IP | false |
| Redundancy | false |
| Number of digital outputs | 10 |
| Memory size | 100 kByte |
| Radio standard GPRS | false |
| With display | false |
| Supporting protocol for LON | false |
| Rail mounting possible | true |
| Supply voltage AC 50 Hz | 264 V |
| Number of interfaces PROFINET | 1 |
| Supporting protocol for Modbus | true |
| Supporting protocol for KNX | false |
| Supporting protocol for ASI | true |
| Rack-assembly possible | false |
| Voltage type (supply voltage) | AC |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for other bus systems | true |
| System accessory | true |
| Appendant operation agent (Ex ia) | false |
| Supply voltage AC 60 Hz | 264 V |
| Supporting protocol for EtherCAT | false |
| Processing time (1K, binary operation) | 0.085 ms |
| Number of analogue inputs | 2 |
| Supporting protocol for Data-Highway | false |
| Wall mounting/direct mounting | true |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for CAN | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for TCP/IP | true |
| With optical interface | false |
| Number of digital inputs | 14 |
| Supporting protocol for SERCOS | false |
| Supply voltage AC 50 Hz | 85 V |
| Supporting protocol for Foundation Fieldbus | false |
| Type of memory | RAM |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supply voltage AC 60 Hz | 85 V |
| Explosion safety category for dust | None |
| Suitable for safety functions | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| IO link master | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIsafe | false |
| Radio standard WLAN 802.11 | false |
| Additional program memory possible | false |
| Front built-in possible | false |
| Depth | 75 mm |
| Radio standard GSM | false |
| Supporting protocol for PROFINET IO | true |
| Radio standard UMTS | false |
| Supporting protocol for SUCONET | false |
| Model | Compact |
| Number of relay outputs | 10 |
| Appendant operation agent (Ex ib) | false |
| Width | 110 mm |
- SIPLUS S7-1200 CPU 1214C AC/DC/relay based on 6ES7214-1BG40-0XB0 with conformal coating, -40…+70 °C, start up -25 °C, signal board: 0
- Compact CPU, AC/DC/relay, onboard I/O: 14 DI 24 V DC 10 DQ relay 2 A 2 AI 0-10 V DC
- Power supply: AC 85-264 V AC @ 47-63 Hz
- Program/data memory 100 KB
- SIMATIC S7-1200 Basic Controller – Flexible thanks to wide variety of communication options
- The Basic Controllers are first choice for implementing automation tasks flexibly and efficiently in the mid to low performance range
- The CPUs are scaled in their performance and available for different input voltages and with transistor or relay outputs
- Safety versions are also available
- In addition to the existing integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with a wide variety of signal and communication modules in order to adapt them to your exact requirements
- HMI devices can likewise be connected via the integrated Ethernet interface
- The memory of the CPU can be expanded by means of a memory card, while the PLC is configured using the STEP 7 Basic software in the TIA Portal
- The micro PLC has a wide range of networking options via various communication standards by means of integrated functions (PROFINET, Modbus, etc.) or add-on modules (IO-Link, AS-i, etc.) and thus offers maximum flexibility in the topology and when setting up the networks
- Thanks to its compact design, the fields of application for the S7-1200 are very varied and extend from simple packaging machines and heating systems to its use as a subordinate control system in larger plants
- Compact design, modular structure and integrated IOs help to save space in the control cabinet
- The STEP 7 configuration software is integrated into the TIA Portal and can therefore rely on shared data storage, a uniform operating concept and integrated communication services for all components of a system
- This means lower configuration costs and faster commissioning
- The SIPLUS extreme variant also protects the automation system components against harsh ambient conditions such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area
| Trọng lượng | 0.47 kg |
|---|---|
| Country of Origin | DE |
