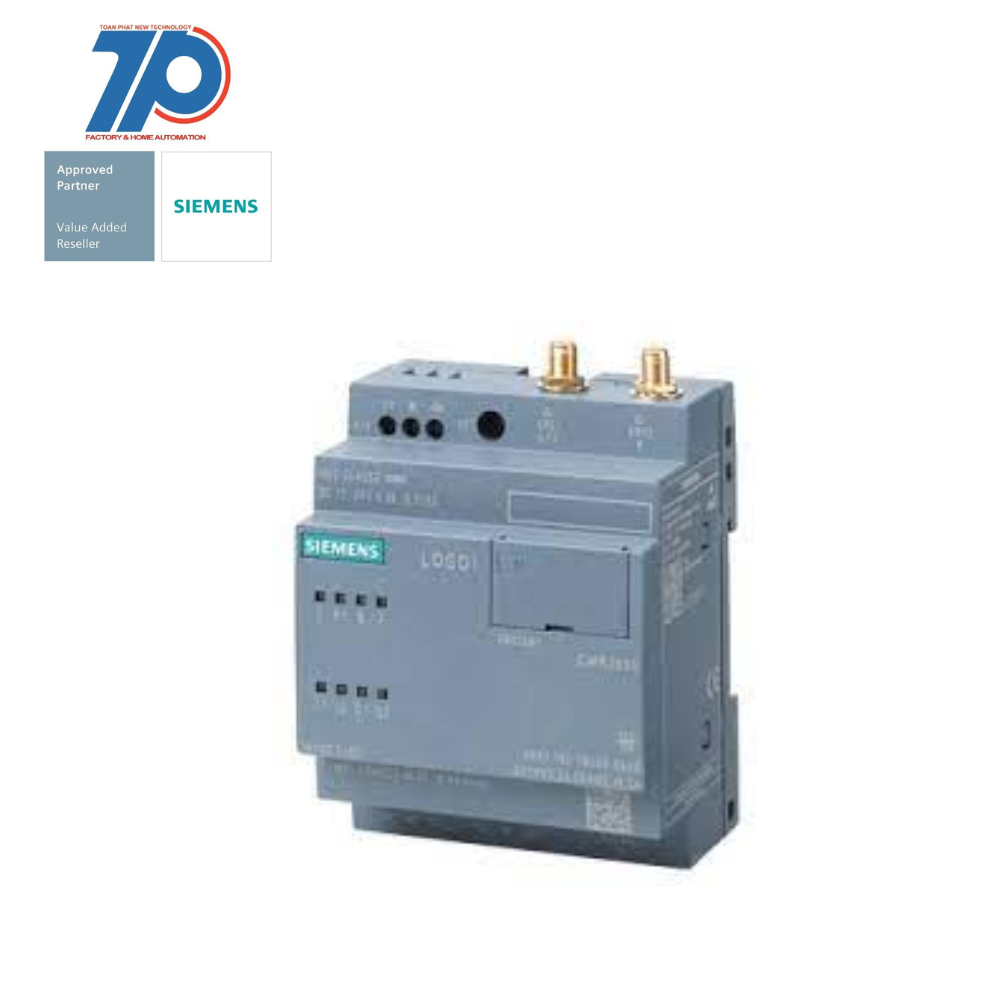

Material ID: 6GK7142-7BX00-0AX0
- LOGO! CMR2020 communication module for connection of LOGO! 8 to GSM/GPRS network
- 1 RJ45 port for Industrial Ethernet connection to LOGO! 8
- 2xDI
- 2xDO
- Write/read access to LOGO! variables
- SMS dispatch/reception
- Email dispatch
- Position detection GPS
- Time synchronization/forwarding with real-time clock
- Configuration/diagnostics via web interface
- Remote access via OpenVPN/HTTPs, DynDNS
- Observe national approval!
- Manual available as a download
- The LOGO! CMR 2020 remote communications module permits communication by text message for alarm purposes and for remote control by cellphone in GSM/GPRS cellphone networks, GPS positioning, and global synchronization of the time
- The LOGO! CMR 2040 remote communications module permits communication by text message for alarm purposes and for remote control by cellphone in LTE cellphone networks, GPS positioning, and global synchronization of the time
Additional Information
Support
| Technical Data
| Manuals / Links
|
####
| FEATURE | VALUE |
| Number of HW-interfaces wireless | 2 |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for LON | false |
| Redundancy | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for other bus systems | true |
| Radio standard Bluetooth | false |
| Supporting protocol for ASI | false |
| With optical interface | false |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard UMTS | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFINET IO | false |
| Appendant operation agent (Ex ib) | false |
| Radio standard GSM | true |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFIBUS | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Supporting protocol for SERCOS | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| With potential separation | false |
| Explosion safety category for dust | None |
| Radio standard GPRS | true |
| Suitable for safety functions | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for CAN | false |
| Width | 71.5 mm |
| Type of data transmission | Other |
| Height | 90 mm |
| Depth | 58.2 mm |
| Explosion safety category for gas | None |
| Supporting protocol for KNX | false |
| Supporting protocol for Modbus | false |
