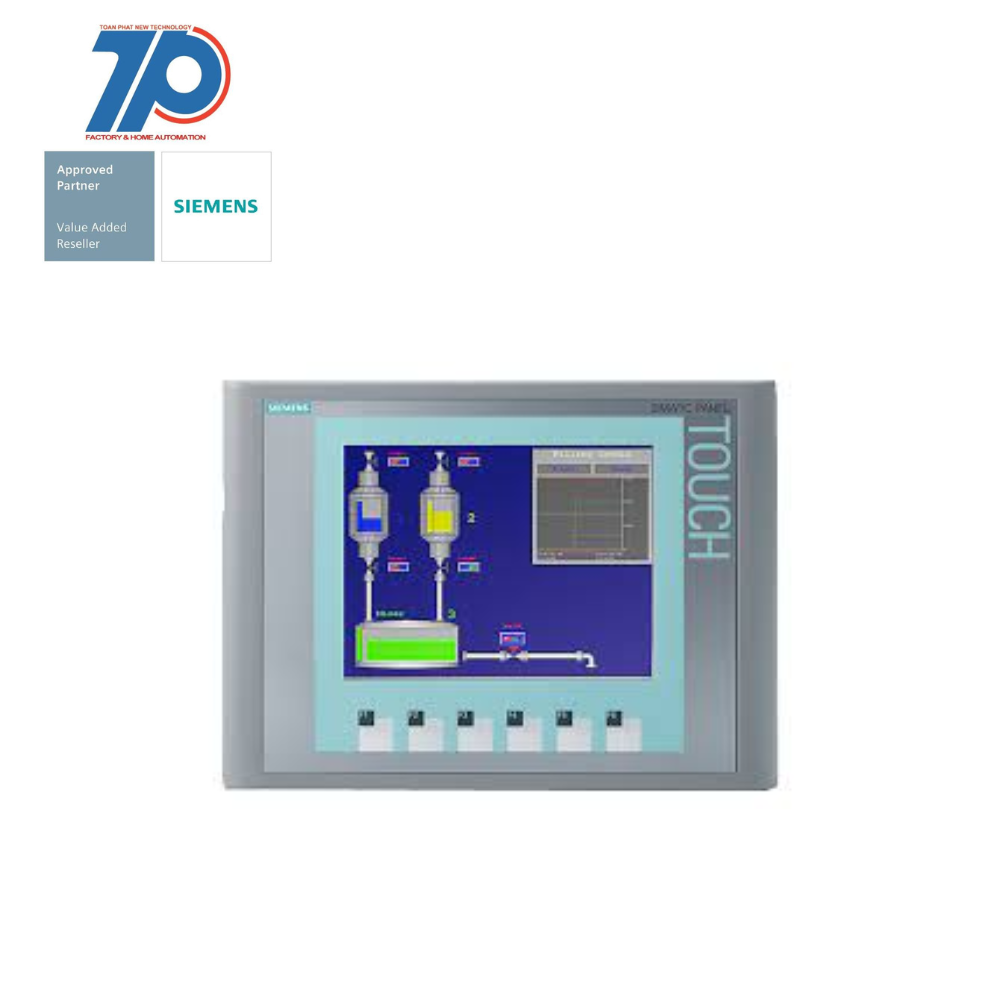

6AV6647-0AC11-3AX0

Giá: Liên Hệ

Sản phẩm hiện đang có sẵn tại TPNEWTECH.
Gọi ngay cho chúng tôi để nhận báo giá và ưu đãi tốt nhất.

Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 3 - 7 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

 Hàng chính hãng SIEMENS

Freeship nội thành HCM

Gọi Báo Giá Nhanh Hỗ trợ kỹ thuật

Chi Tiết Sản Phẩm

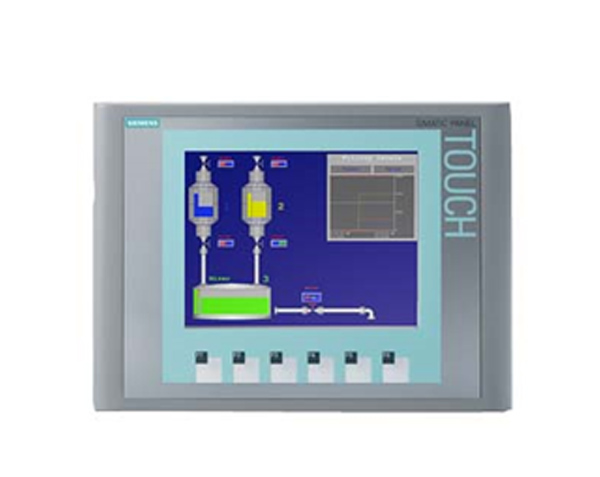

SIMATIC HMI KTP600 Basic Color DP, Basic Panel, Key/touch operation, 6″ TFT display, 256 colors, MPI/PROFIBUS DP interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V11/ STEP 7 Basic V11, contains open-source software, which is provided free of charge see enclosed CD

SIMATIC HMI KTP600 Basic Color DP, Basic Panel, Key/touch operation, 6″ TFT display, 256 colors, MPI/PROFIBUS DP interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V11/ STEP 7 Basic V11, contains open-source software, which is provided free of charge see enclosed CD
General information
Product type designationKTP600 Basic color DP
Display
Design of displayTFT
Screen diagonal5.7 in
Display width115.2 mm
Display height86.4 mm
Number of colors256
Resolution (pixels)
● Horizontal image resolution320 Pixel
● Vertical image resolution240 Pixel
Backlighting
● MTBF backlighting (at 25 °C)50 000 h
● Backlight dimmableNo
Control elements
Keyboard fonts
● Function keys
— Number of function keys6
— Number of function keys with LEDs0
● Keys with LEDNo
● System keysNo
● Numeric keyboardYes; Onscreen keyboard
● alphanumeric keyboardYes; Onscreen keyboard
Touch operation
● Design as touch screenYes
Installation type/mounting
Mounting positionvertical
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation35°
Supply voltage
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption (rated value)0.35 A
Starting current inrush I²t0.5 A²·s
Power
Active power input, typ.9 W
Processor
Processor typeRISC 32 bit
Memory
FlashYes
RAMYes
Memory available for user data1 Mbyte
Type of output
Acoustics
● BuzzerYes
● SpeakerNo
Time of day
Clock
● Hardware clock (real-time)No
● Software clockYes
● retentiveNo
● synchronizableYes
Interfaces
Number of industrial Ethernet interfaces0
Number of RS 485 interfaces1
Number of RS 422 interfaces1
Number of RS 232 interfaces0
Number of USB interfaces0
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots0
With software interfacesNo
Industrial Ethernet
● Industrial Ethernet status LED0
Protocols
PROFINETNo
Supports protocol for PROFINET IONo
IRTNo
PROFIBUSYes
MPIYes
Protocols (Ethernet)
● TCP/IPNo
● DHCPNo
● SNMPNo
● DCPNo
● LLDPNo
WEB characteristics
● HTTPNo
● HTMLNo
Further protocols
● CANNo
● EtherNet/IPNo
● MODBUSYes; Modicon (MODBUS RTU)
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readableNo
Degree and class of protection
IP (at the front)IP65
IP (rear)IP20
NEMA (front)
● Enclosure Type 4 at the frontYes
● Enclosure Type 4x at the frontYes
Standards, approvals, certificates
CE markYes
cULusYes
RCM (formerly C-TICK)Yes
KC approvalYes
Use in hazardous areas
● ATEX Zone 2No
● ATEX Zone 22No
● cULus Class I Zone 1No
● cULus Class I Zone 2, Division 2No
● FM Class I Division 2No
Marine approval
● Germanischer Lloyd (GL)Yes
● American Bureau of Shipping (ABS)Yes
● Bureau Veritas (BV)Yes
● Det Norske Veritas (DNV)Yes
● Lloyds Register of Shipping (LRS)Yes
● Nippon Kaiji Kyokai (Class NK)Yes
● Polski Rejestr Statkow (PRS)Yes
Ambient conditions
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, min.40 °C
● Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, min.40 °C
Ambient temperature during storage/transportation
● min.-20 °C
● max.60 °C
Relative humidity
● Operation, max.90 %; no condensation
Operating systems
proprietaryYes
pre-installed operating system
● Windows CENo
Configuration
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes
Configuration software
● STEP 7 Basic (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
● STEP 7 Professional (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
● WinCC flexible CompactYes
● WinCC flexible StandardYes
● WinCC flexible AdvancedYes
● WinCC Basic (TIA Portal)Yes
● WinCC Comfort (TIA Portal)Yes
● WinCC Advanced (TIA Portal)Yes
● WinCC Professional (TIA Portal)Yes
Languages
Online languages
● Number of online/runtime languages5
Project languages
● Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesYes
Task planner
● time-controlledNo
● task-controlledYes
Help system
● Number of characters per info text320
Message system
● Number of alarm classes32
● Bit messages
— Number of bit messages200
● Analog messages
— Number of analog messages15
● System messages HMIYes
● Number of characters per message80
● Number of process values per message8
● Message indicatorYes
● Message buffer
— Number of entries256
— Circulating bufferYes
— retentiveYes
— maintenance-freeYes
Recipe management
● Number of recipes5
● Data records per recipe20
● Entries per data record20
● Size of internal recipe memory40 kbyte
● Recipe memory expandableNo
Variables
● Number of variables per device500
● Number of variables per screen30
● Limit valuesYes
● MultiplexingYes
● StructuresNo
● ArraysYes
Images
● Number of configurable images50
● Permanent window/defaultYes
● Global imageYes
● Image selection by PLCYes
● Image number in the PLCYes
Image objects
● Number of objects per image30
● Text fieldsYes
● I/O fieldsYes
● Graphic I/O fields (graphics list)Yes
● Symbolic I/O fields (text list)Yes
● Date/time fieldsYes
● SwitchesYes
● ButtonsYes
● Graphic displayYes
● IconsYes
● Geometric objectsYes
Complex image objects
● Number of complex objects per screen5
● Alarm viewYes
● Trend viewYes
● User viewYes
● Status/controlNo
● Sm@rtClient viewNo
● Recipe viewYes
● f(x) trend viewNo
● System diagnostics viewNo
● Media PlayerNo
● Bar graphsYes
● SlidersNo
● Pointer instrumentsNo
● Analog/digital clockNo
Lists
● Number of text lists per project150
● Number of entries per text list30
● Number of graphics lists per project100
● Number of entries per graphics list30
Archiving
● Number of archives per device0
Security
● Number of user groups50
● Number of user rights32
● Number of users50
● Password export/importNo
● SIMATIC LogonNo
Character sets
● Keyboard fonts
— US EnglishYes
Transfer (upload/download)
● MPI/PROFIBUS DPYes
● USBNo
● EthernetNo
● using external storage mediumNo
Process coupling
● S7-1200Yes
● S7-1500Yes
● S7-200Yes
● S7-300/400Yes
● LOGO!Yes
● WinACYes
● SINUMERIKNo
● SIMOTIONNo
● Allen Bradley (EtherNet/IP)No
● Allen Bradley (DF1)Yes
● Mitsubishi (MC TCP/IP)No
● Mitsubishi (FX)Yes
● OMRON (FINS TCP)No
● OMRON (LINK/Multilink)Yes
● Modicon (Modbus TCP/IP)No
● Modicon (Modbus)Yes
Service tools/configuration aids
● Backup/Restore manuallyYes
● Backup/Restore automaticallyNo
● SimulationYes
● Device switchoverYes
Peripherals/Options
PrinterNo
SIMATIC HMI MM memory card: Multi Media CardNo
SIMATIC HMI SD memory card: Secure Digital memory cardNo
USB memoryNo
Mechanics/material
Enclosure material (front)
● PlasticYes
● AluminumNo
● Stainless steelNo
Dimensions
Width of the housing front214 mm
Height of housing front158 mm
Mounting cutout, width197 mm
Mounting cutout, height141 mm
Overall depth44 mm
Weights
Weight without packaging1.07 kg
Weight incl. packaging1.35 kg
last modified:05/13/2020
