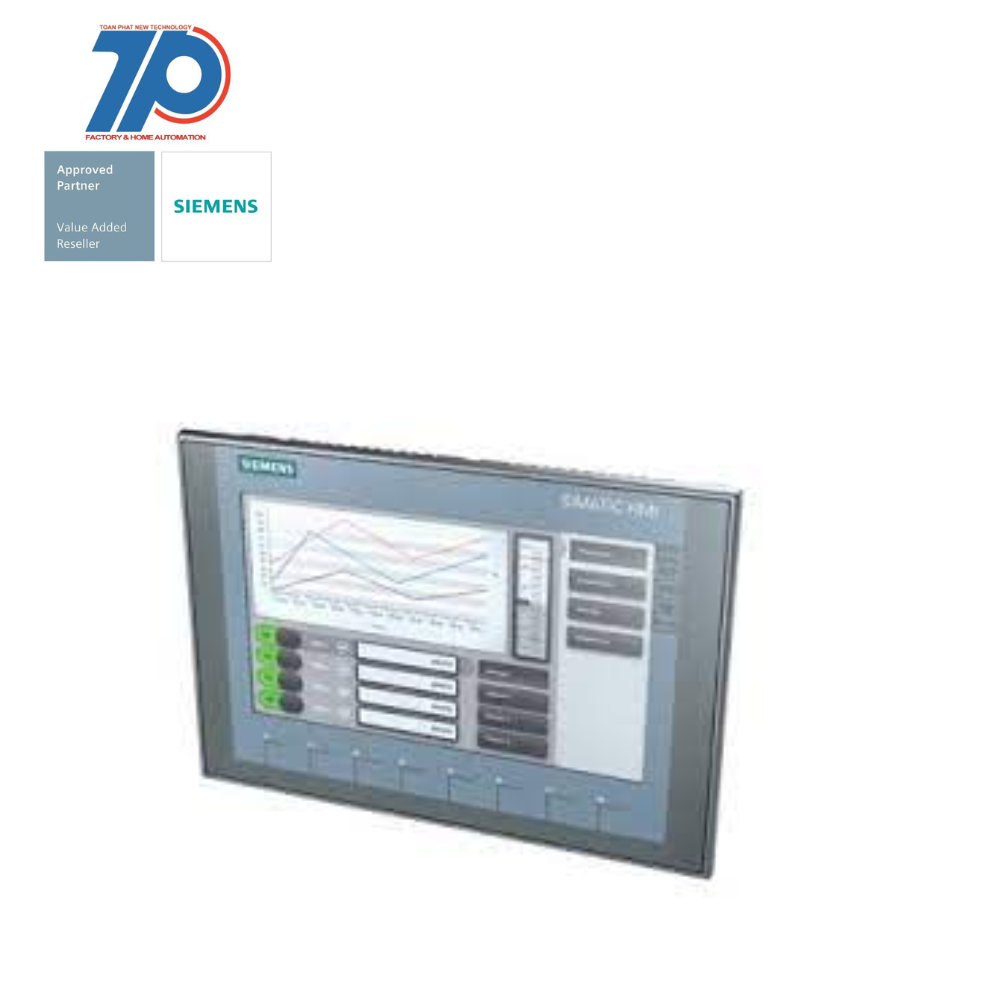

6AV2123-2JB03-0AX0

10,000 5,000

Giá: Liên Hệ

Sản phẩm hiện đang có sẵn tại TPNEWTECH.
Gọi ngay cho chúng tôi để nhận báo giá và ưu đãi tốt nhất.

Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 3 - 7 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

 Hàng chính hãng SIEMENS

Freeship nội thành HCM

Gọi Báo Giá Nhanh Hỗ trợ kỹ thuật

Chi Tiết Sản Phẩm

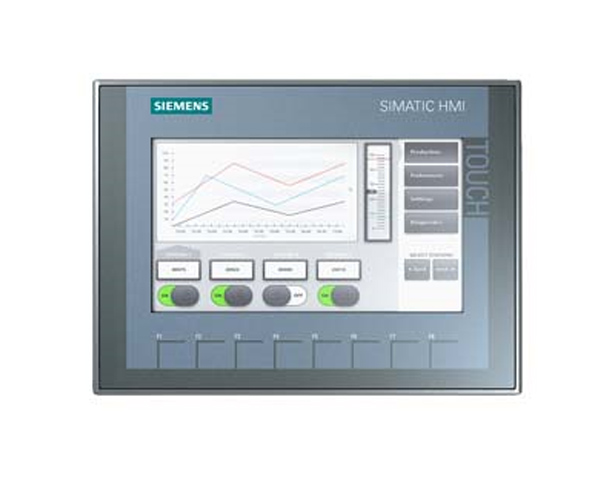

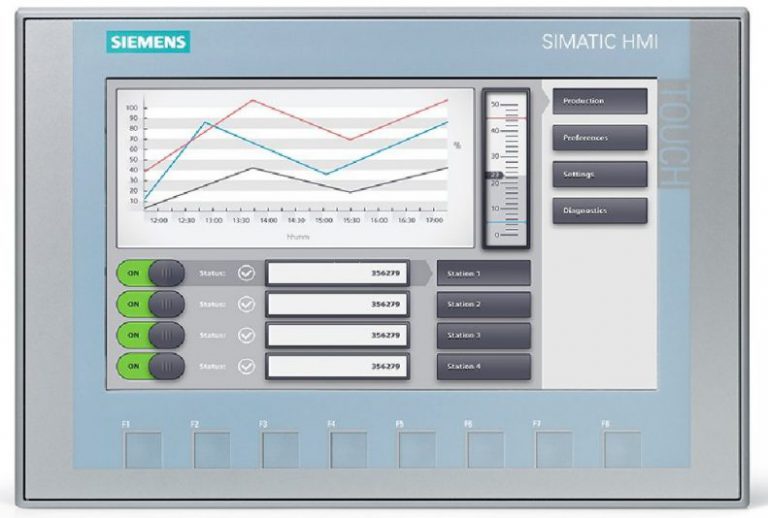

SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation, 9″ TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD

SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation, 9″ TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
General information
Product type designationKTP900 Basic color PN
Display
Design of displayTFT widescreen display, LED backlighting
Screen diagonal9 in
Display width198 mm
Display height111.7 mm
Number of colors65 536
Resolution (pixels)
● Horizontal image resolution800 Pixel
● Vertical image resolution480 Pixel
Backlighting
● MTBF backlighting (at 25 °C)20 000 h
● Backlight dimmableYes
Control elements
Keyboard fonts
● Function keys
— Number of function keys8
— Number of function keys with LEDs0
● Keys with LEDNo
● System keysNo
● Numeric keyboardYes; Onscreen keyboard
● alphanumeric keyboardYes; Onscreen keyboard
Touch operation
● Design as touch screenYes
Installation type/mounting
Mounting positionvertical
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation35°
Supply voltage
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption (rated value)230 mA
Starting current inrush I²t0.2 A²·s
Power
Active power input, typ.5.5 W
Processor
Processor typeARM
Memory
FlashYes
RAMYes
Memory available for user data10 Mbyte
Type of output
Acoustics
● BuzzerYes
● SpeakerNo
Time of day
Clock
● Hardware clock (real-time)Yes
● Software clockYes
● retentiveYes; Back-up duration typically 6 weeks
● synchronizableYes
Interfaces
Number of industrial Ethernet interfaces1
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of RS 232 interfaces0
Number of USB interfaces1; Up to 16 GB
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots0
With software interfacesNo
Industrial Ethernet
● Industrial Ethernet status LED2
Protocols
PROFINETYes
Supports protocol for PROFINET IONo
IRTNo
PROFIBUSNo
MPINo
Protocols (Ethernet)
● TCP/IPYes
● DHCPYes
● SNMPYes
● DCPYes
● LLDPYes
WEB characteristics
● HTTPNo
● HTMLNo
Redundancy mode
Media redundancy
— MRPNo
Further protocols
● CANNo
● EtherNet/IPYes
● MODBUSYes; Modicon (MODBUS TCP/IP)
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readableNo
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areasYes
● Limit class B, for use in residential areasNo
Degree and class of protection
IP (at the front)IP65
IP (rear)IP20
NEMA (front)
● Enclosure Type 4 at the frontYes
● Enclosure Type 4x at the frontYes
Standards, approvals, certificates
CE markYes
cULusYes
RCM (formerly C-TICK)Yes
KC approvalYes
Use in hazardous areas
● ATEX Zone 2No
● ATEX Zone 22No
● IECEx Zone 2No
● IECEx Zone 22No
● cULus Class I Zone 1No
● cULus Class I Zone 2, Division 2No
● FM Class I Division 2No
Marine approval
● Germanischer Lloyd (GL)Yes
● American Bureau of Shipping (ABS)Yes
● Bureau Veritas (BV)Yes
● Det Norske Veritas (DNV)Yes
● Lloyds Register of Shipping (LRS)Yes
● Nippon Kaiji Kyokai (Class NK)Yes
● Polski Rejestr Statkow (PRS)No
● Chinese Classification Society (CCS)No
Ambient conditions
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, min.40 °C
● Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.40 °C
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, min.35 °C
Ambient temperature during storage/transportation
● min.-20 °C
● max.60 °C
Relative humidity
● Operation, max.90 %; no condensation
Operating systems
proprietaryYes
pre-installed operating system
● Windows CENo
Configuration
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes
Configuration software
● STEP 7 Basic (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
● STEP 7 Professional (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
● WinCC flexible CompactNo
● WinCC flexible StandardNo
● WinCC flexible AdvancedNo
● WinCC Basic (TIA Portal)Yes
● WinCC Comfort (TIA Portal)Yes
● WinCC Advanced (TIA Portal)Yes
● WinCC Professional (TIA Portal)Yes
Languages
Online languages
● Number of online/runtime languages10
Project languages
● Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesYes
Applications/options
● Web browserYes
● SIMATIC WinCC Sm@rtServerYes; Available with WinCC (TIA Portal) V14 or higher
Number of Visual Basic ScriptsNo
Task plannerYes
● time-controlledNo
● task-controlledYes
Help systemYes
● Number of characters per info text500
Message system
● Number of alarm classes32
● Bit messages
— Number of bit messages1 000
● Analog messages
— Number of analog messages25
● S7 alarm number procedureNo
● System messages HMIYes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)Yes; System message buffer of the SIMATIC S7-1200 and S7-1500
● Number of characters per message80
● Number of process values per message8
● Acknowledgment groupsYes
● Message indicatorYes
● Message buffer
— Number of entries256
— Circulating bufferYes
— retentiveYes
— maintenance-freeYes
Recipe management
● Number of recipes50
● Data records per recipe100
● Entries per data record100
● Size of internal recipe memory256 kbyte
● Recipe memory expandableNo
Variables
● Number of variables per device800
● Number of variables per screen100
● Limit valuesYes
● MultiplexingYes
● StructuresNo
● ArraysYes
Images
● Number of configurable images250
● Permanent window/defaultYes
● Global imageYes
● Pop-up imagesNo
● Slide-in imagesNo
● Image selection by PLCYes
● Image number in the PLCYes
Image objects
● Number of objects per image100
● Text fieldsYes
● I/O fieldsYes
● Graphic I/O fields (graphics list)Yes
● Symbolic I/O fields (text list)Yes
● Date/time fieldsYes
● SwitchesYes
● ButtonsYes
● Graphic displayYes
● IconsYes
● Geometric objectsYes
Complex image objects
● Number of complex objects per screen10
● Alarm viewYes
● Trend viewYes
● User viewYes
● Status/controlNo
● Sm@rtClient viewNo
● Recipe viewYes
● f(x) trend viewNo
● System diagnostics viewYes; System message buffer of the SIMATIC S7-1200 and S7-1500
● Media PlayerNo
● HTML browserYes
● PDF displayNo
● IP camera displayNo
● Bar graphsYes
● SlidersNo
● Pointer instrumentsNo
● Analog/digital clockNo
Lists
● Number of text lists per project300
● Number of entries per text list100
● Number of graphics lists per project100
● Number of entries per graphics list100
Archiving
● Number of archives per device2; One message and one process value archive
● Number of entries per archive10 000
● Message archiveYes
● Process value archiveYes
● Archiving methods
— Sequential archiveYes
— Short-term archiveYes
● Memory location
— Memory cardNo
— USB memoryYes
— EthernetNo
● Data storage format
— CSVNo
— TXTYes
— RDBNo
Security
● Number of user groups50
● Number of user rights32
● Number of users50
● Password export/importYes
● SIMATIC LogonNo
Character sets
● Keyboard fonts
— US EnglishYes
Transfer (upload/download)
● MPI/PROFIBUS DPNo
● USBNo
● EthernetYes
● using external storage mediumYes
Process coupling
● S7-1200Yes
● S7-1500Yes
● S7-200Yes
● S7-300/400Yes
● LOGO!Yes
● WinACYes
● SINUMERIKYes; No access to NCK data
● SIMOTIONYes
● Allen Bradley (EtherNet/IP)Yes
● Allen Bradley (DF1)No
● Mitsubishi (MC TCP/IP)Yes
● Mitsubishi (FX)No
● OMRON (FINS TCP)No
● OMRON (LINK/Multilink)No
● Modicon (Modbus TCP/IP)Yes
● Modicon (Modbus)No
Service tools/configuration aids
● Backup/Restore manuallyYes
● Backup/Restore automaticallyNo
● SimulationYes
● Device switchoverYes
Peripherals/Options
PrinterNo
SIMATIC HMI MM memory card: Multi Media CardNo
SIMATIC HMI SD memory card: Secure Digital memory cardNo
SIMATIC HMI CF memory card Compact Flash CardNo
USB memoryYes
SIMATIC IPC USB Flashdrive (USB stick)Yes
SIMATIC HMI USB stickYes
Mechanics/material
Enclosure material (front)
● PlasticYes
● AluminumNo
● Stainless steelNo
Dimensions
Width of the housing front267 mm
Height of housing front182 mm
Mounting cutout, width251 mm
Mounting cutout, height166 mm
Overall depth55 mm
Weights
Weight without packaging1 130 g
Weight incl. packaging1 393 g
last modified:05/13/2020
5/5 (1 Review)



HỖ TRỢ KỸ THUẬT

Đội ngũ kỹ thuật của chúng tôi luôn sẵn sàng tư vấn và hướng dẫn quý khách sửa chữa bảo trì hay bất cứ điều gì liên quan đến sản phẩm.

Thời gian bảo hành 12 tháng
1 đổi 1 nếu có bất  kỳ lỗi từ nhà sản xuất

Áp dụng cho tất cả các sản phẩm đang kinh doanh tại www.tpnewtech.com

Chính sách đổi trả:

Khách hàng có quyền ĐỔI sản phẩm khác hoặc TRẢ sản phẩm và lấy lại tiền với chi tiết như sau:

+ Đổi trả sản phẩm bị lỗi (Do nhà sản xuất ): sau 24 giờ kề từ khi ký xác nhận trong “ Biên bản giao nhận” : ĐỔI TRẢ MIỄN PHÍ HOẶC HOÀN TIỀN ( không bao gồm phí vận chuyển )

+ Sản phẩm “Không bị lỗi” hoặc “Bị lỗi” do NGƯỜI SỬ DỤNG: Không áp dụng đổi trả hoặc khách hàng chịu chi phí sửa chữa.

Điều kiện đổi trả:

– Còn hóa đơn mua hàng

– Còn đầy đủ hộp sản phẩm

– Còn đầy đủ phiếu bảo hành (nếu có) và phụ kiện đi kèm

– Quà khuyến mãi có giá trị (nếu có)

– Trường hợp thiếu các điều kiện trên: thu phí theo qui định. Ngoài ra, KHÔNG thu thêm bất kỳ phí nào khác

– Tem bảo hành còn nguyên: không bị rách hoặc mờ

Chi Tiết Sản Phẩm

SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation, 9″ TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD

SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation, 9″ TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
General information
Product type designationKTP900 Basic color PN
Display
Design of displayTFT widescreen display, LED backlighting
Screen diagonal9 in
Display width198 mm
Display height111.7 mm
Number of colors65 536
Resolution (pixels)
● Horizontal image resolution800 Pixel
● Vertical image resolution480 Pixel
Backlighting
● MTBF backlighting (at 25 °C)20 000 h
● Backlight dimmableYes
Control elements
Keyboard fonts
● Function keys
— Number of function keys8
— Number of function keys with LEDs0
● Keys with LEDNo
● System keysNo
● Numeric keyboardYes; Onscreen keyboard
● alphanumeric keyboardYes; Onscreen keyboard
Touch operation
● Design as touch screenYes
Installation type/mounting
Mounting positionvertical
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation35°
Supply voltage
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption (rated value)230 mA
Starting current inrush I²t0.2 A²·s
Power
Active power input, typ.5.5 W
Processor
Processor typeARM
Memory
FlashYes
RAMYes
Memory available for user data10 Mbyte
Type of output
Acoustics
● BuzzerYes
● SpeakerNo
Time of day
Clock
● Hardware clock (real-time)Yes
● Software clockYes
● retentiveYes; Back-up duration typically 6 weeks
● synchronizableYes
Interfaces
Number of industrial Ethernet interfaces1
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of RS 232 interfaces0
Number of USB interfaces1; Up to 16 GB
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots0
With software interfacesNo
Industrial Ethernet
● Industrial Ethernet status LED2
Protocols
PROFINETYes
Supports protocol for PROFINET IONo
IRTNo
PROFIBUSNo
MPINo
Protocols (Ethernet)
● TCP/IPYes
● DHCPYes
● SNMPYes
● DCPYes
● LLDPYes
WEB characteristics
● HTTPNo
● HTMLNo
Redundancy mode
Media redundancy
— MRPNo
Further protocols
● CANNo
● EtherNet/IPYes
● MODBUSYes; Modicon (MODBUS TCP/IP)
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readableNo
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areasYes
● Limit class B, for use in residential areasNo
Degree and class of protection
IP (at the front)IP65
IP (rear)IP20
NEMA (front)
● Enclosure Type 4 at the frontYes
● Enclosure Type 4x at the frontYes
Standards, approvals, certificates
CE markYes
cULusYes
RCM (formerly C-TICK)Yes
KC approvalYes
Use in hazardous areas
● ATEX Zone 2No
● ATEX Zone 22No
● IECEx Zone 2No
● IECEx Zone 22No
● cULus Class I Zone 1No
● cULus Class I Zone 2, Division 2No
● FM Class I Division 2No
Marine approval
● Germanischer Lloyd (GL)Yes
● American Bureau of Shipping (ABS)Yes
● Bureau Veritas (BV)Yes
● Det Norske Veritas (DNV)Yes
● Lloyds Register of Shipping (LRS)Yes
● Nippon Kaiji Kyokai (Class NK)Yes
● Polski Rejestr Statkow (PRS)No
● Chinese Classification Society (CCS)No
Ambient conditions
Ambient temperature during operation
● Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C
● Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, min.40 °C
● Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.40 °C
● Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, min.35 °C
Ambient temperature during storage/transportation
● min.-20 °C
● max.60 °C
Relative humidity
● Operation, max.90 %; no condensation
Operating systems
proprietaryYes
pre-installed operating system
● Windows CENo
Configuration
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes
Configuration software
● STEP 7 Basic (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
● STEP 7 Professional (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
● WinCC flexible CompactNo
● WinCC flexible StandardNo
● WinCC flexible AdvancedNo
● WinCC Basic (TIA Portal)Yes
● WinCC Comfort (TIA Portal)Yes
● WinCC Advanced (TIA Portal)Yes
● WinCC Professional (TIA Portal)Yes
Languages
Online languages
● Number of online/runtime languages10
Project languages
● Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesYes
Applications/options
● Web browserYes
● SIMATIC WinCC Sm@rtServerYes; Available with WinCC (TIA Portal) V14 or higher
Number of Visual Basic ScriptsNo
Task plannerYes
● time-controlledNo
● task-controlledYes
Help systemYes
● Number of characters per info text500
Message system
● Number of alarm classes32
● Bit messages
— Number of bit messages1 000
● Analog messages
— Number of analog messages25
● S7 alarm number procedureNo
● System messages HMIYes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)Yes; System message buffer of the SIMATIC S7-1200 and S7-1500
● Number of characters per message80
● Number of process values per message8
● Acknowledgment groupsYes
● Message indicatorYes
● Message buffer
— Number of entries256
— Circulating bufferYes
— retentiveYes
— maintenance-freeYes
Recipe management
● Number of recipes50
● Data records per recipe100
● Entries per data record100
● Size of internal recipe memory256 kbyte
● Recipe memory expandableNo
Variables
● Number of variables per device800
● Number of variables per screen100
● Limit valuesYes
● MultiplexingYes
● StructuresNo
● ArraysYes
Images
● Number of configurable images250
● Permanent window/defaultYes
● Global imageYes
● Pop-up imagesNo
● Slide-in imagesNo
● Image selection by PLCYes
● Image number in the PLCYes
Image objects
● Number of objects per image100
● Text fieldsYes
● I/O fieldsYes
● Graphic I/O fields (graphics list)Yes
● Symbolic I/O fields (text list)Yes
● Date/time fieldsYes
● SwitchesYes
● ButtonsYes
● Graphic displayYes
● IconsYes
● Geometric objectsYes
Complex image objects
● Number of complex objects per screen10
● Alarm viewYes
● Trend viewYes
● User viewYes
● Status/controlNo
● Sm@rtClient viewNo
● Recipe viewYes
● f(x) trend viewNo
● System diagnostics viewYes; System message buffer of the SIMATIC S7-1200 and S7-1500
● Media PlayerNo
● HTML browserYes
● PDF displayNo
● IP camera displayNo
● Bar graphsYes
● SlidersNo
● Pointer instrumentsNo
● Analog/digital clockNo
Lists
● Number of text lists per project300
● Number of entries per text list100
● Number of graphics lists per project100
● Number of entries per graphics list100
Archiving
● Number of archives per device2; One message and one process value archive
● Number of entries per archive10 000
● Message archiveYes
● Process value archiveYes
● Archiving methods
— Sequential archiveYes
— Short-term archiveYes
● Memory location
— Memory cardNo
— USB memoryYes
— EthernetNo
● Data storage format
— CSVNo
— TXTYes
— RDBNo
Security
● Number of user groups50
● Number of user rights32
● Number of users50
● Password export/importYes
● SIMATIC LogonNo
Character sets
● Keyboard fonts
— US EnglishYes
Transfer (upload/download)
● MPI/PROFIBUS DPNo
● USBNo
● EthernetYes
● using external storage mediumYes
Process coupling
● S7-1200Yes
● S7-1500Yes
● S7-200Yes
● S7-300/400Yes
● LOGO!Yes
● WinACYes
● SINUMERIKYes; No access to NCK data
● SIMOTIONYes
● Allen Bradley (EtherNet/IP)Yes
● Allen Bradley (DF1)No
● Mitsubishi (MC TCP/IP)Yes
● Mitsubishi (FX)No
● OMRON (FINS TCP)No
● OMRON (LINK/Multilink)No
● Modicon (Modbus TCP/IP)Yes
● Modicon (Modbus)No
Service tools/configuration aids
● Backup/Restore manuallyYes
● Backup/Restore automaticallyNo
● SimulationYes
● Device switchoverYes
Peripherals/Options
PrinterNo
SIMATIC HMI MM memory card: Multi Media CardNo
SIMATIC HMI SD memory card: Secure Digital memory cardNo
SIMATIC HMI CF memory card Compact Flash CardNo
USB memoryYes
SIMATIC IPC USB Flashdrive (USB stick)Yes
SIMATIC HMI USB stickYes
Mechanics/material
Enclosure material (front)
● PlasticYes
● AluminumNo
● Stainless steelNo
Dimensions
Width of the housing front267 mm
Height of housing front182 mm
Mounting cutout, width251 mm
Mounting cutout, height166 mm
Overall depth55 mm
Weights
Weight without packaging1 130 g
Weight incl. packaging1 393 g
last modified:05/13/2020
5/5 (1 Review)

Khuyến Mãi – Siêu Ưu Đãi 2020

Chương Trình Khuyến Mãi

Chương trình hỗ trợ giá các dòng thiết bị tự động SIEMENS được bắt dầu từ tháng 6/2020. Toàn Phát xin được góp một phần nhỏ công sức của mình vào công cuộc phục hồi nền kinh tế nước nhà.
*Chương trình chỉ áp dụng cho các doanh nghiệp sản xuất và các công ty thi công dự án công trình.

Sản Phẩm Tương Tự

Sản Phẩm Bán Chạy
