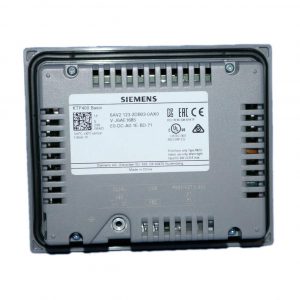

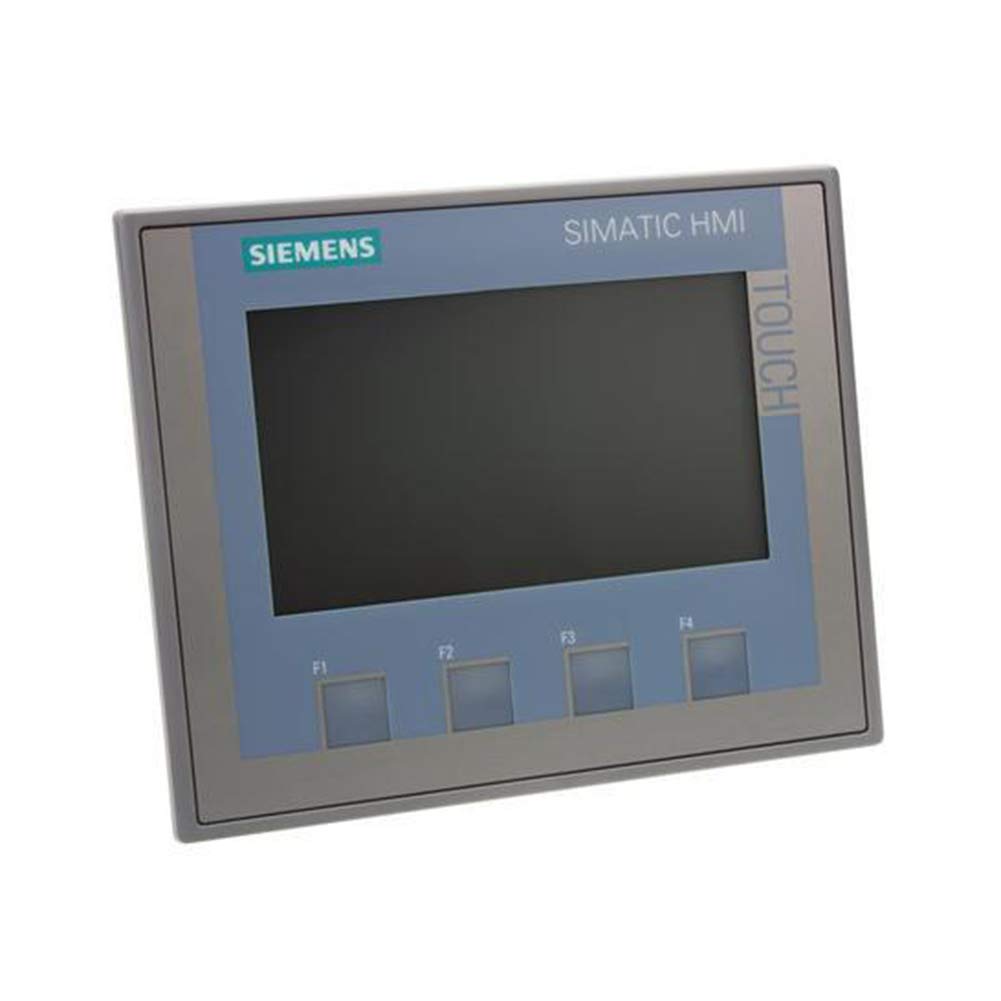

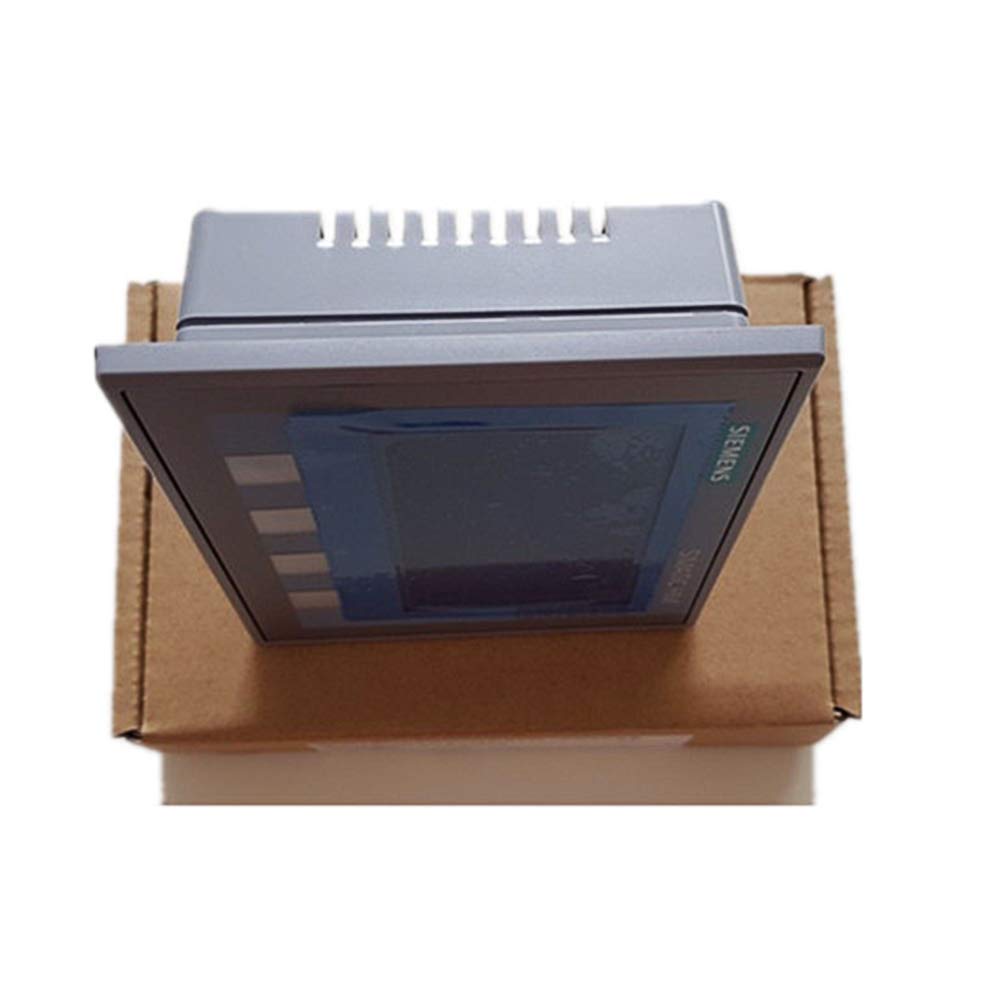

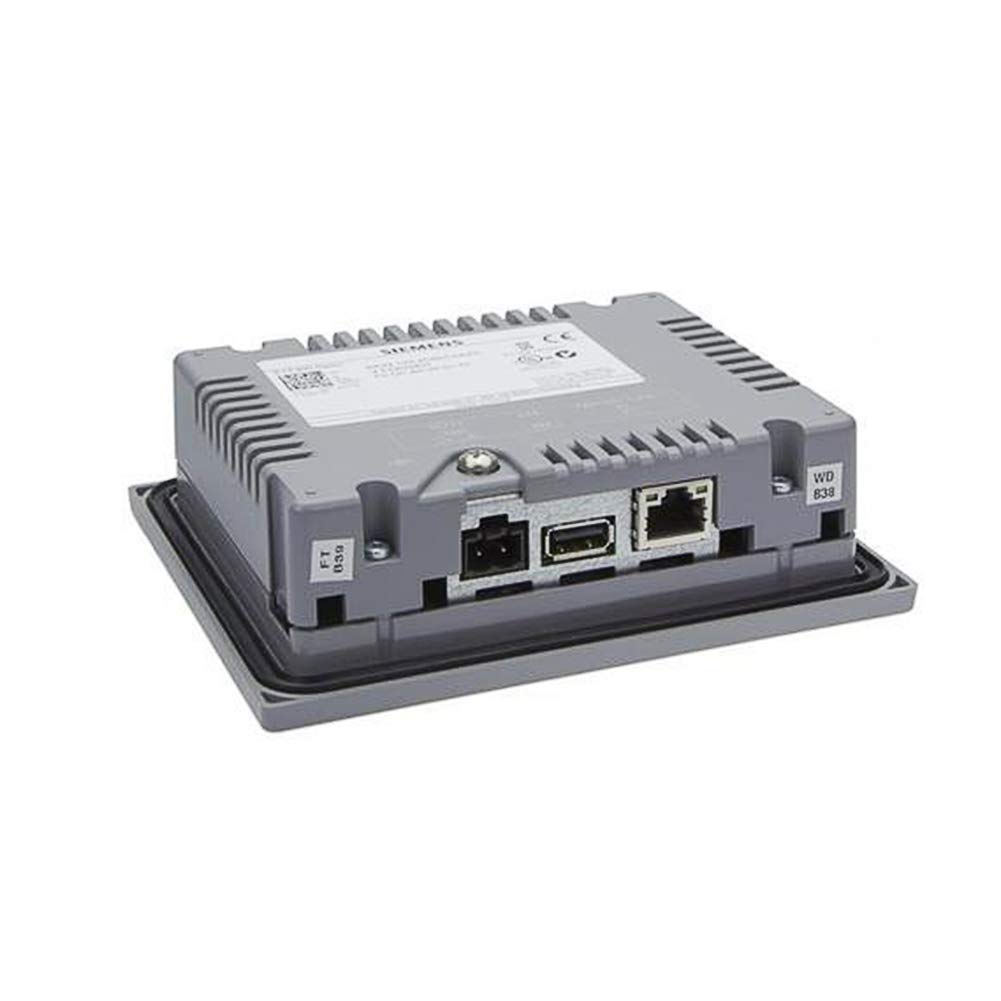

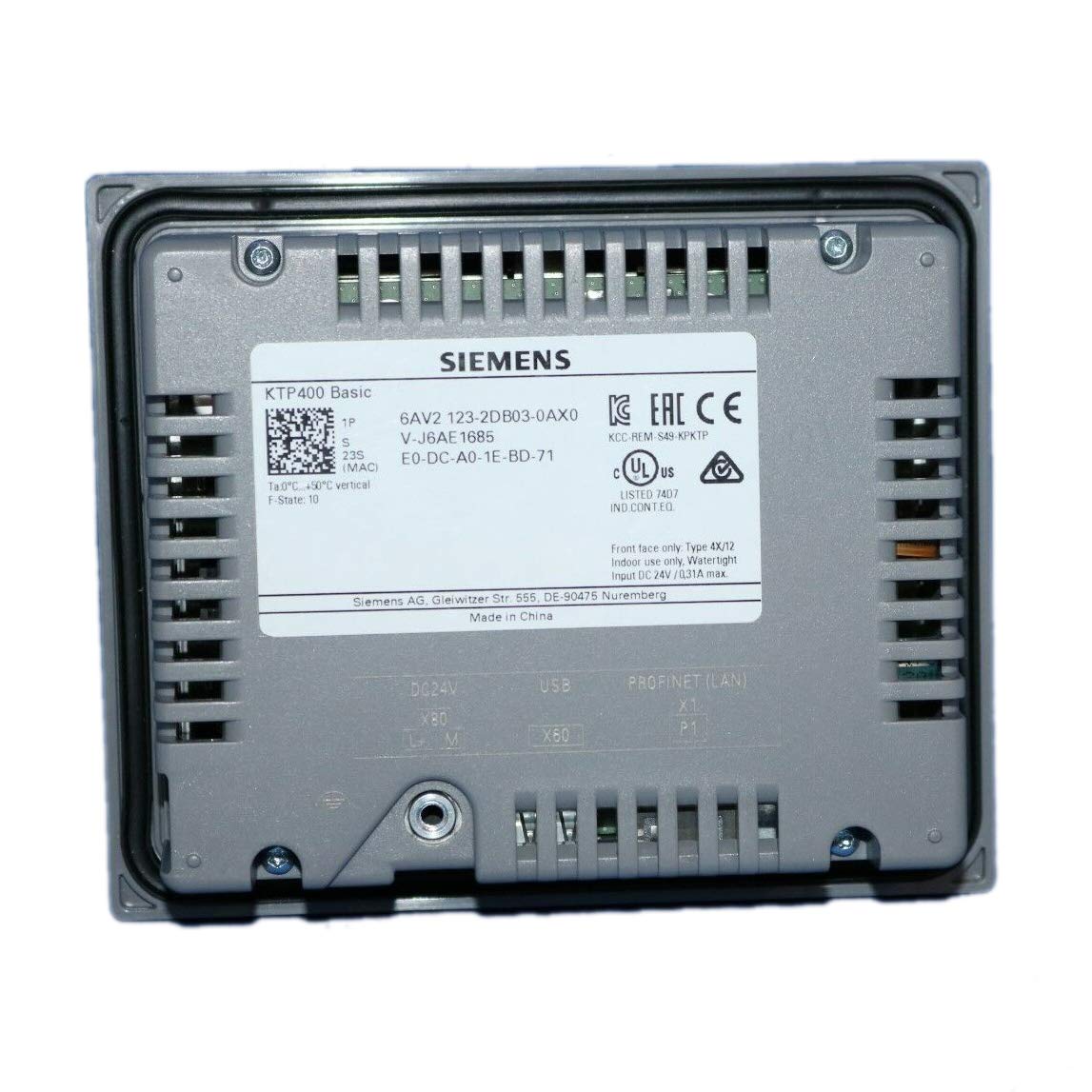

SIMATIC HMI, KTP400 Basic, Basic Panel, Key/touch operation, 4″ TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD Basic Panels are perfect for the cost-effective implementation of simple visualization tasks at machine level. Their basic features and functionality as well as an especially attractive price make them perfect entry-level devices.
Khi mua hàng tại TPNEWTECH, tất cả sản phẩm của chúng tôi được bảo hành 12 tháng. Luôn sẵn sàng hỗ trợ sửa chữa và bảo trì lắp đặt cho tất cả KH dù KH có mua nhiều hay mua ít.
Hỗ trợ sửa chữa tận nơi đối với KH ở khu vực nội thành TP.Hồ Chí Minh.
KH ở xa có thể gửi hàng thông qua các bên vận chuyển để được sửa chữa.
Chính sách vận chuyển
Tất cả KH khi mua hàng có địa chỉ nhận hàng ở khu vực TP.Hồ Chí Minh sẽ được miễn phí hoàn toàn chi phí giao hàng (thời gian giao hàng nội thành HCM từ 1-3 ngày làm việc).
Đối với các KH ngoại thành tùy vào số lượng đặt hàng lớn hay nhỏ chúng tôi sẽ linh động tối ưu chi phí giao hàng cho quý khách.
Hướng dẫn mua sản phẩm SIEMENS – 6AV2123-2DB03-0AX0
Để mua hàng quý khách có thể liên hệ với chúng tôi bằng cách gọi điện thoại hoặc Zalo
Thiết kế hiển thị: TFT widescreen display, LED backlighting
Kích thước màn hình: 4.3 inch
Độ rộng hiển thị: 95 mm
Độ cao hiển thị: 53.9 mm
Số màu hiển thị: 65 536
Kích thước (pixel)
● Độ phân giải ngang: 480 Pixel
● Độ phân giải dọc: 272 Pixel
Sáng nền
● Đèn nền MTBF (ở 25 °C): 20 000 h
● Đèn nền mờ: Yes
Điều khiển
Phông chữ bàn phím
● Các phím chức năng
— Số lượng phím chức năng: 4
— Số lượng phím chức năng có LED: 0
● Phím Led: No
● Phím hệ thống: No
● Bàn phím số: Yes; Onscreen keyboard
● Bàn phím chữ và số: Yes; Onscreen keyboard
Chức năng cảm ứng
● Màn hình cảm ứng: Yes
Trọng lượng
0.46 kg
Country of Origin
CN
SIMATIC HMI, KTP400 Basic
Basic Panel with key/touch operation
4" TFT display with 65536 colors
PROFINET interface
Configurable from WinCC Basic V13/ STEP 7 Basic V13
Contains open-source software provided free of charge on enclosed CD
Basic Panels perfect for cost-effective implementation of simple visualization tasks at machine level
Entry-level devices with basic features, functionality, and attractive price
Supporting protocol for SERCOS
FALSE
Additional software components, loadable
FALSE
Number of function buttons, programmable
4
With recipes
TRUE
Certified for UL hazardous location class II
-
Supporting protocol for AS-Interface Safety at Work
FALSE
Number of online languages
10
Number of pixels, vertical
272
Number of pixels, horizontal
480
Certified for UL hazardous location group E (metal dusts)
-
Number of HW-interfaces RS-485
0
Certified for UL hazardous location group C (ethylene)
-
With numeric keyboard
TRUE
Number of password levels
50
Radio standard UMTS
FALSE
Voltage type (supply voltage)
EV000461
Radio standard Bluetooth
FALSE
Operating temperature
50
Suitable for safety functions
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for Modbus
TRUE
Built-in depth
34.9
Certified for UL hazardous location class III
-
Supply voltage AC 60 Hz
-
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
FALSE
Certified for UL hazardous location division 2
-
Supporting protocol for PROFINET CBA
FALSE
Supply voltage DC
28.8
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for other bus systems
TRUE
With printer output
FALSE
Supporting protocol for CAN
FALSE
Radio standard WLAN 802.11
FALSE
Number of HW-interfaces USB
1
Certified for UL hazardous location group G (non-conductive dusts)
-
Number of HW-interfaces wireless
0
Process default value (input) possible
TRUE
Certified for UL hazardous location group B (hydrogen)
-
Degree of protection (NEMA), front side
-
Supporting protocol for Foundation Fieldbus
FALSE
With message system (incl. buffer and confirmation)
TRUE
Wall mounting/direct mounting
FALSE
Number of colours of the display
65536
Number of system buttons
0
Supporting protocol for KNX
FALSE
With SW interfaces
FALSE
Degree of protection (IP), front side
EV006421
Screen diagonal
4.3
Supporting protocol for SafetyBUS p
FALSE
Height of the front
116
Number of HW-interfaces RS-422
0
Number of HW-interfaces industrial Ethernet
1
Supporting protocol for TCP/IP
TRUE
With message indication
TRUE
Number of buttons with LED
0
Number of grey-scales/blue-scales of display
0
Supporting protocol for EtherCAT
-
Supply voltage DC
19.2
Width of the front
140
Number of HW-interfaces RS-232
0
Supply voltage AC 50 Hz
-
Useful project memory/user memory
10000
Supporting protocol for ASI
FALSE
Supporting protocol for Data-Highway
FALSE
Supporting protocol for INTERBUS-Safety
FALSE
Supporting protocol for EtherNet/IP
TRUE
Colour display
TRUE
Type of display
-
Supporting protocol for PROFINET IO
FALSE
Certified for UL hazardous location class I
-
Operating temperature
0
Process value representation (output) possible
TRUE
Number of interfaces PROFINET
1
Radio standard GPRS
FALSE
Number of HW-interfaces serial TTY
0
Radio standard GSM
FALSE
With alpha numeric keyboard
TRUE
Certified for UL hazardous location group F (carbonaceous dusts)
-
Number of HW-interfaces other
0
Number of HW-interfaces parallel
0
Certified for UL hazardous location division 1
-
Touch technology
EV013187
Supporting protocol for SUCONET
FALSE
Power consumption
-
Certified for UL hazardous location group D (propane)
-
Certified for UL hazardous location group A (acetylene)
-
Supporting protocol for PROFIBUS
FALSE
IO link master
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for INTERBUS
FALSE
HỖ TRỢ KỸ THUẬT
Đội ngũ kỹ thuật của chúng tôi luôn sẵn sàng tư vấn và hướng dẫn quý khách sửa chữa bảo trì hay bất cứ điều gì liên quan đến sản phẩm.
Thời gian bảo hành12 tháng THEO TIÊU CHUẨN NHÀ SẢN XUẤT
Áp dụng cho tất cả các sản phẩm đang kinh doanh tại www.tpnewtech.com
Chính sách đổi trả:
Khách hàng có quyền ĐỔI sản phẩm khác hoặc TRẢ sản phẩm và lấy lại tiền với chi tiết như sau:
+ Đổi trả sản phẩm bị lỗi (Do nhà sản xuất ): sau 24 giờ kề từ khi ký xác nhận trong “ Biên bản giao nhận” : ĐỔI TRẢ MIỄN PHÍ HOẶC HOÀN TIỀN ( không bao gồm phí vận chuyển )
+ Sản phẩm “Không bị lỗi” hoặc “Bị lỗi” do NGƯỜI SỬ DỤNG: Không áp dụng đổi trả hoặc khách hàng chịu chi phí sửa chữa.
Điều kiện đổi trả:
– Còn hóa đơn mua hàng
– Còn đầy đủ hộp sản phẩm
– Còn đầy đủ phiếu bảo hành (nếu có) và phụ kiện đi kèm
– Quà khuyến mãi có giá trị (nếu có)
– Trường hợp thiếu các điều kiện trên: thu phí theo qui định. Ngoài ra, KHÔNG thu thêm bất kỳ phí nào khác
– Tem bảo hành còn nguyên: không bị rách hoặc mờ
