6AG1123-2JB03-2AX0 SIPLUS HMI KTP900 Màu cơ bản PN -20 … +50 °C với lớp phủ bảo vệ dựa trên 6AV2123-2JB03-0AX0 Siemens

70,666,000

--- Giá chưa bao gồm VAT ----

Giá có thể thay đổi, vui lòng liên hệ trước khi đặt hàng  (Luôn có giá tốt khi mua số lượng nhiều)

Bảo hành 12 tháng khi mua tại TPNewtech.

Thời gian vận chuyển:
Thời gian giao hàng ước tính từ 1 - 5 ngày trên toàn quốc.

Luôn có chương trình hỗ trợ dự án công trình

-> Hãy Liên hệ ngay cho chúng tôi



Chi Tiết Sản Phẩm

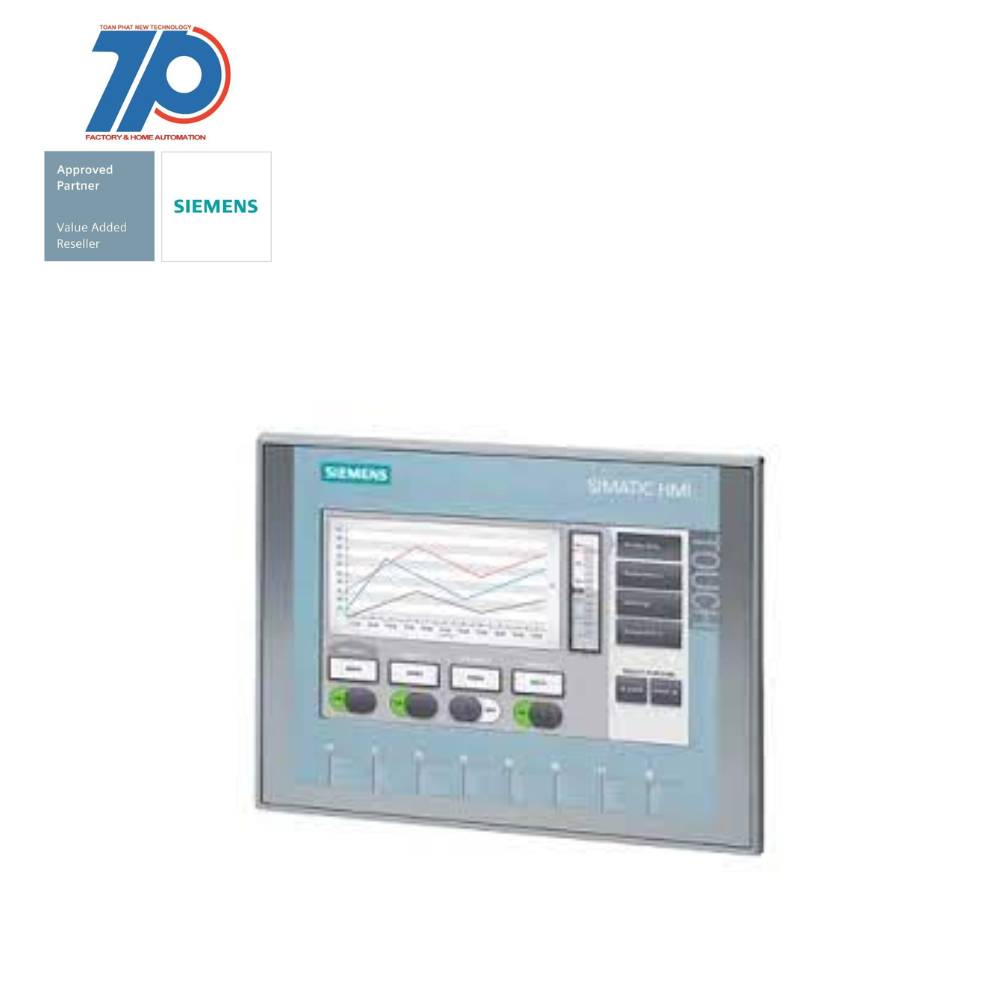

SIPLUS HMI KTP900 Basic Color PN cho cấu hình cá nhân hóa.

Thông số kỹ thuật:

  • Kích thước màn hình: 9 inch TFT

  • Độ phân giải: 65536 màu

  • Phạm vi nhiệt độ hoạt động: -20…+50 °C

  • Công nghệ giao tiếp: PROFINET

  • Các tùy chọn kích thước màn hình: 4″, 7″, 9″ hoặc 12″

  • Chức năng thao tác: Kết hợp nút nhấn/màn hình cảm ứng và hỗ trợ điều khiển bằng cử chỉ

  • Độ sáng: Có thể điều chỉnh lên đến 100%

  • Giao diện USB: Hỗ trợ kết nối bàn phím, chuột hoặc máy quét mã vạch

  • Chống chịu: SIPLUS Extreme với lớp phủ bảo vệ cho điều kiện khắc nghiệt

Lợi ích cho khách hàng:

  • Giá cả hấp dẫn cho việc triển khai giải pháp HMI đơn giản.

  • Phù hợp với các máy móc và nhà máy nhỏ.

  • Cung cấp giao diện người dùng tiên tiến với khả năng sử dụng dễ dàng.

  • Các tùy chọn lưu trữ và sao lưu dữ liệu đơn giản qua USB.

  • Bảo vệ tối đa trong các điều kiện môi trường khắc nghiệt, kể cả độ ẩm cao và chất ăn mòn.

Additional Information

Support

Technical Data

Manuals / Links

####

FEATUREVALUE

Supporting protocol for TCP/IPtrue
Supporting protocol for PROFINET IOfalse
Radio standard Bluetoothfalse
Supply voltage DC19.2 V
Supporting protocol for SERCOSfalse
With recipestrue
Number of password levels50
Operating temperature50 °C
Supporting protocol for SUCONETfalse
Wall mounting/direct mountingfalse
Height of the front182 mm
Operating temperature-20 °C
Number of interfaces PROFINET1
Number of system buttons0
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for KNXfalse
Number of HW-interfaces USB1
Number of function buttons, programmable8
Number of colours of the display65536
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Colour displaytrue
Process default value (input) possibletrue
Number of HW-interfaces RS-4850
Supporting protocol for PROFIBUSfalse
Supporting protocol for other bus systemstrue
Supporting protocol for DeviceNetfalse
Supporting protocol for LONfalse
With numeric keyboardtrue
Supporting protocol for PROFIsafefalse
IO link masterfalse
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-2320
With message system (incl. buffer and confirmation)true
With SW interfacesfalse
Screen diagonal9 inch
Degree of protection (IP), front sideIP65
Supporting protocol for CANfalse
With message indicationtrue
Supporting protocol for AS-Interface Safety at Workfalse
With printer outputfalse
Number of HW-interfaces wireless0
Process value representation (output) possibletrue
Number of pixels, vertical480
Number of buttons with LED0
Useful project memory/user memory10000 kByte
Number of HW-interfaces other0
Width of the front267 mm
Number of pixels, horizontal800
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-4220
Rail mounting possiblefalse
Supporting protocol for Data-Highwayfalse
Radio standard GPRSfalse
Number of grey-scales/blue-scales of display0
Radio standard GSMfalse
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces serial TTY0
Radio standard WLAN 802.11false
Supporting protocol for EtherNet/IPtrue
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
With alpha numeric keyboardtrue
Voltage type (supply voltage)DC
Supporting protocol for PROFINET CBAfalse
Number of online languages10
Number of HW-interfaces parallel0
Built-in depth55 mm
Radio standard UMTSfalse
Additional software components, loadablefalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue

    SIPLUS HMI KTP900 Basic Color PN

    SIPLUS HMI KTP900 Basic Color PN is a rugged human-machine interface (HMI) device designed for use in harsh ambient conditions. It is based on the 6AV2123-2JB03-0AX0 model and features a conformal coating that protects the internal components.

    The device operates in a temperature range of -20°C to +50°C, making it suitable for use in extreme environments. It features a 9″ TFT display with 65536 colors, providing clear and vibrant visuals.

    The PROFINET interface allows for seamless integration with other industrial automation systems, enabling efficient communication and control.

    SIMATIC HMI Basic Panels of the 2nd Generation – the beauty of simplicity!

    SIMATIC HMI Basic Panels of the 2nd Generation are ideal for cost-effective implementation of simple visualization tasks at the machine level. These entry-level devices are perfectly suited for small machines and plants, and they seamlessly integrate with SIMATIC S7-1200 Basic Controllers.

    The Basic Panels are available in 4″, 7″, 9″, or 12″ widescreen displays, offering a range of options to suit different requirements. The displays support both pushbutton and touch-screen operation, and they also support gesture control for enhanced user interaction.

    These high-resolution devices with 64,000 color displays can be installed upright and offer flexible brightness control, allowing the user to adjust the brightness up to 100%.

    Innovative Operator Interface

    The SIPLUS HMI KTP900 Basic Color PN features an innovative operator interface with improved usability. It offers new controls and graphics, providing a diverse range of options for efficient operation and visualization.

    The device is equipped with a USB interface, enabling easy connection of a keyboard, mouse, or barcode scanner. It also supports simple archiving, as well as backup and restoration of data directly from a USB flash drive.

    SIPLUS Extreme Devices

    For extremely challenging tasks in harsh ambient conditions, SIPLUS extreme devices are the equipment of choice. The conformal coating on the SIPLUS HMI KTP900 Basic Color PN protects the internal components from 100% relative humidity, condensation, corrosive substances, and gases.

Trọng lượng1.13 kg
