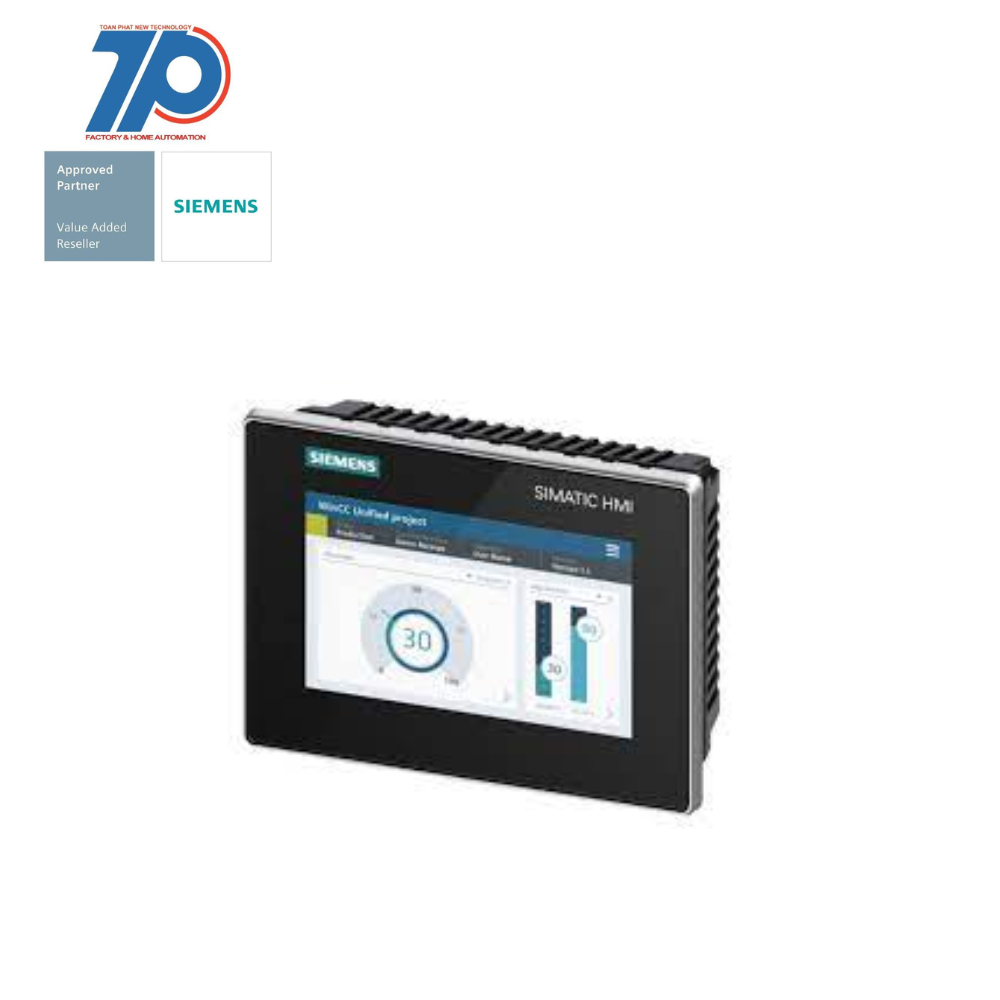

Simatic HMI MTP700 cho cấu hình cá nhân hóa.
Thông số kỹ thuật:
Màn hình cảm ứng TFT 7 inch, 16 triệu màu
Giao diện PROFINET cho kết nối linh hoạt
Cấu hình từ WinCC Unified Comfort V16
Phần mềm mã nguồn mở được cung cấp miễn phí
Công nghệ cảm ứng đa điểm hiện đại
Kích thước từ 7 đến 22 inch
Hiệu suất cao hơn với giới hạn hệ thống tăng gấp đôi hoặc gấp ba
Chức năng Edge tích hợp để mở rộng khả năng
Hệ điều hành độc quyền đảm bảo an ninh CNTT
Hai phiên bản thiết kế: tiêu chuẩn và trung tính
Lợi ích cho khách hàng:
Thao tác vận hành sáng tạo nhờ phần mềm trực quan hóa mới
Cung cấp sự thoải mái vận hành tối đa cho người dùng
Dễ dàng triển khai các ứng dụng quy mô lớn trên hệ thống bảng điều khiển
Bảo mật tốt hơn với khả năng tắt chức năng không cần thiết
Thiết kế đa dạng phù hợp với nhu cầu người dùng
Additional Information
Support | Technical Data | Manuals / Links
|
####
| FEATURE | VALUE |
| Operating temperature | 50 °C |
| Number of HW-interfaces industrial Ethernet | 2 |
| Supporting protocol for PROFIsafe | false |
| Number of colours of the display | 16777216 |
| Process value representation (output) possible | true |
| Number of pixels, vertical | 480 |
| Rail mounting possible | false |
| Type of display | TFT |
| Supporting protocol for TCP/IP | true |
| Supply voltage DC | 28.8 V |
| With message system (incl. buffer and confirmation) | true |
| Width of the front | 214 mm |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for CAN | false |
| Radio standard WLAN 802.11 | false |
| Radio standard UMTS | false |
| Supporting protocol for DeviceNet | false |
| Wall mounting/direct mounting | false |
| Radio standard GSM | false |
| IO link master | false |
| Supporting protocol for Modbus | true |
| With recipes | true |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for INTERBUS | false |
| Additional software components, loadable | true |
| With numeric keyboard | true |
| Height of the front | 158 mm |
| Supporting protocol for KNX | false |
| Suitable for safety functions | false |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| With printer output | true |
| Radio standard Bluetooth | false |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for Foundation Fieldbus | false |
| Colour display | true |
| Process default value (input) possible | true |
| Supporting protocol for SafetyBUS p | false |
| Number of online languages | 32 |
| Built-in depth | 64 mm |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Operating temperature | 0 °C |
| Radio standard GPRS | false |
| Supporting protocol for PROFINET CBA | false |
| Number of pixels, horizontal | 800 |
| Supporting protocol for Data-Highway | false |
| With message indication | true |
| Screen diagonal | 7 inch |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFINET IO | false |
| With alpha numeric keyboard | true |
| Supporting protocol for LON | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for ASI | false |
| Number of HW-interfaces USB | 4 |
| Supporting protocol for other bus systems | true |
| Supply voltage DC | 19.2 V |
